Brother Loading system
SPEEDIO exclusive option :

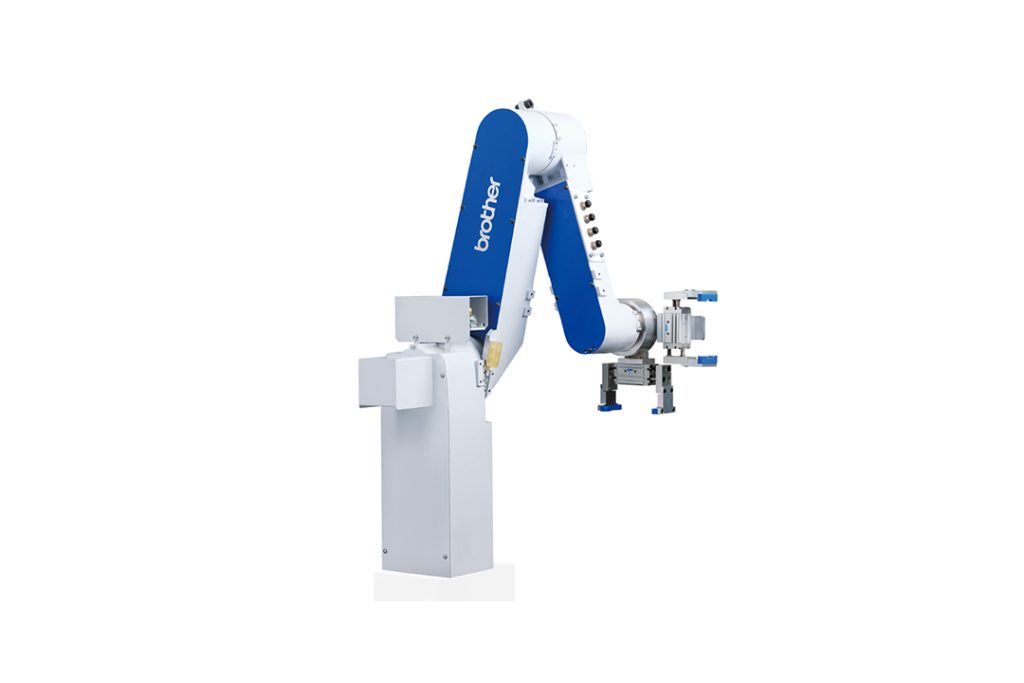

Loading system BV7-870Ad
Specialized for attaching and detaching workpieces
Compact installation on the side
Controller built into the control panel
BV7-870Ad Seminar Video
1. Development concept
(3 minutes 17 seconds)
2. Features of BV7-870Ad (4 minutes 32 seconds)
3. Case studies
(5 minutes 22 seconds)
(5 minutes 22 seconds)
Features of the BV7-870Ad loading system
From jig-based composite machining to multi-sided machining
Process consolidation using mass-production composite machining centers
Equipped with a tilting rotary table with a turning spindle function, this single machine can handle everything
from combined turning and machining to multi-faceted machining .

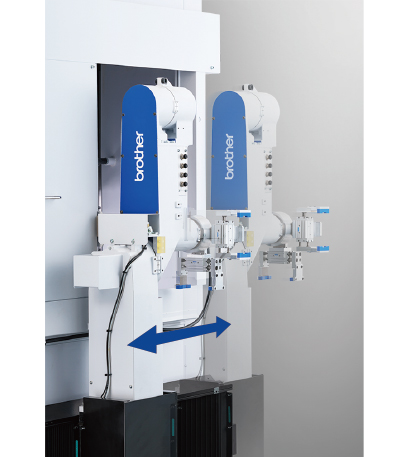

SPEEDIO Integrated with this unit

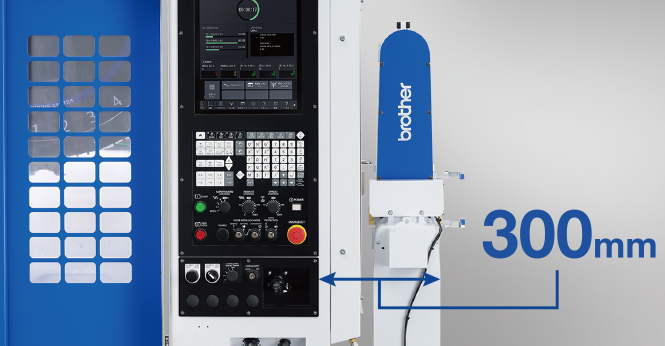

Since it is installed integrally with the main unit, it can be installed in a space-saving manner.
*: The image above is the "S500Xd1".
Ease of use with limited functionality

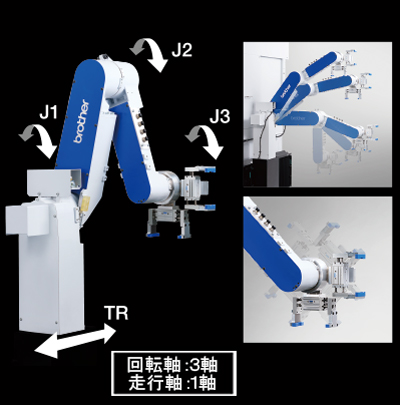

It has an easy-to-use 4-axis vertical multi-joint specification specialized for attaching and detaching workpieces.
Ease of use with limited functionality
Since the controller is built-in, it saves space and eliminates the hassle of connecting wires, etc. - No wiring required to NC - NC and signal internally connected - Side door as standard equipment The TR axis of the loading system automatically opens and closes the side door.
Specification

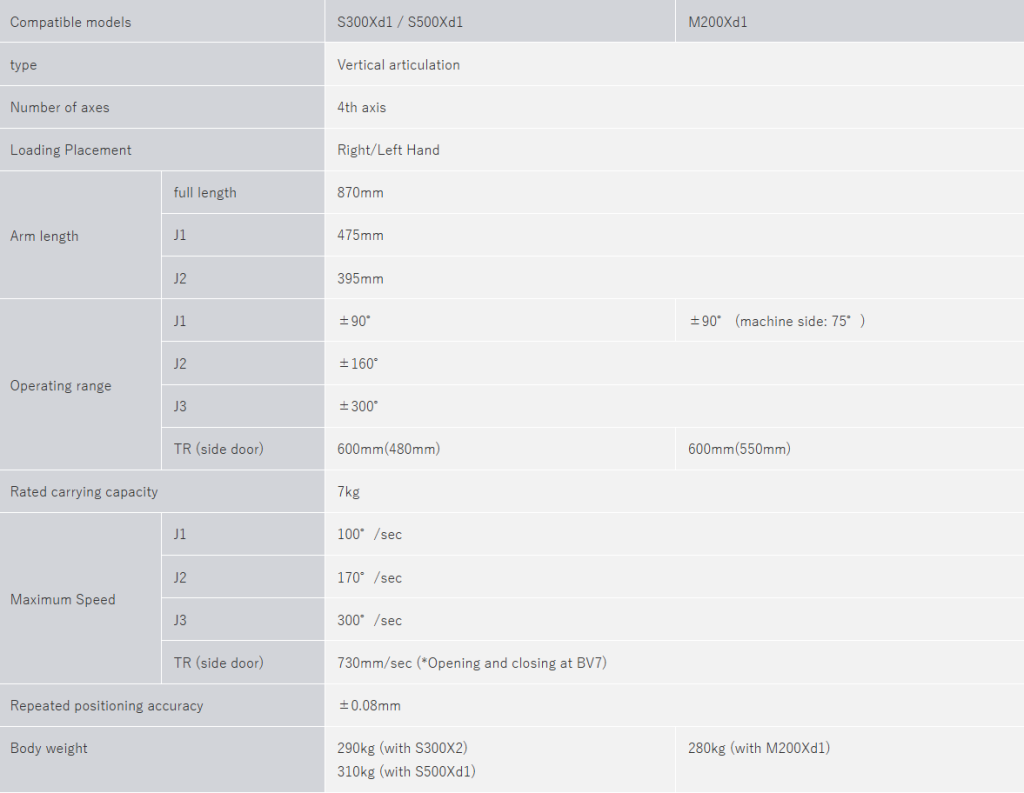

Loading system specifications
*:The measurement method is based on ISO9283 (1998) and Brother standards.
Please contact us for details.

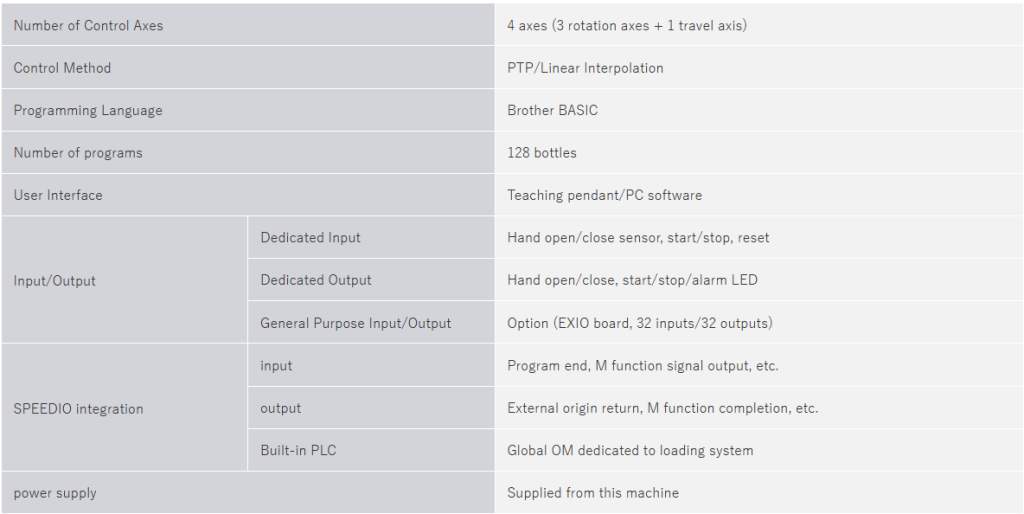

Loading system specifications
