Double Column MCR Series

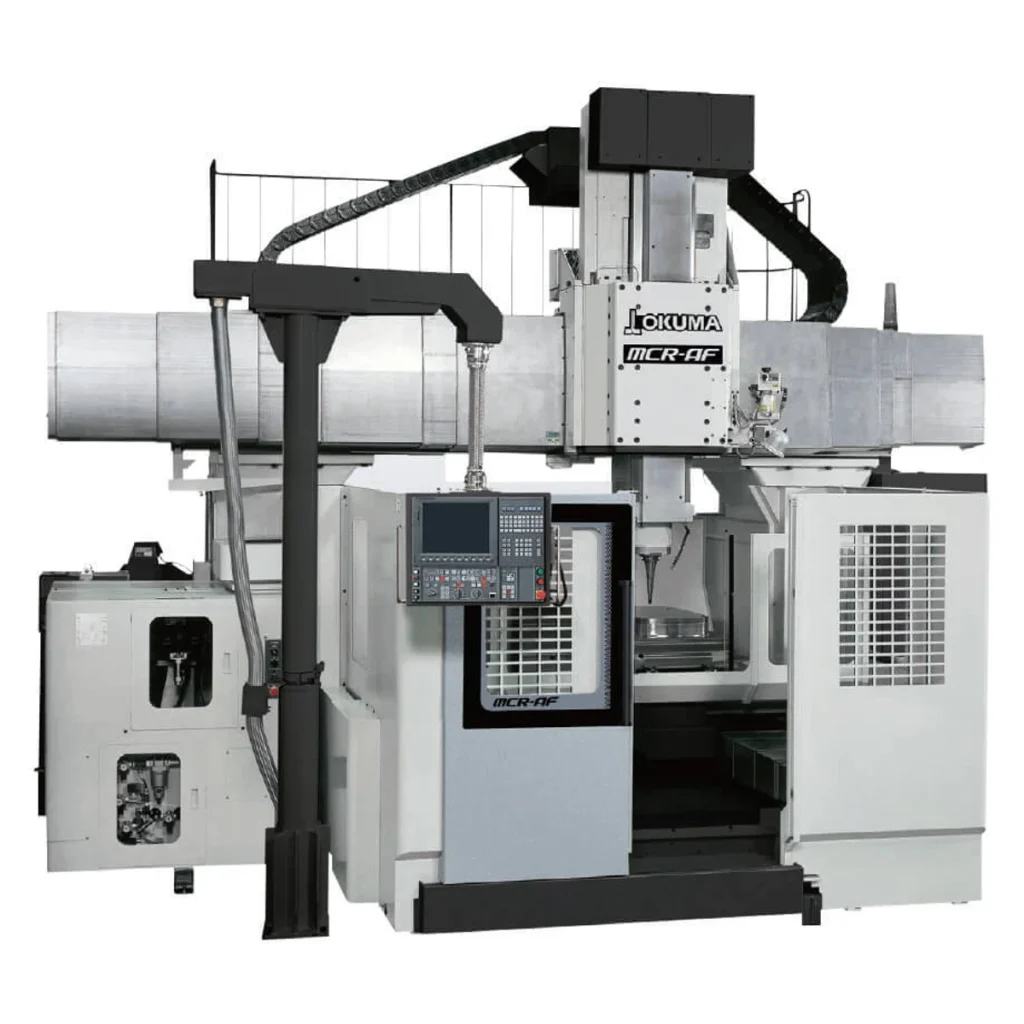

MCR-AF
Highlighted Specs
Width Between Columns (mm)
2,600
Table Travel (X-Axis) (mm)
2,600
Spindle Range (min⁻¹)
8,000 [12,000, 15,000, 25,000]
Spindle Power (kW)
26/22 [37/26, 22/18.5, 30/22, 15/11]
Rapid Traverse Rate X-Y/Z (m/min)
20 / 10
Magazine Capacity
24 [32, 48, 50, 72, 100]
MCR-A5CII
Highlighted Specs
Width Between Columns (mm)
2,150 – 3,650
Table Travel (X-Axis) (mm)
3,050 – 12,050
Spindle Range (min⁻¹)
4,000 [6,000 & 10,000]
Spindle Power (kW (hp))
VAC 26/22 (35/30 hp) (30 min/cont) [VAC 30/22 (40/30) (30 min/cont)]
Rapid Traverse Rate (m/min (fpm))
X: 30, Y: 30, Z: 20 (X: 98.43, Y: 98.43, Z: 65.62
Magazine Capacity
50 [OPT: 80, 100, 120, 180]

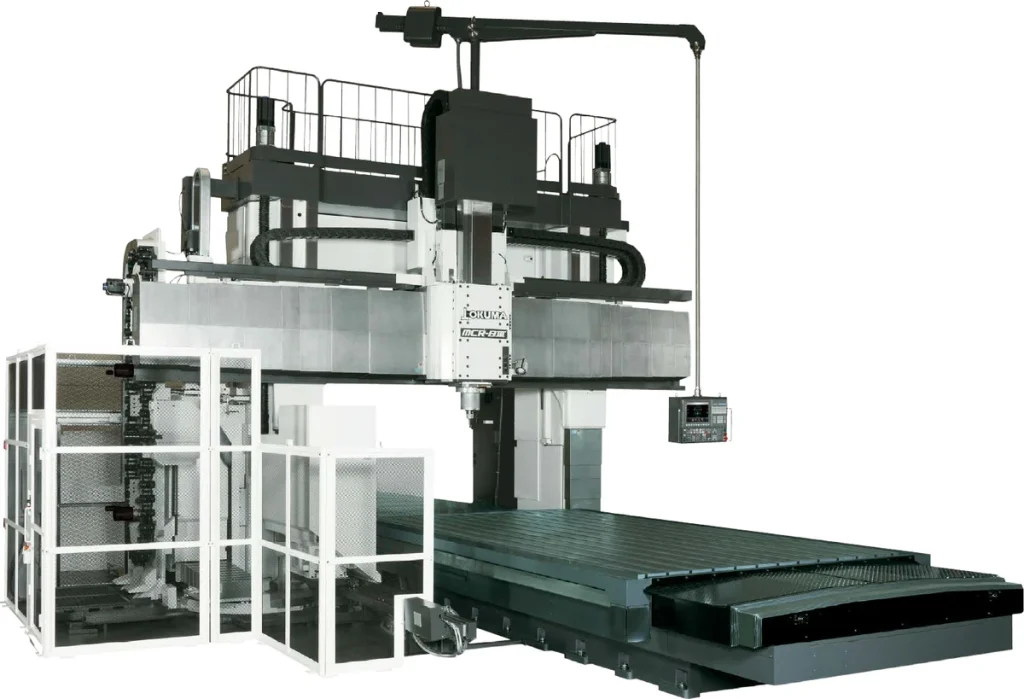

MCR-BIII
Highlighted Specs
Width Between Columns (mm)
2,050 [2,550; 3,050; 3,550]
Table Travel (X-Axis) (mm)
3,000 [4,000 – 12,000]
Spindle Range (min⁻¹)
10~4,000 [10~3,600; 10~6,000; 30~8,000; 30~10,000]
Spindle Power (hp)
30/22 [4/37]
Rapid Traverse Rate (ipm)
15 / 20 / 15
Magazine Capacity
32 [50, 72, 100, 120, 180]

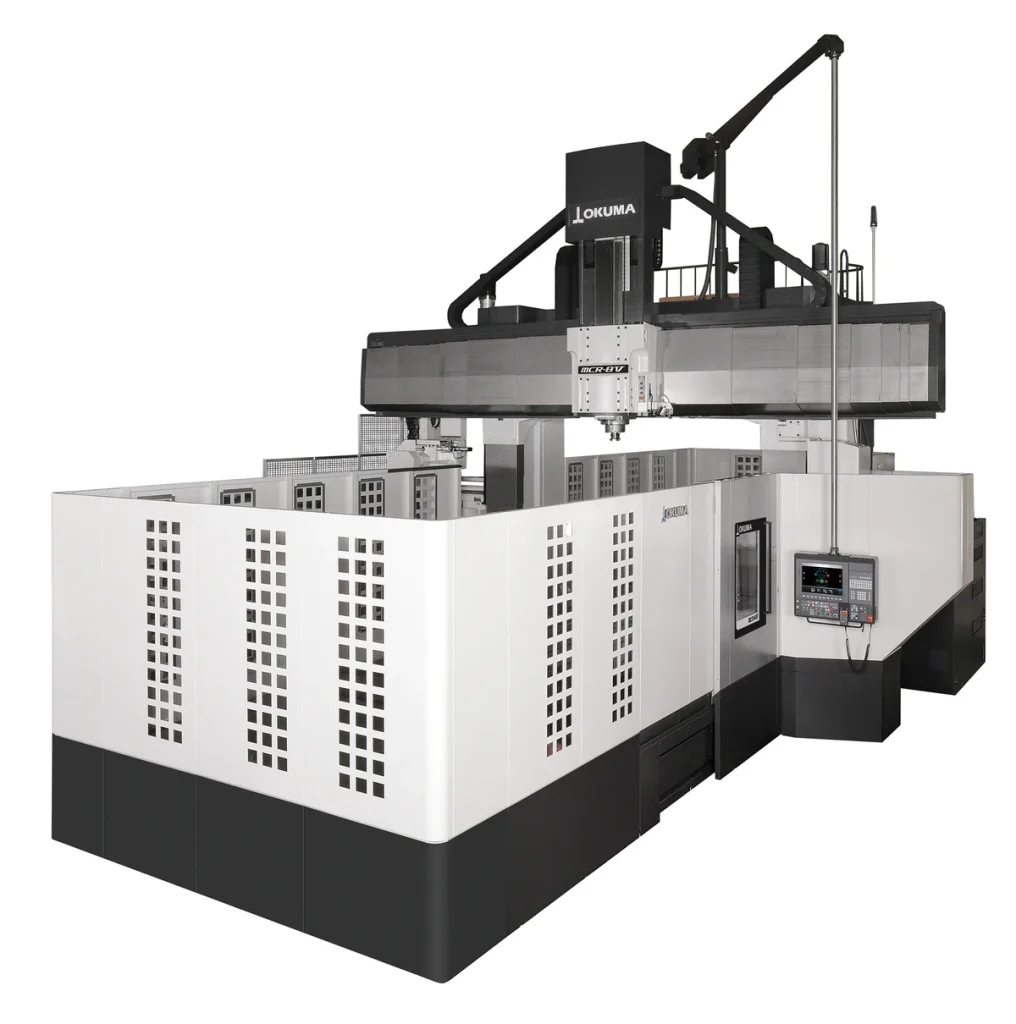

MCR-BV
Highlighted Specs
Width Between Columns (mm)
2,650 [3,150; 3,650]
Table Travel (X-Axis) (mm)
4,200 [5,200 – 12,200]
Spindle Range (min⁻¹)
30~6,000
Spindle Power (kW)
43/37/30 [26/22]
Rapid Traverse Rate (ipm)
30/32/15
Magazine Capacity
50 [80, 100, 120, 180]

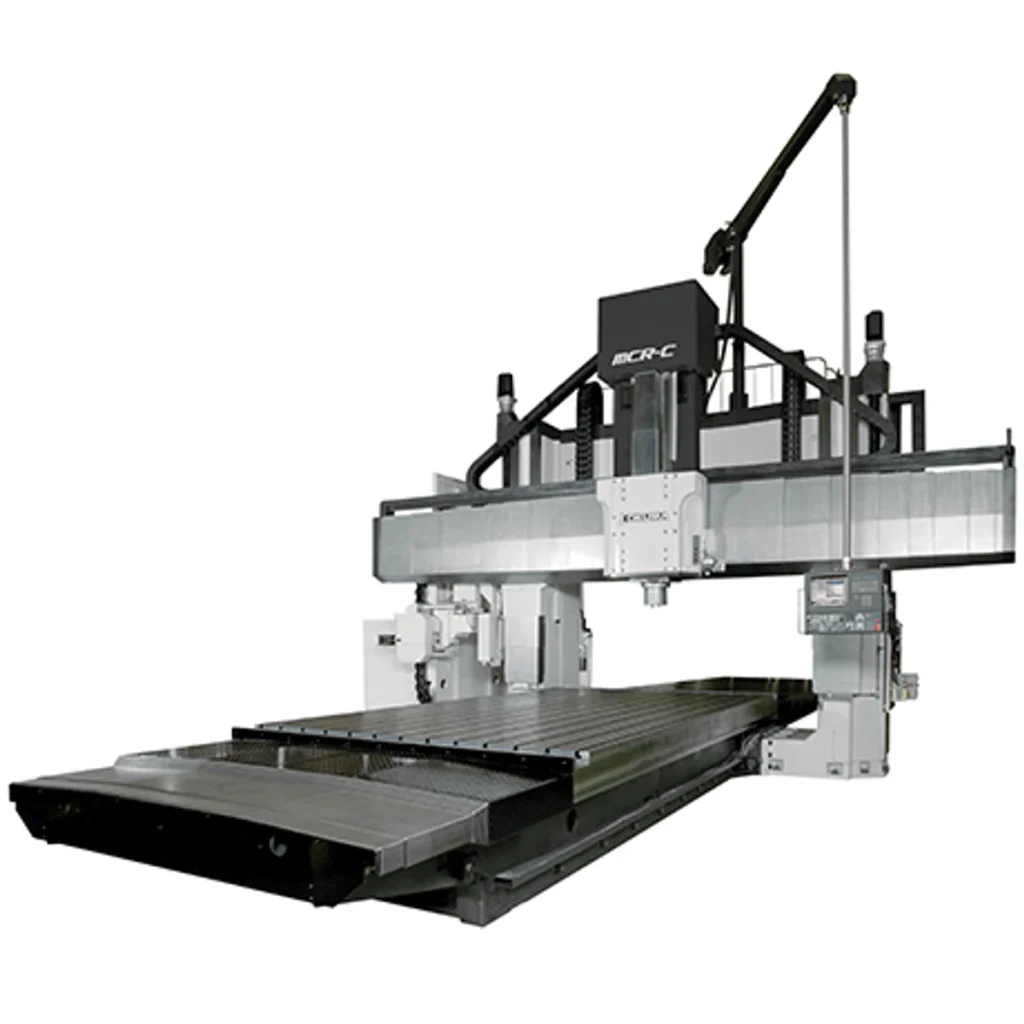

MCR-C
Highlighted Specs
Width Between Columns (mm)
2,650 [3,150; 3,650]
Table Travel (X-Axis) (mm)
4,200 [5,200 – 10,200]
Spindle Range (min⁻¹)
10~4,000 [10~6,000]
Spindle Power (kW)
45/37 [37/30]
Rapid Traverse Rate-X:Y (m/min)
24
Rapid Traverse Rate-Z (m/min)
15
Magazine Capacity
50 [80, 100, 120, 180]

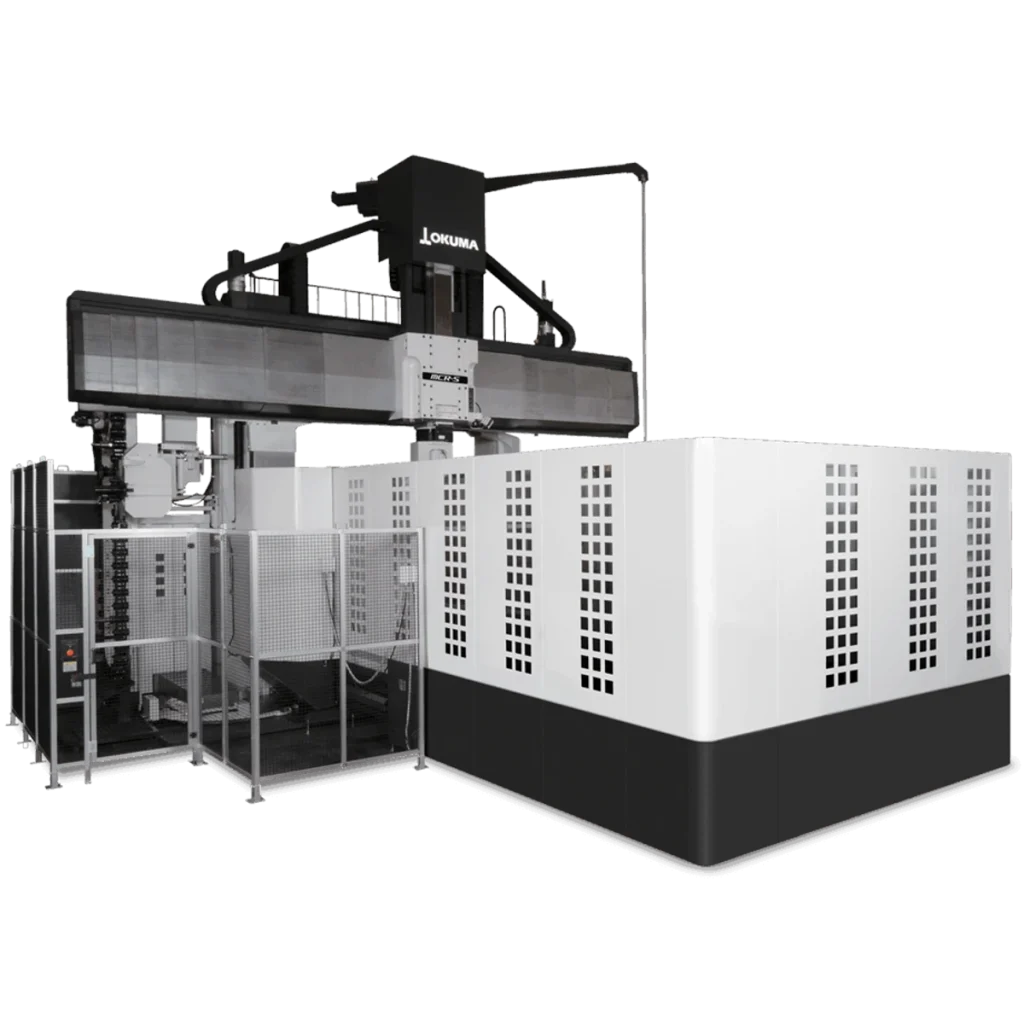

MCR-S
Highlighted Specs
Width Between Columns (mm)
2,650 [3,150]
Table Travel (X-Axis) (mm)
4,200 [5,200; 6,700]
Spindle Range (min⁻¹)
30~10,000
Spindle Power (kW)
26/22
Rapid Traverse Rate-X (m/min)
30
Rapid Traverse Rate-Y (m/min)
32
Rapid Traverse Rate-Z (m/min)
15
Magazine Capacity
50 [80, 100, 120, 180]

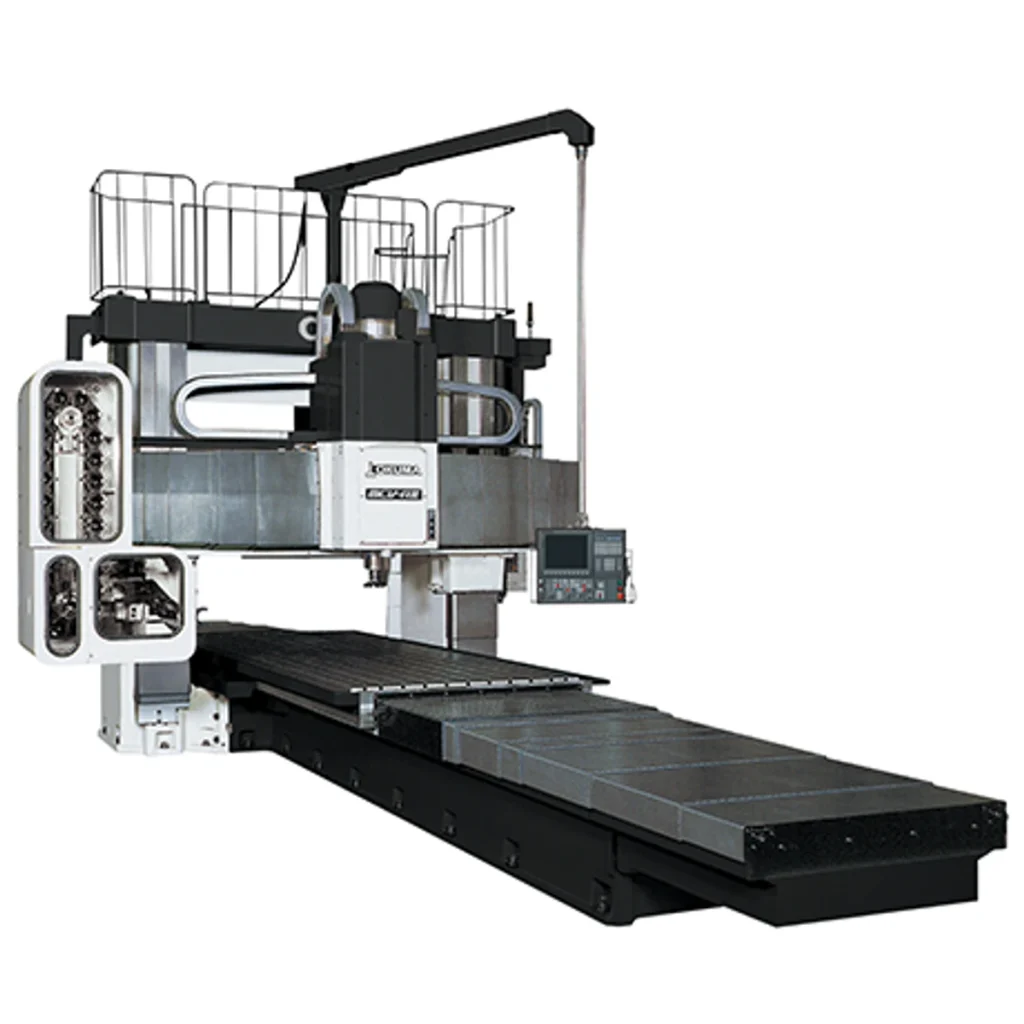

MCV-AII
Highlighted Specs
Width Between Columns (mm)
1,650 [2,050]
Table Travel (X-Axis) (mm)
2,000 [3,000; 4,000; 5,000]
Spindle Range (min⁻¹)
4,000 [6,000]
Spindle Power (kW)
22/18.5 [22/15]
Rapid Traverse Rate X-Y/Z (m/min)
20 / 10
Magazine Capacity
24 [50 72, 100]
