Double Column VTR Series

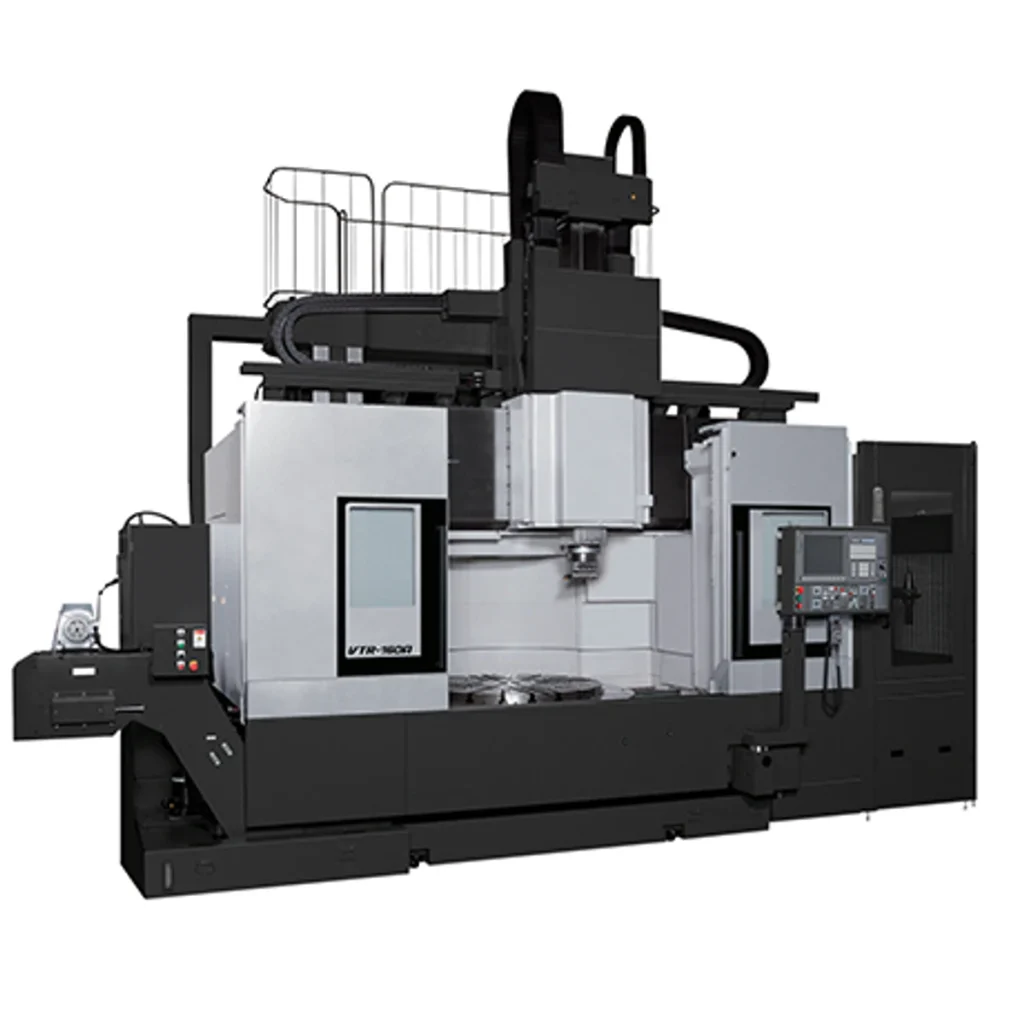

VTR-160A
Highlighted Specs
Max Turning Diameter (mm)
Ø1,600
Max Turning Length (mm)
1,200 [1,600]
Z-Axis Travel [RAM] (mm)
900 [1,250]
W-Axis [Elevating Rail] (mm)
600 [800]
Table Size (mm)
Ø1,250
Max Load (kg)
10,000
Spindle Speed (min⁻¹ (rpm))
1~400
Spindle Power (kW)
45/37 [75/60]
Torque (kNm)
17.1/14 [28.5/22.8]
C-Axis
360 (minimum control angle 0.001°)
VTR-350A
Highlighted Specs
Swing, Max Turn (mm)
Ø3,500
Max Turning Length (mm)
1,600 [2,000; 2,400]
Z-Axis Travel [RAM] (mm)
1,250 [1,500]
W-Axis [Elevating Rail] (mm)
800 [1,000; 1,200]
Table Size (mm)
Ø3,000
Max Load (kg)
20,000
Spindle Speed (min⁻¹ (rpm))
1~160
Spindle Power (kW)
55/45
Torque (kNm)
42.5/34.8 [58.0/46.4]
C-Axis
360 (minimum control angle: 0.001)
