Lathe LB Series

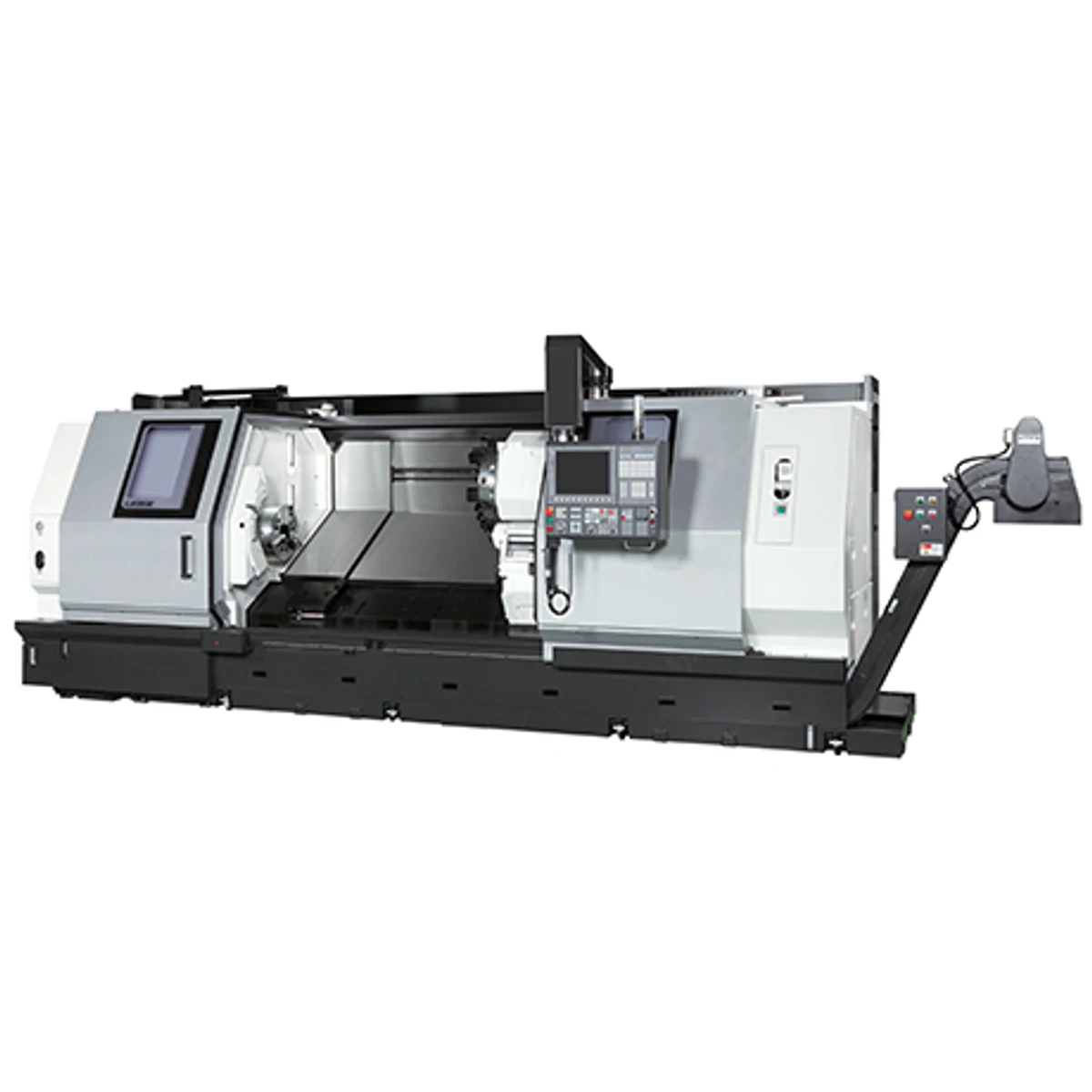

LB35III
Highlighted Specs
Max Turning Diameter (mm)
Ø460
Max Turning Length (mm)
600 [850; 1,500; 2,000]
Spindle Nose Type
A2-8 [A2-11, A2-15]
Speed Range (min⁻¹)
14~3,200 [12~2,800; 40~1,400]
Standard Power (kW)
30/22 [37/30]
Rapid Traverse X/Z (m/min)
15 / 20 [C: 100 rpm]

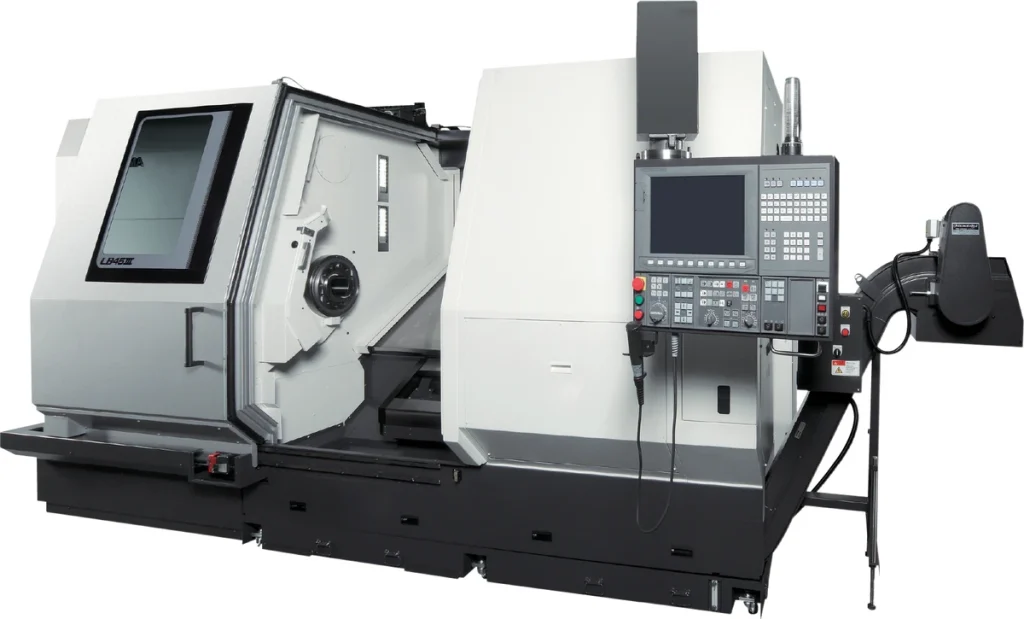

LB45III
Highlighted Specs
Max Turning Diameter (mm)
Ø660 [Ø640]
Max Turning Length (mm)
750 [1,000; 2,000; 3,000; 4,000]
Spindle Nose Type
A2-11 [A2-20]
Speed Range (min⁻¹)
12~2,800 [10~2,400; 31~900]
Standard Power (kW)
37/30
Rapid Traverse X/Z (m/min)
15 / 20 [C: 100 rpm]
Lathe LB EX Series

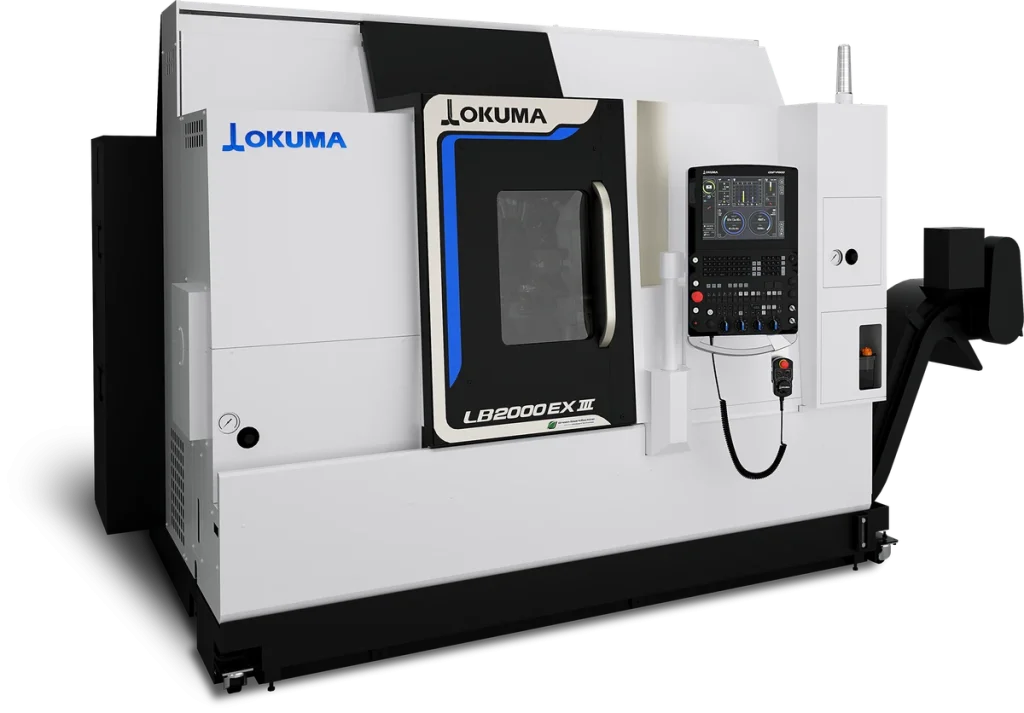

LB2000 EX III
Highlighted Specs
Max machining diameter (mm)
430
Max machining length (mm)
300
Spindle nose type
STD Ø140
Speed Range (min⁻¹)
45~6,000
Rapid traverse X-Z (m/min)
25/30
Standard Power (kW)
11/7.5

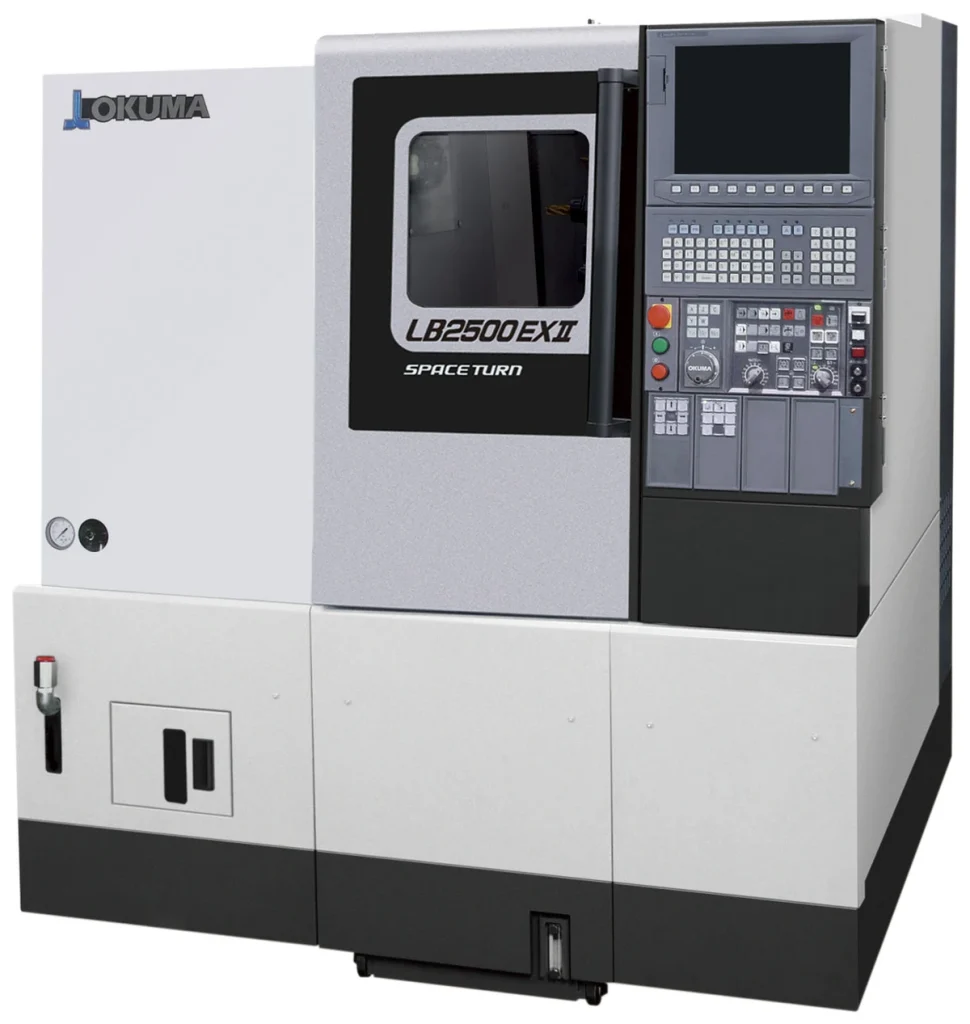

LB2500 EX II
Highlighted Specs
Max turning diameter (mm)
410
Max turning length (mm)
150
Spindle nose type
JIS A2-6
Speed Range (min⁻¹)
45~5,000
Rapid traverse X-Z (m/min)
25/30
Standard Power (kW)
22/15

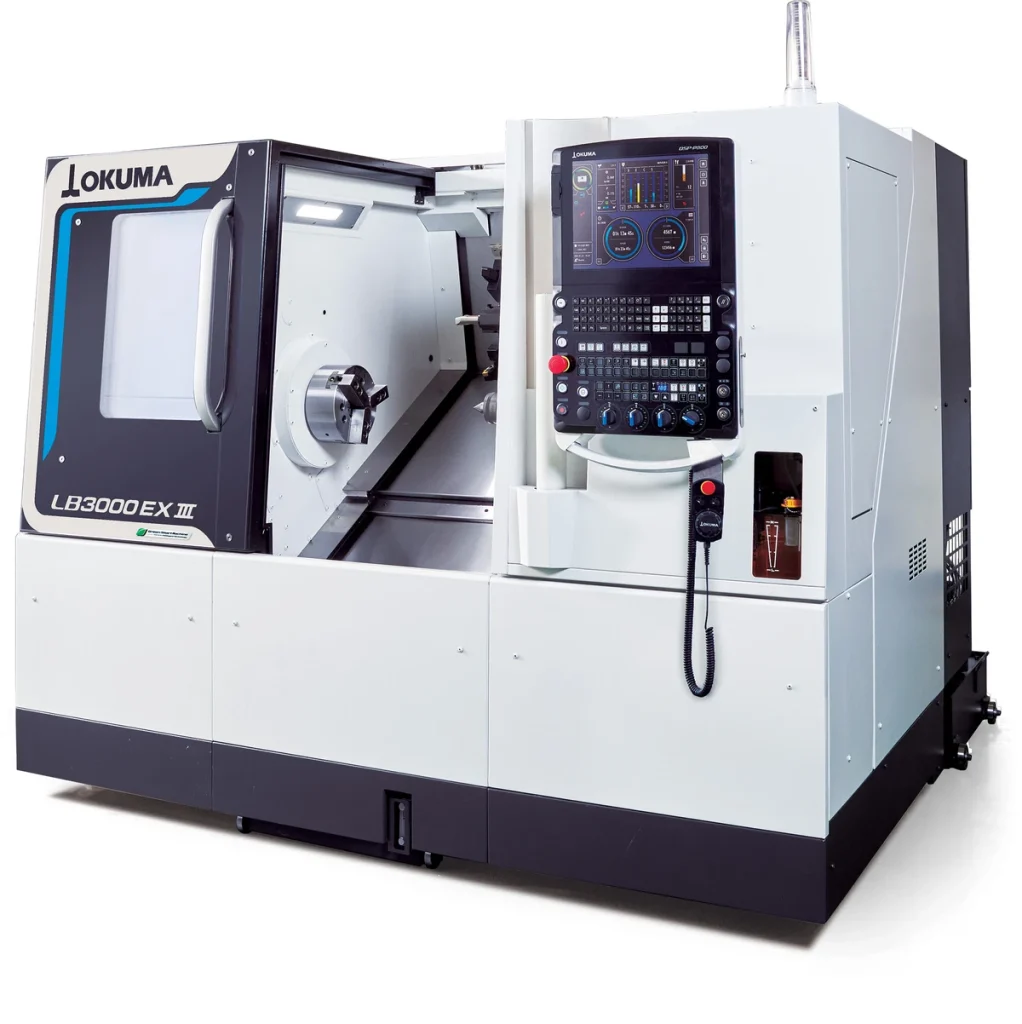

LB3000 EX III
Highlighted Specs
Max turning diameter (mm)
410
Max turning length (mm)
150
Spindle nose type
JIS A2-6
Speed Range (min⁻¹)
45~5,000
Rapid traverse X-Z (m/min)
25/30
Standard Power (kW)
22/15
LB4000 EX III
Highlighted Specs
Max Turning Diameter (mm)
480
Max Turning Length (mm)
750
Spindle Nose Type
JIS A2-8 [JIS A2-11, JIS A2-15]
Speed Range (min⁻¹)
42~4,200 [30~3,000, 12~1,400]
Rapid Traverse X-Z (m/min)
30/30
Standard Power (kW)
30/22 [37/30]
