Lathe LU EX Series
LU3000 EX
Highlighted Specs
Max Turning Diameter (mm)
410
Max Turning Length (mm)
350 [600; 1,000]
Spindle Nose Type
A2-6 [A2-8, A2-11]
Speed Range (min⁻¹)
50~5,000 [42~4,200, 30~3,000]
Standard Power (kW)
22/15
Rapid Traverse X/Z (m/min)
25 / 30

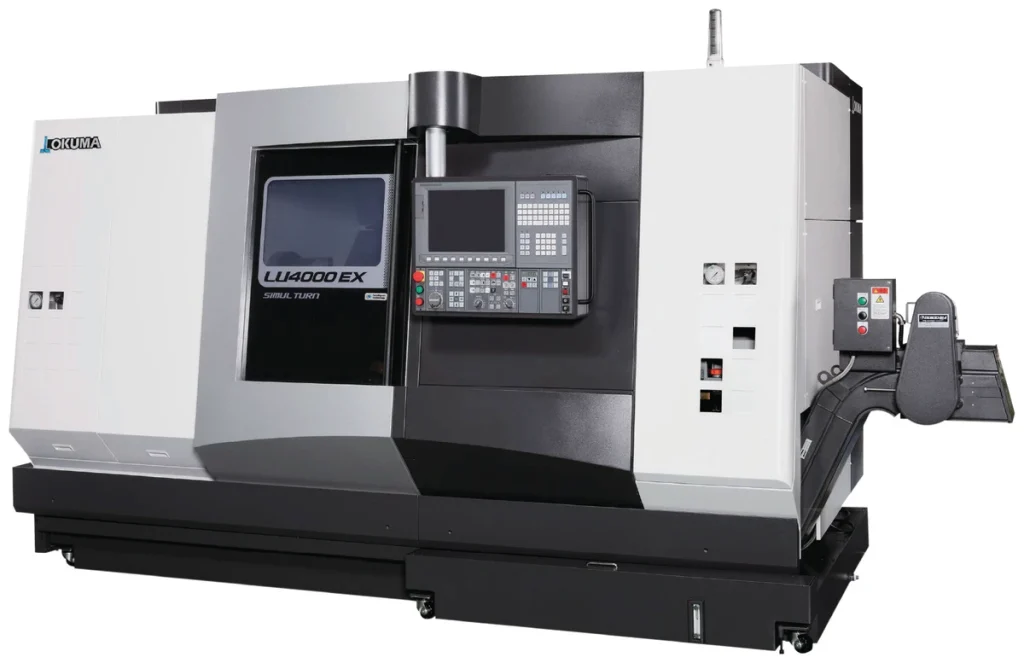

LU4000 EX
Highlighted Specs
Max Turning Diameter (mm)
Ø480
Max Turning Length (mm)
1,250
Spindle Nose Type
A2-8 [A2-11]
Speed Range (min⁻¹)
42~4,200 [30~3,000]
Standard Power (kW)
22/15 [32/22]
Rapid Traverse (m/min)
25/30

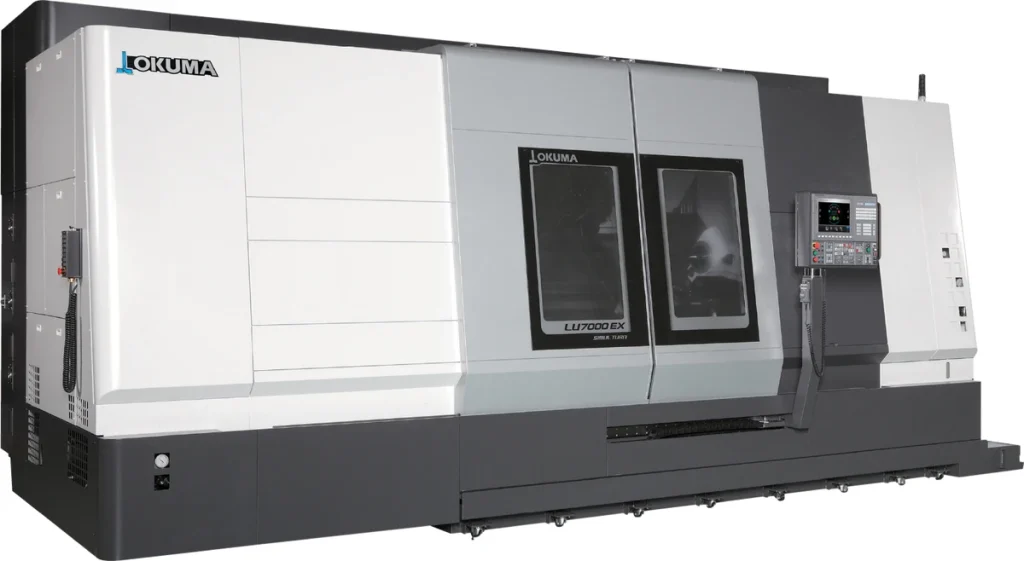

LU7000 EX
Highlighted Specs
Max Turning Diameter (mm)
Ø900
Max Turning Length (mm)
2,000
Spindle Nose Type
JIS A2-15 [A2-20, Ø725 flat]
Speed Range (min⁻¹)
10~1,500 [8~750, 5~500, 5~350]
Standard Power (kW)
45/37 [55/45, 75/60]
Rapid Traverse X-Z (m/min)
20
Lathe LU Series

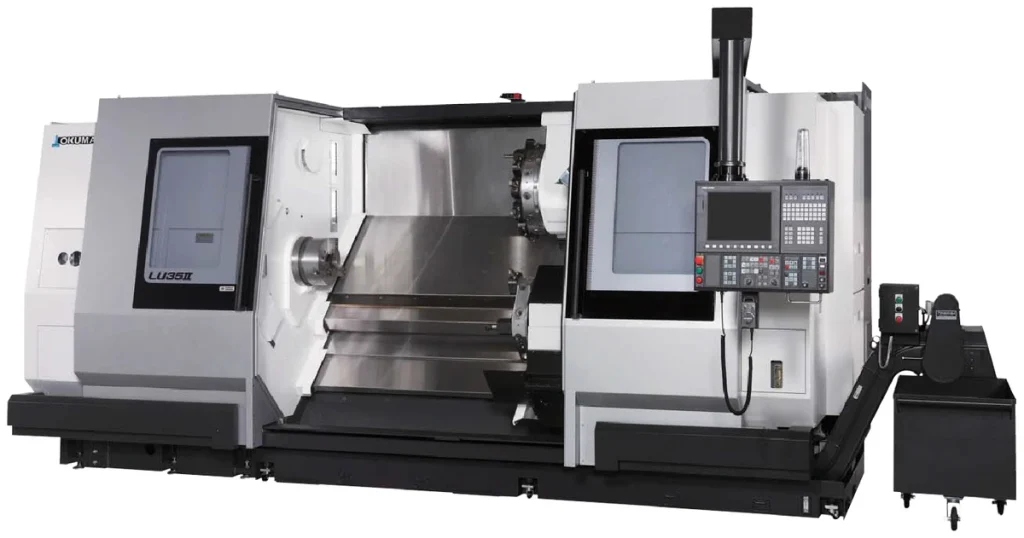

LU35II
Highlighted Specs
Max Turning Diameter (mm)
Ø550
Spindle Nose Type
A2-8 [A2-11]
Speed Range (min⁻¹)
14~3,200 [12~2,800]
Standard Power (kW (hp))
37/30
Rapid Traverse X/Z (m/min (ipm))
15 / 20
Rapid Traverse C (min⁻¹)
150

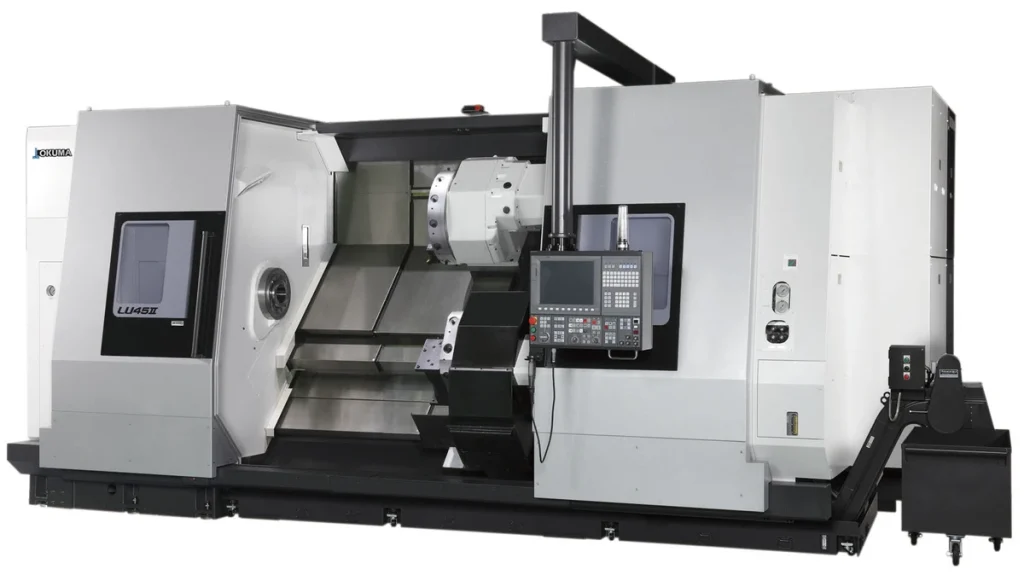

LU45II
Highlighted Specs
Max Turning Diameter (mm)
650
Max Turning Length (mm)
750 [1,000; 2,000; 3,000]
Spindle Nose Type
A2-11
Speed Range (min⁻¹)
12~2,800 [12~2,400]
Standard Power (kW)
37/30
Rapid Traverse X/Z (fpm)
15 / 20
Rapid Traverse C (min⁻¹)
100
Lathe LU-S Series

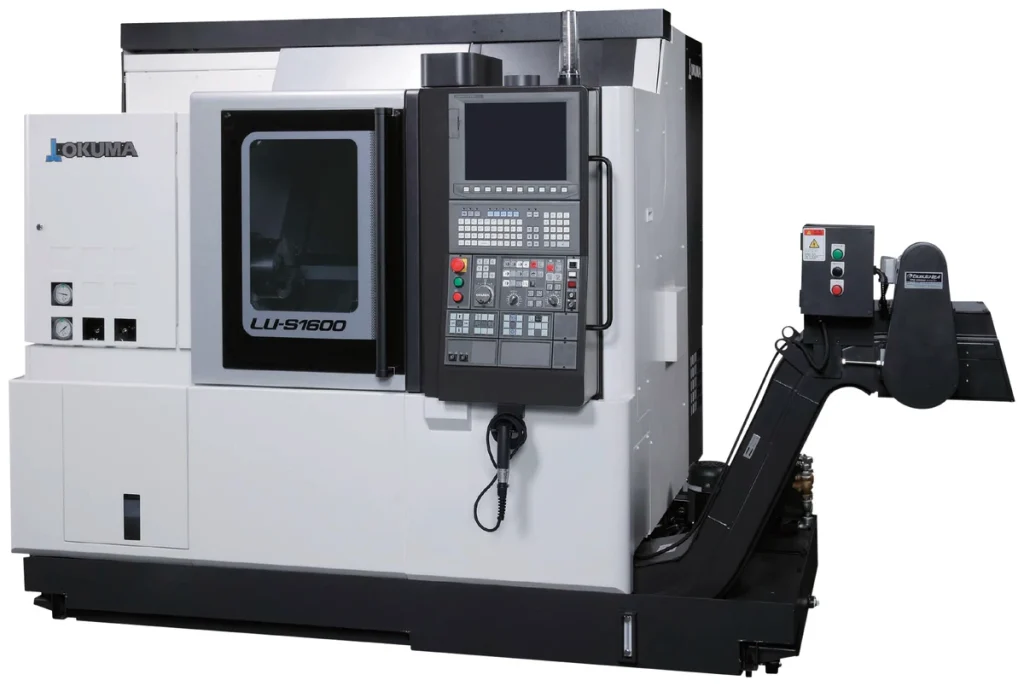

LU-S1600
Highlighted Specs
Max Turning Diameter (mm (in))
Ø160
Spindle Nose Type
JIS A2-6 [Ø140 flat]
Spindle Speed (min⁻¹)
40~4,000
Standard Power (kW)
11/7.5
Rapid Traverse X/Z (m/min)
20 / 30
