MILLAC-V SERIES

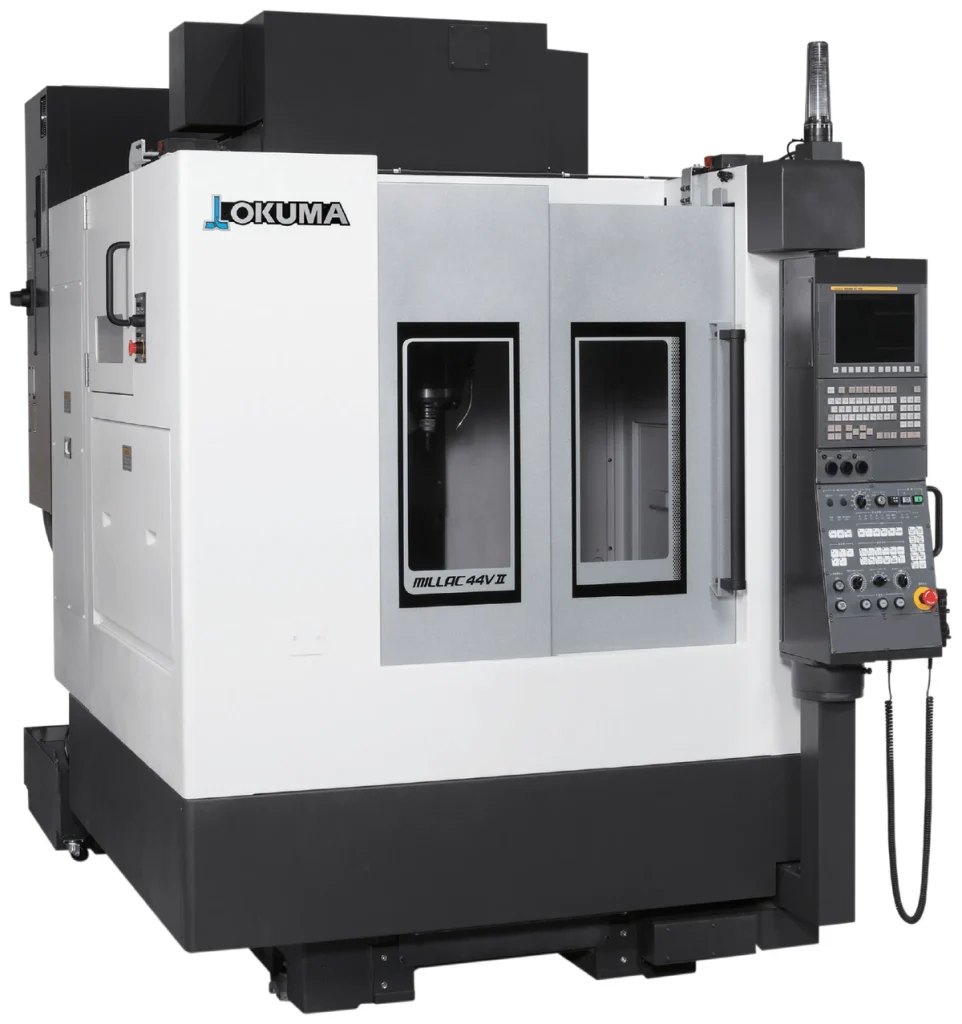

MILLAC 44V II
Highlighted Specs

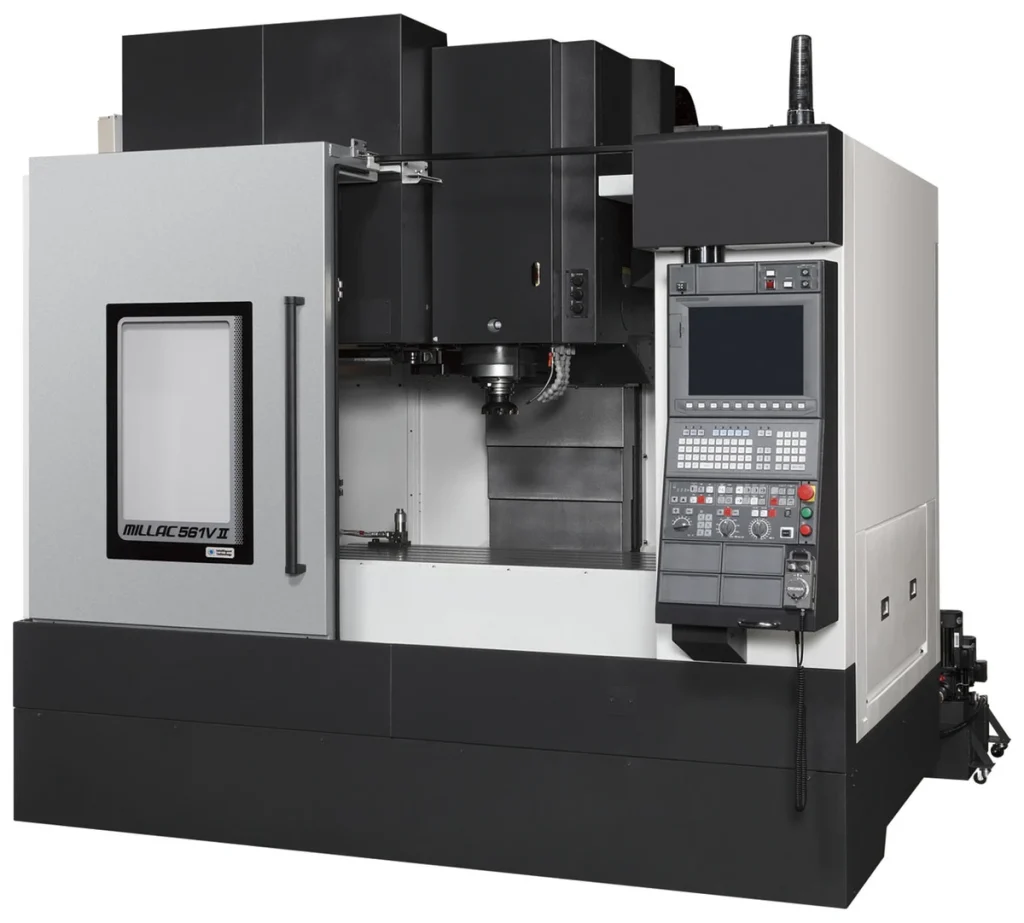

MILLAC 561V II
Highlighted Specs
Table Dimensions (mm)
1,350 x 560
Travel X/Y/Z (mm)
1,050 x 560 x 520
Max Load (kg)
1,000
Rapid Traverse (X/Y/Z) (m/min)
32/32/24
Spindle Speed (min⁻¹)
30~6,000 [60~10,000; 80~12,000]
Spindle Power (kW)
15/11 [22/18.5]

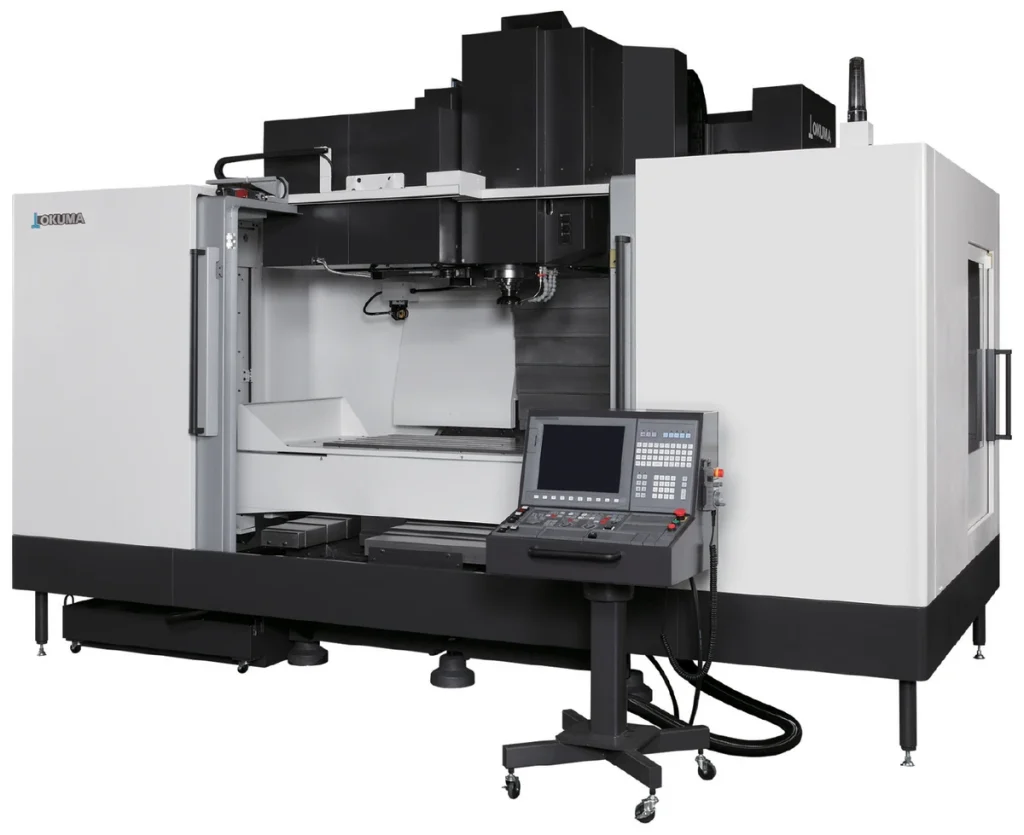

MILLAC 761V II
Highlighted Specs
Table Dimensions (mm)
1,800 x 720
Travel X/Y/Z (mm)
1,540 x 760 x 660
Max Load (kg)
2,000
Rapid Traverse (X-Y-Z) (m/min)
16
Spindle Speed (min⁻¹)
20~4,000 [30~6,000; 50~12,000; 50~15,000]
Spindle Power (kW)
18.5/15 [26/18.5]

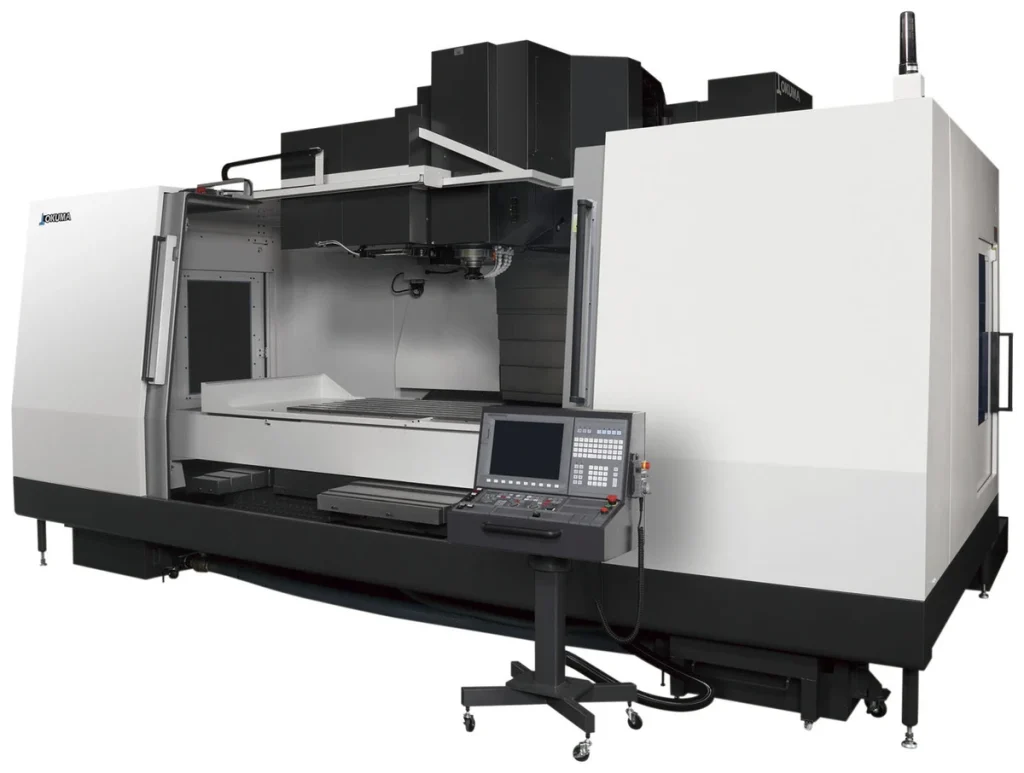

MILLAC 852V II
Highlighted Specs
Table Dimensions (mm)
2,200 x 850 [3,200 x 850]
Travel X/Y/Z (mm)
2,050 x 850 x 750 [3,050 x 850 x 750]
Max Load (kg)
2,500 [3,800]
Rapid Traverse (X/Y/Z) (m/min)
16 / 16 / 16 [12 / 12 / 16]
Spindle Speed (min⁻¹)
20~4,000 [30~6,000, 50~12,000, 50~15,000]
Spindle Power (kW)
18.5/15 [26/18.5]

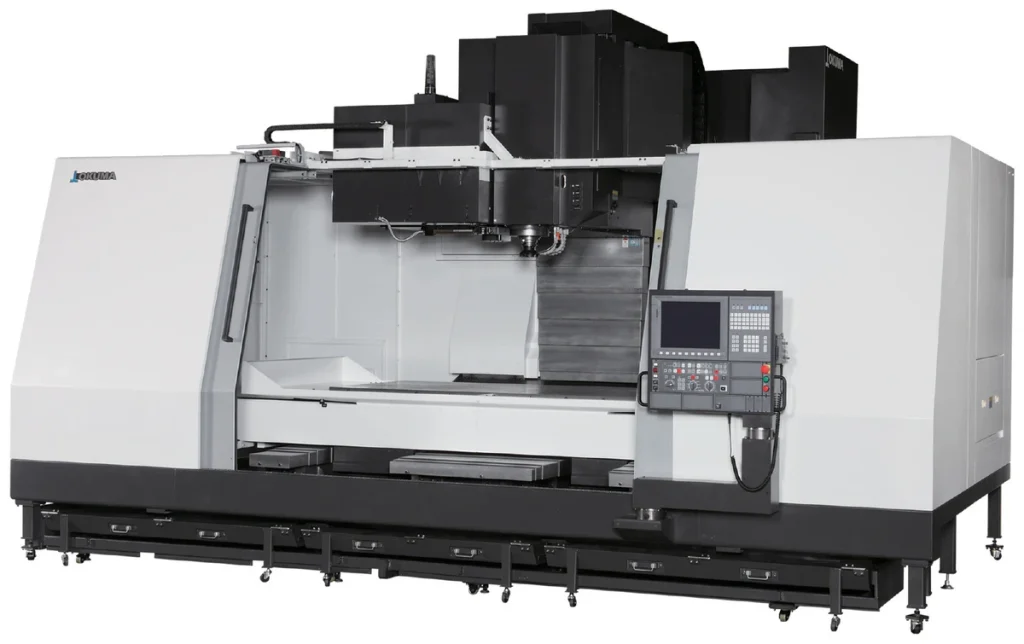

MILLAC 1052V II
Highlighted Specs
Table Dimensions (mm)
2,200 x 850 [3,200 x 850]
Travel X/Y/Z (mm)
2,050 x 850 x 750 [3,050 x 850 x 750]
Max Load (kg)
2,500 [3,800]
Rapid Traverse (X/Y/Z) (m/min)
16 / 16 / 16 [12 / 12 / 16]
Spindle Speed (min⁻¹)
20~4,000 [30~6,000; 50~12,000; 50~15,000]
Spindle Power (kW)
22/18.5 [26/18.5]
MILLAC-VH SERIES

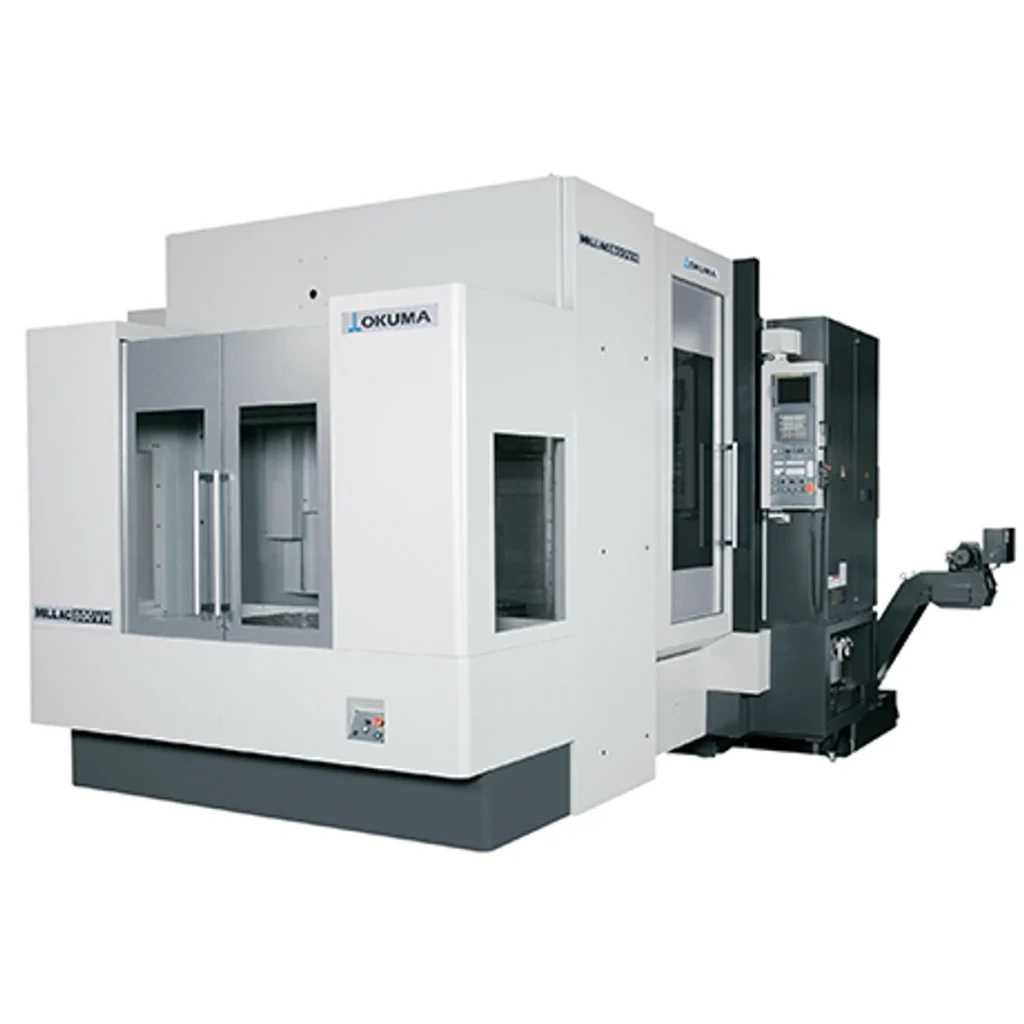

MILLAC 800VH
Highlighted Specs
Table Dimensions (mm)
800 x 800
Travel X|Y:Z (mm)
1,020
Max Load (kg)
1,000
Rapid Traverse X:Y:Z (m/min)
30
Rapid Traverse (A/C) (deg/min)
3,600
Spindle Speed (min⁻¹)
100~10,000
Spindle Power (kW)
22/18.5

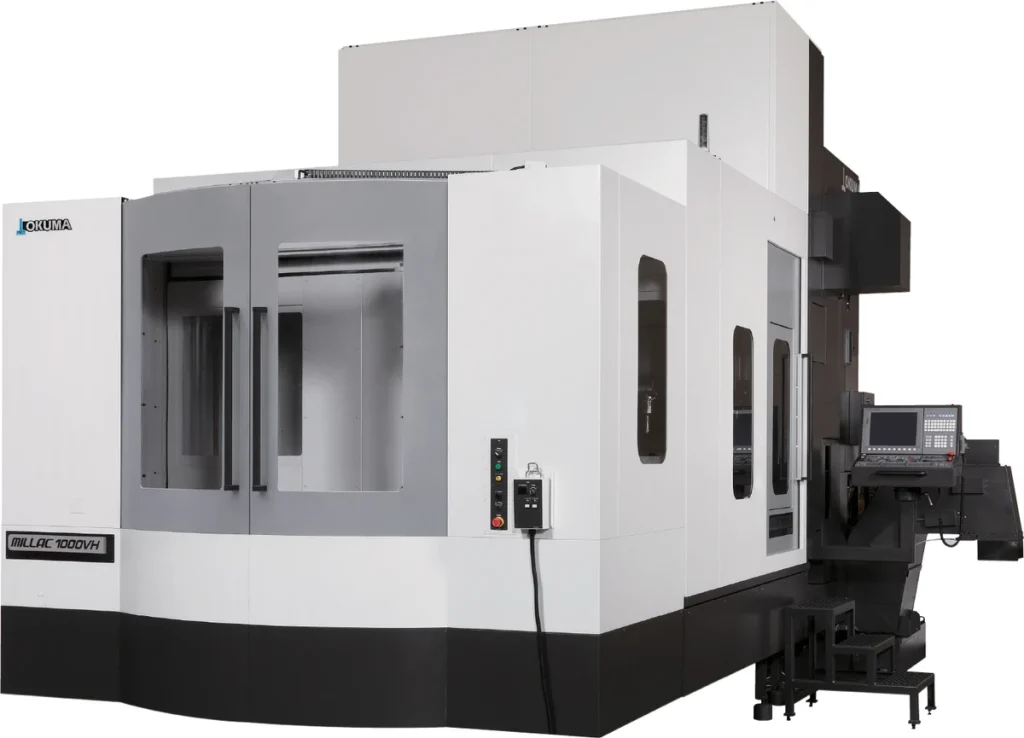

MILLAC 1000VH
Highlighted Specs
Table Dimensions (mm)
1,000 x 1,000
Travel X/Y/Z (mm)
1,650 / 1,300, / 1,000 [1,650 / 1,600 / 1,000]
Max Load (kg)
2,000
Rapid Traverse (X/Y/Z) (m/min)
24 / 24 / 12
Rapid Traverse (A/C) (min⁻¹)
1,440
Spindle Speed (min⁻¹)
20~6,000 [100~10,000]
Spindle Power (kW)
22/18.5

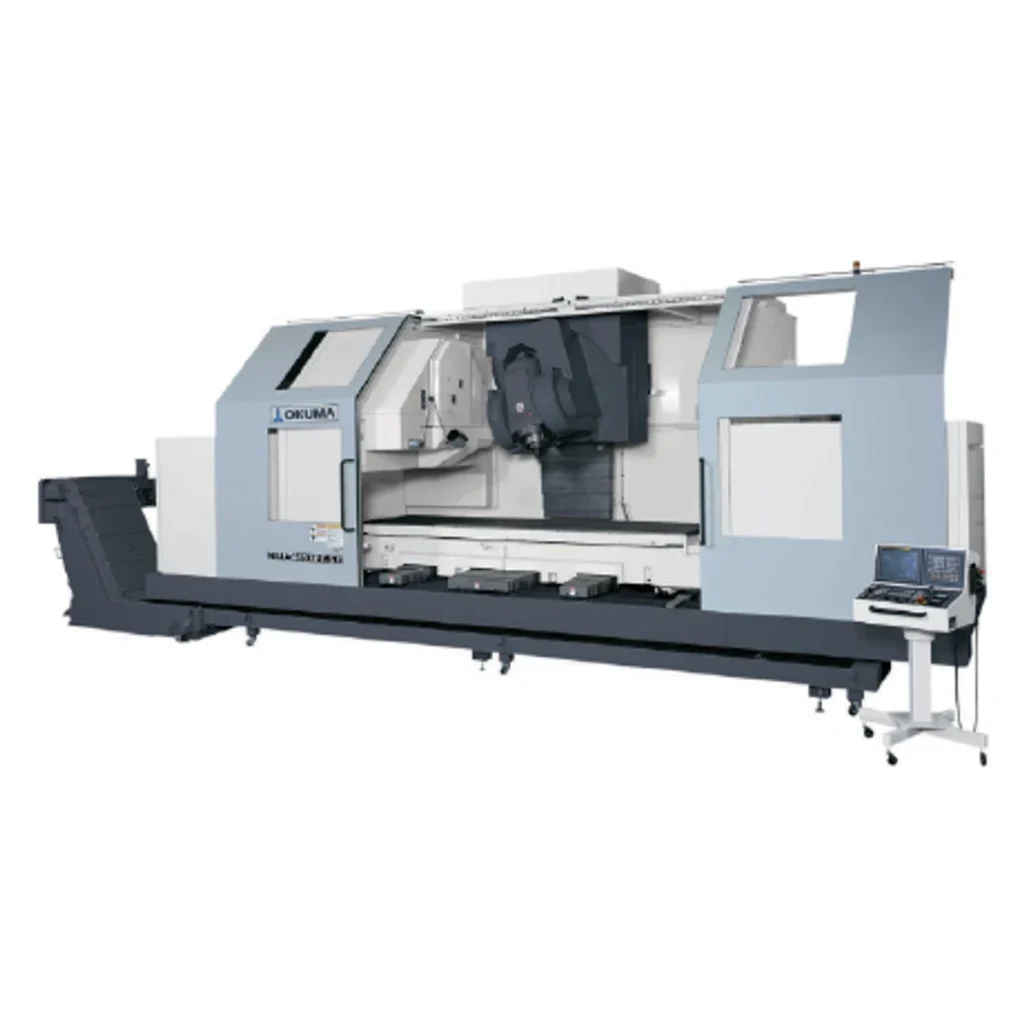

MILLAC 853PF-5X
MILLAC 853PF-5X
Highlighted Specs
Table Dimensions (mm)
1,000 x 1,000
Travel X/Y/Z (mm)
1,650 / 1,300, / 1,000 [1,650 / 1,600 / 1,000]
Max Load (kg)
2,000
Rapid Traverse (X/Y/Z) (m/min)
24 / 24 / 12
Rapid Traverse (A/C) (min⁻¹)
1,440
Spindle Speed (min⁻¹)
20~6,000 [100~10,000]
Spindle Power (kW)
22/18.5
