Shop floor CMMs

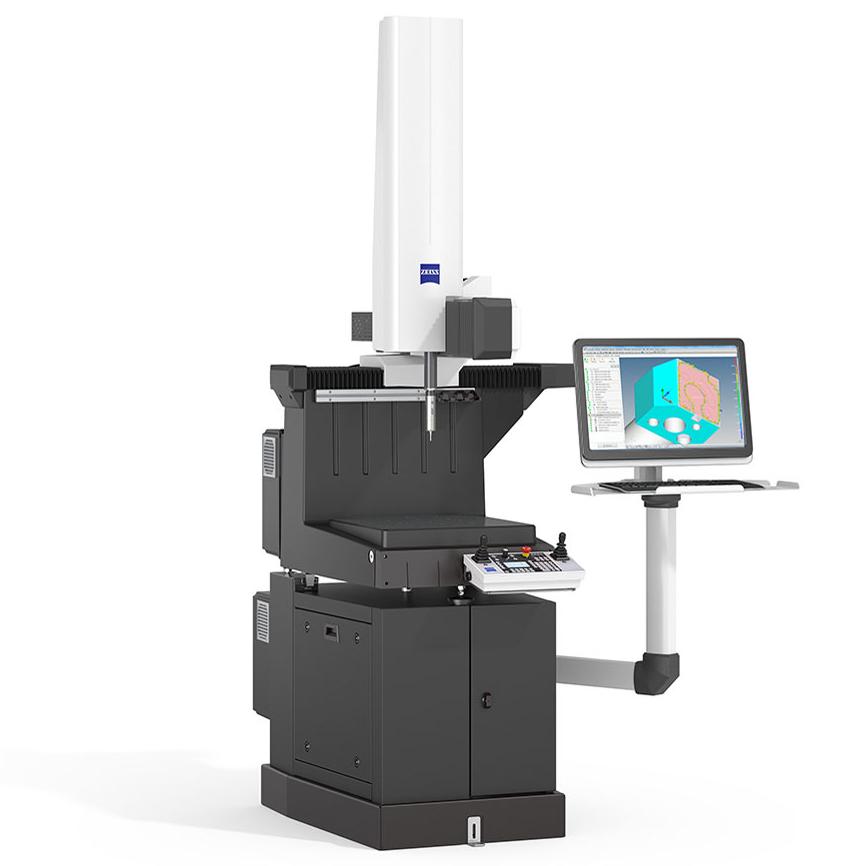

ZEISS DuraMax
The natural choice for the shop floor
Quality assurance is demanding and CMM requirements are high – especially in the production environment. ZEISS DuraMax combines robustness, precision and efficiency, making it the perfect choice for at-line measurement directly in your production hall. ZEISS DuraMax is not deterred by harsh environmental conditions and withstands even high temperatures. In conjunction with the ZEIS VAST XXT-Sensor it enables fast single-point measurements as well as scanning of contours and free-form surfaces, making fixed gauges superfluous.
All benefits at a glance
Efficiency

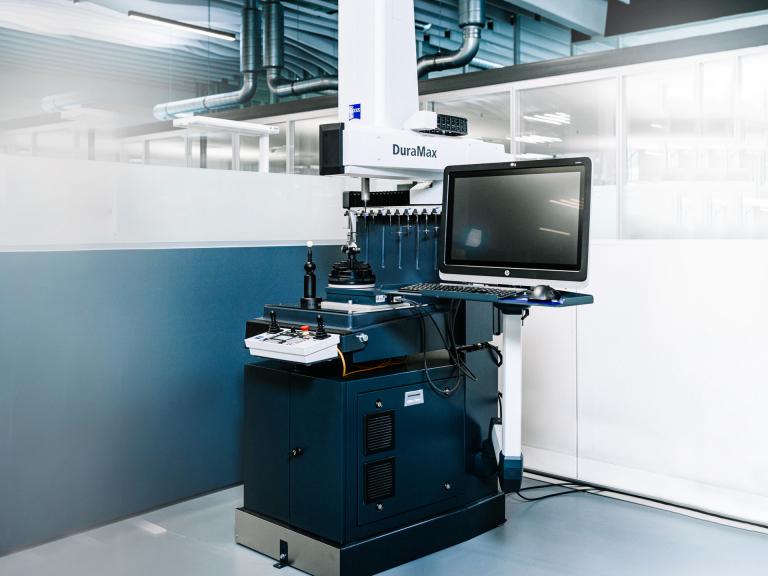

Optimal measurement volume/ footprint ratio
- Space-saving design for a small footprint
- Generous and easily accessible measuring volume
- Loading from three sides and from above
- No compressed air required
Speed
Reduced operating times and fast measurements

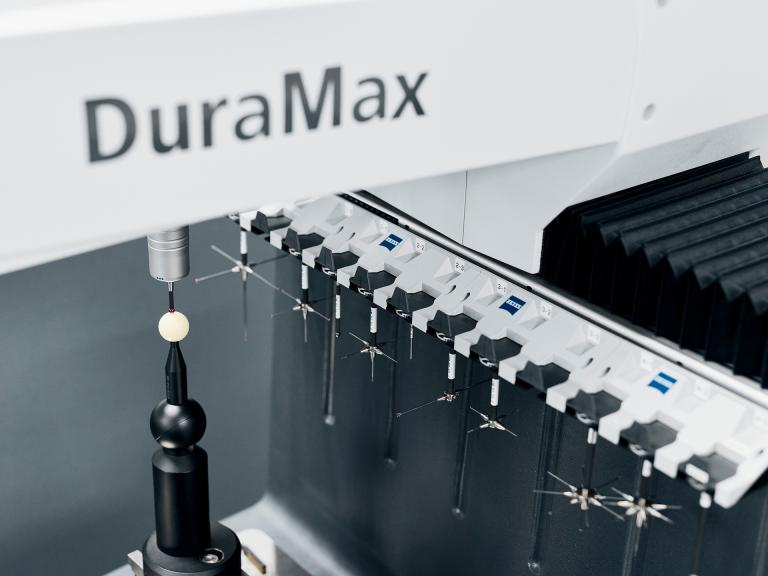

- Fast scanning with ZEISS VAST XXT
- Single-point measurements with ZEISS VAST probing
- ZEISS Duplex System for increased throughput
- Four-axis measurement with rotary table
Precision
Precise results even in harsh environments
- Dust and moisture protection
- IP54 rated ShopFloor base
- Thermal stability due to glass ceramic scales
- Linear drive nut and ball bearing guiding system with covered guiding in all axes
- Passive vibration damping as standard
Fully equipped for your challenges
Discover the unique features of ZEISS DuraMax

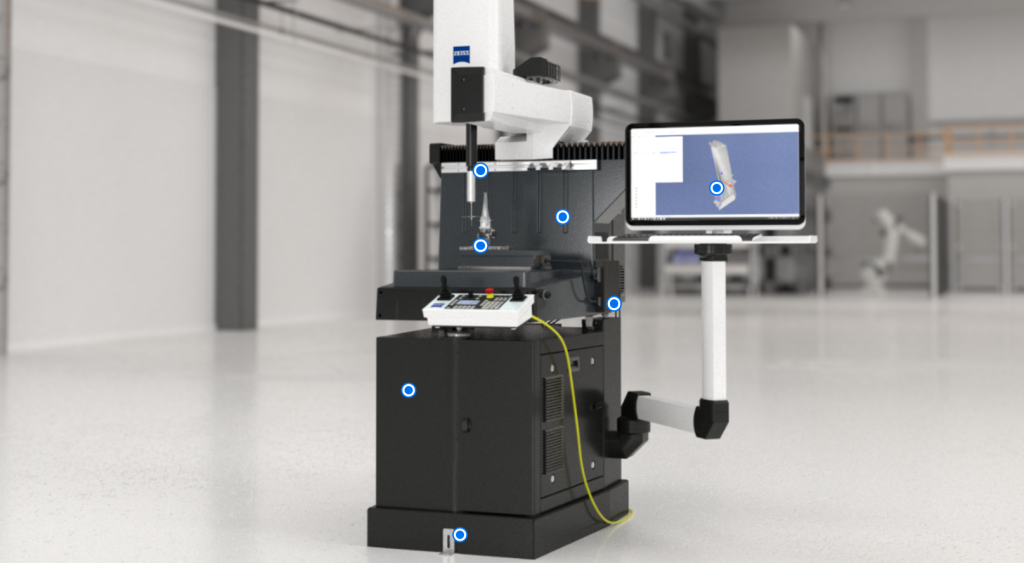

Click on the circle markers on the image to open the information box with more details.
Even less temperature-sensitive, even more robust
ZEISS DuraMax HTG
ZEISS DuraMax HTG offers the widest temperature range with the highest temperature gradient and can be operated both at the production site and in automation systems. This provides more flexibility as you can perform your measurement tasks with even more resistance to environmental influences.
Highlights
- Precise measurement at high temperatures
- Zerodur scales for smallest possible heat expansion
- Temperature sensors for workpiece temperature correction
- Additional filter pads in the X- and Y-axis to protect against dirt and dust
Technical specifications
| Feature | DuraMax | DuraMax HTG |
|---|---|---|
| Measuring volume | 500 x 500 x 500 mm3 | 500 x 500 x 500 mm3 |
| Length measurement error E0 in µm E0/E40 in µm MPE according to ISO 10360-2:2009 | 2.4 + L/300 18°C – 22°C | 2.2 + L/300 18°C – 22°C |
| Extended temperature range (ZEISS TVA 1) E0/E40 in µm | 2.7 + L/250 18°C – 26°C | 2.5 + L/250 18°C – 26°C |
| Extended temperature range (ZEISS TVA 2) E0/E40 in µm | 2.9 + L/200 18°C – 30°C | 2.7 + L/200 18°C – 30°C |
| Extended temperature range (ZEISS TVA 3) E0/E40 in µm | Not available | 3.9 + L/100 15°C – 40°C |
| Software | ZEISS CALYPSO | ZEISS CALYPSO |
| Tactile Sensor | VAST XXT TL 3 | VAST XXT TL 3 |
| Stylus length | Radially up to 65 mm (star stylus) | Radially up to 65 mm (star stylus) |
| Probe diameter | 0.3 – 8 mm | 0.3 – 8 mm |
