Compressive Type
ST [Inner taper surface]
ST [Inner taper surface]
Product Information
- Available workpiece shape: Inner surface (Taper hole)
- Available driving units: Machining center, Engine lathe, Turret lathe, Drilling machine, Drilling unit
- ＞Compact type of compressive SUPEROLL with shortening the protruded tool length and can be attached to Swiss lathe.

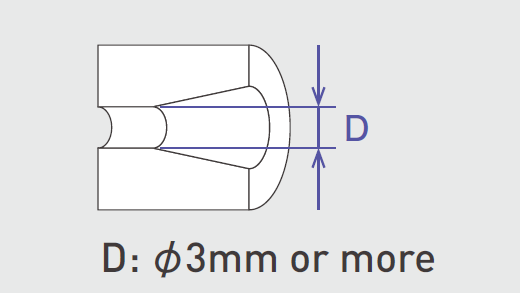

Hole size

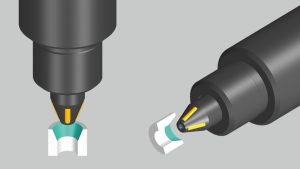

Burnishing Image

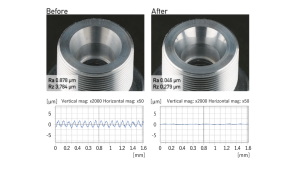

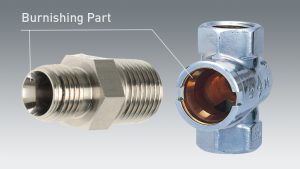

Burnishing example

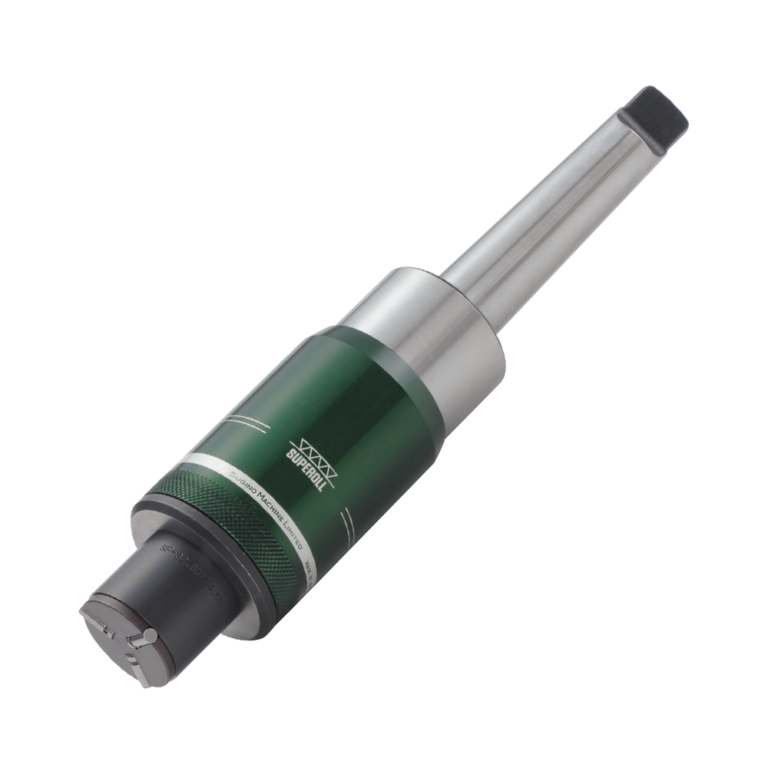

SF [Counterbore surface/End surface]
SF [Counterbore surface/End surface]
Product Information
- Available workpiece shape: Outer surface (Counterbore surface, End surface)
- Available driving units: Machining center, Engine lathe, Turret lathe, Drilling machine, Drilling unit
- ＞Compact type of compressive SUPEROLL with shortening the protruded tool length and can be attached to Swiss lathe.

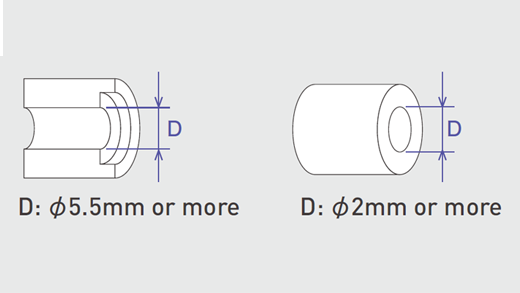

Available Size

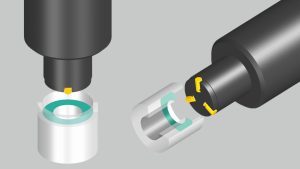

Burnishing Image

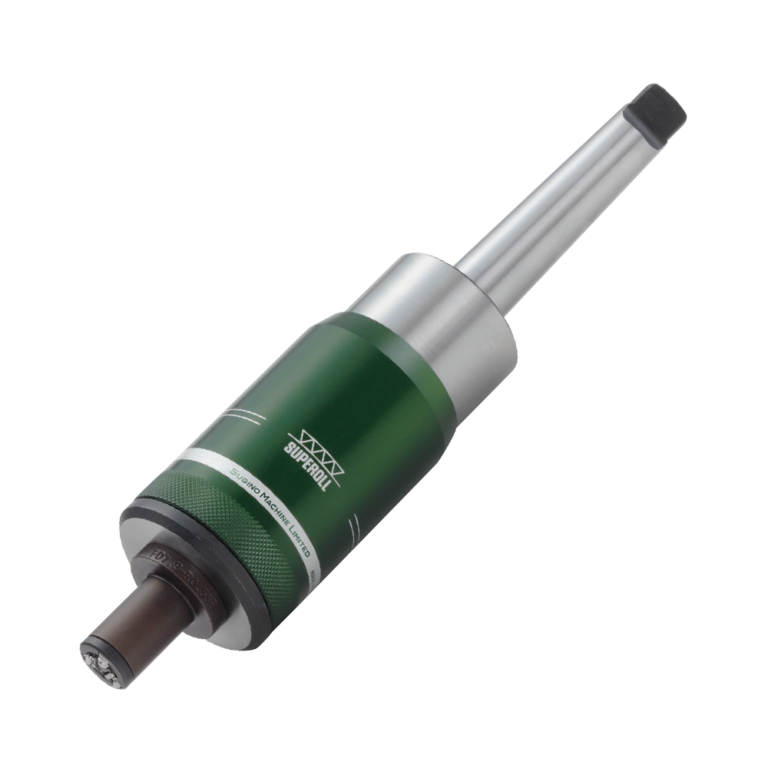

FD [Convex R]
FD [Convex R]
Product Information
- Available workpiece shape: Outer surface (Convex R)
- Available driving units: Machining center, Engine lathe, Turret lathe, Drilling machine, Drilling unit
- ＞Compact type of compressive SUPEROLL with shortening the protruded tool length and can be attached to Swiss lathe.

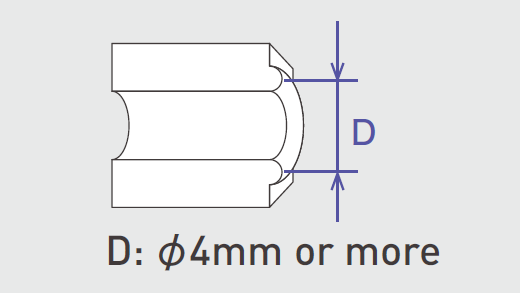

Convex R size

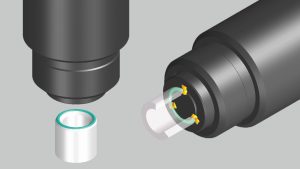

Burnishing image

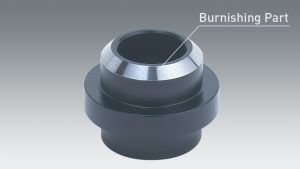

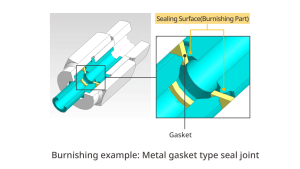

Burnishing example

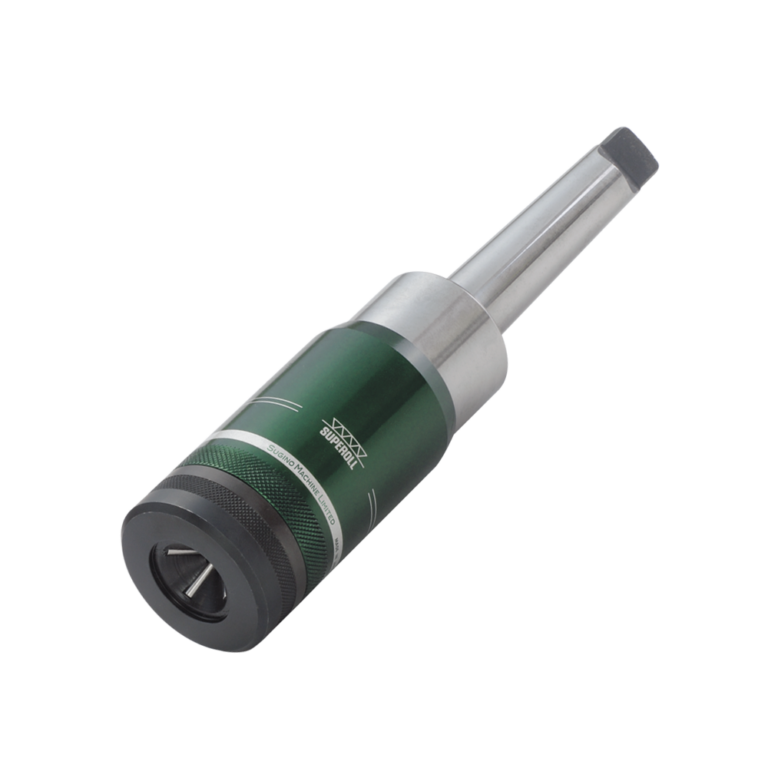

SE [Taper shaft]
SE [Taper shaft]
Product Information
- Available workpiece shape: Outer taper surface (Taper shaft)
- Available driving units: Machining center, Engine lathe, Turret lathe, Drilling machine, Drilling unit
- ＞Compact type of compressive SUPEROLL with shortening the protruded tool length and can be attached to Swiss lathe.

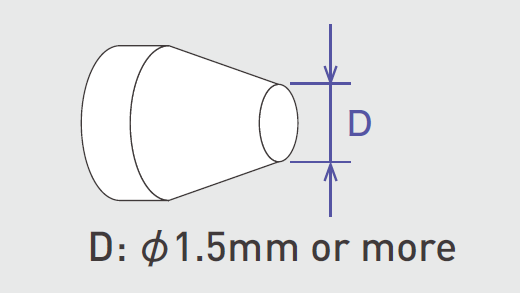

Small taper size

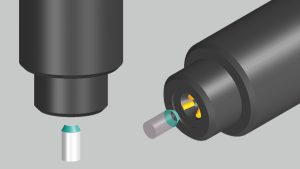

Burnishing image
Burnishing example

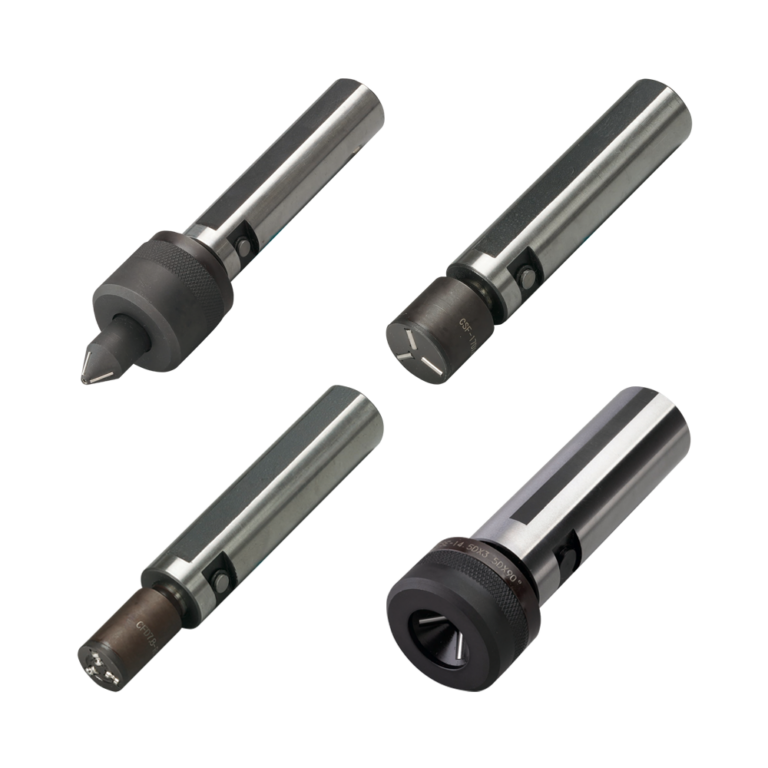

CST/CSF/CFD/CSE [Sealing surface] Compact type
CST/CSF/CFD/CSE [Sealing surface] Compact type
SUPEROLL CST [Inner taper surface]
SUPEROLL CSF [Counterbore surface/End surface]
SUPEROLL CFD [Convex R]
SUPEROLL CSE [Taper shaft]

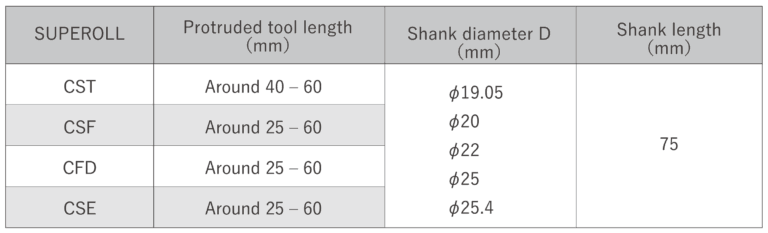

Product Information
*SUPEROLL CST, CSF, CFD and CSE are designed in accordance with customer’s workpiece.
For detailed specification, contact your nearest sales office.
