Diamond Type
CEO [Shaft]
CEO [Shaft]
Features
- Burnishing materials with high hardness of HRC40-60.
- The diamond tip has a throw-away design that allows for easy replacement.
Product Information
- Available workpiece shape: Outer surface Shaft, Shaft with step
- Available driving units: Engine lathe, Turret lathe
- Available hardness: HRC40-60

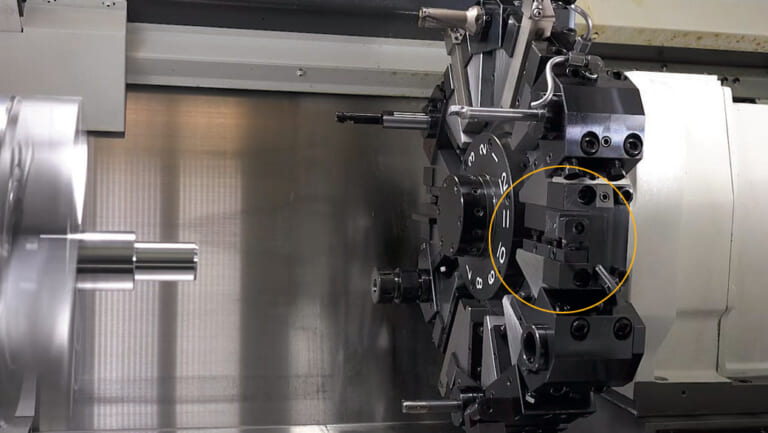

Attachment image to a driving unit:

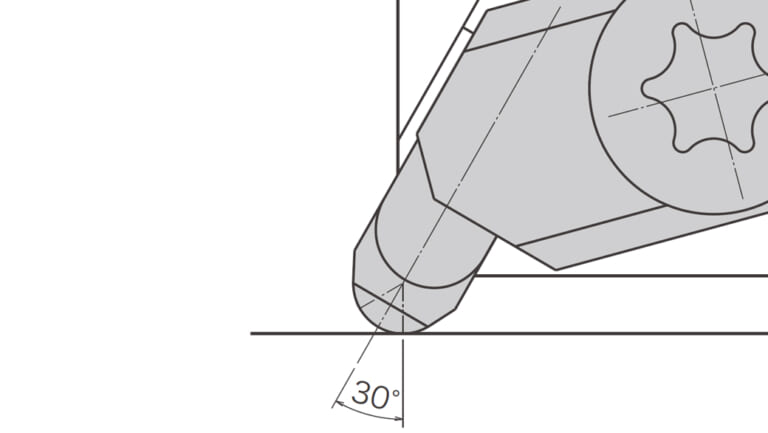

Effective burnishing range:

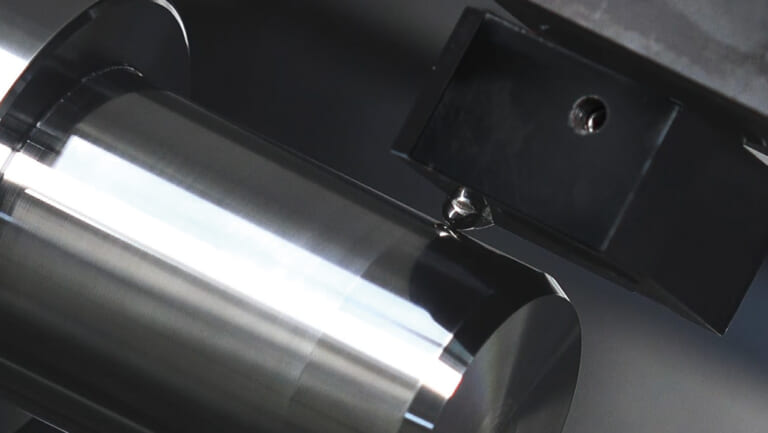

Burnishing scene:

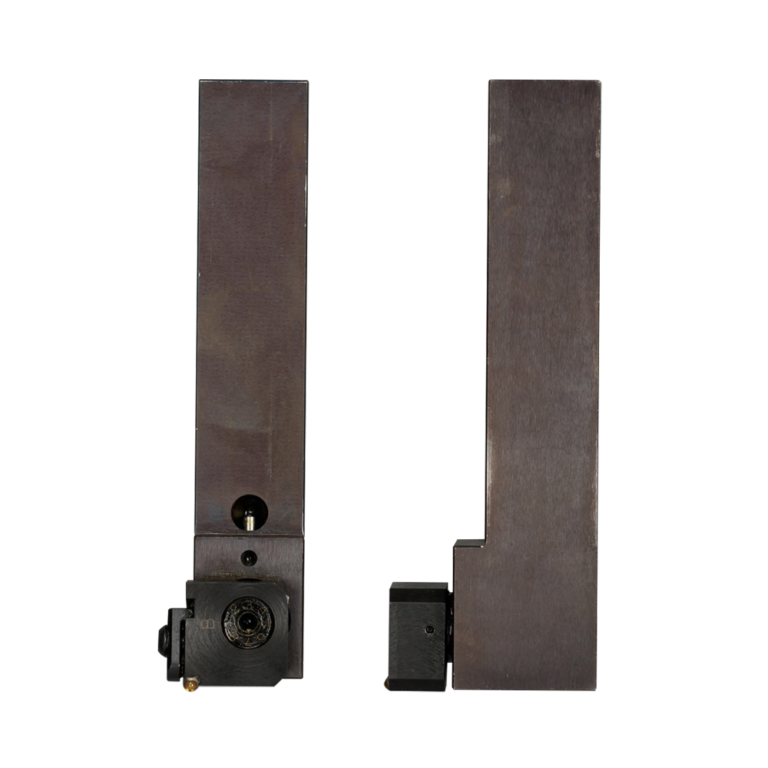

CEF [End surface]
CEF [End surface]
Features
- Burnishing materials with high hardness of HRC40-60.
- The diamond tip has a throw-away design that allows for easy replacement.
Product Information
- Available workpiece shape: End surface
- Available driving units: Engine lathe, Turret lathe
- Available hardness: HRC40-60
Effective burnishing range:
Burnishing scene:

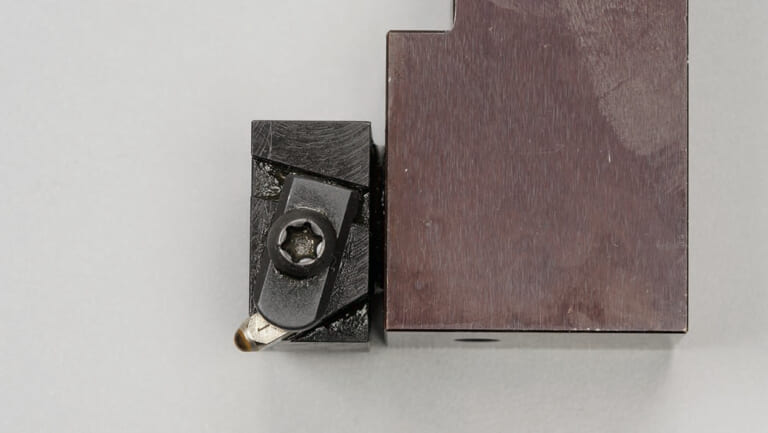

Diamond tip (Close-up photo):

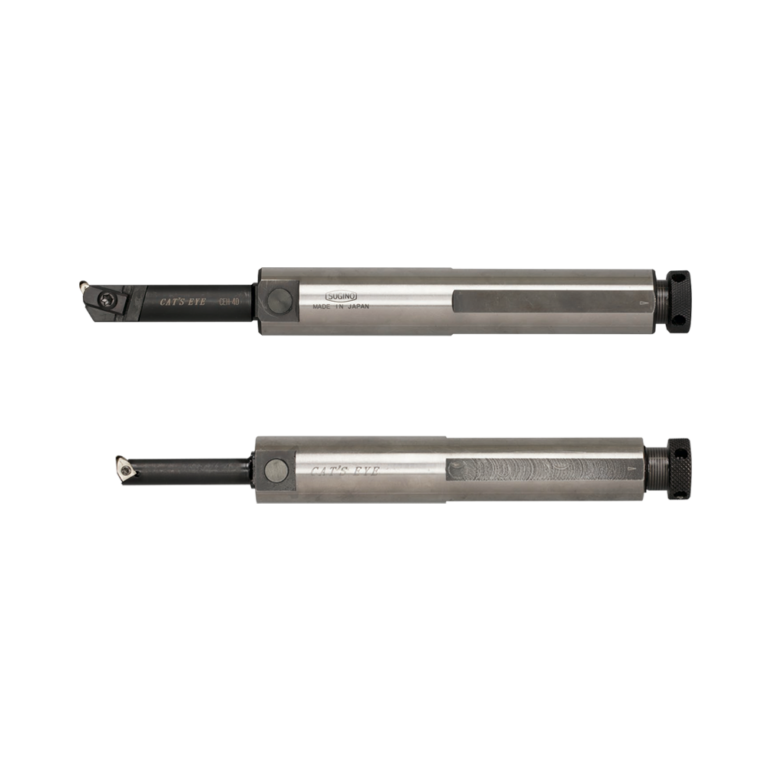

CEH [Through-hole/Blind-hole]
CEH [Through-hole/Blind-hole]
Features
- Burnishing materials with high hardness of HRC40-60.
- The diamond tip has a throw-away design that allows for easy replacement.
Product Information
- Available workpiece shape: Inner surface Through-hole, Blind-hole
- Available driving units: Engine lathe, Turret lathe
- Available hardness: HRC40-60
Effective burnishing range:

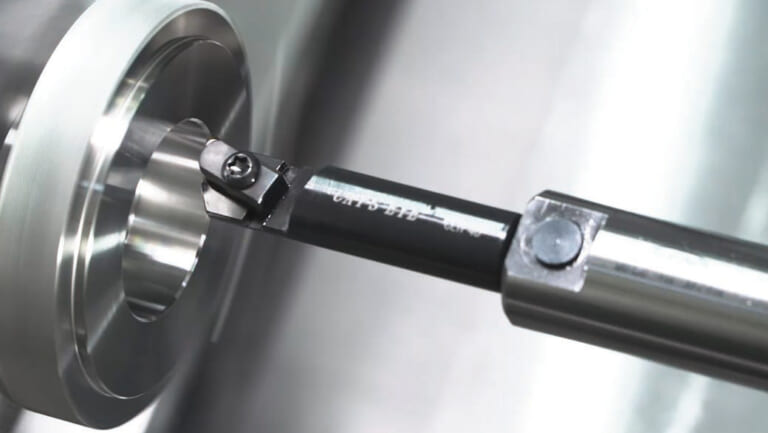

Burnishing scene:
Diamond tip (Close-up photo):

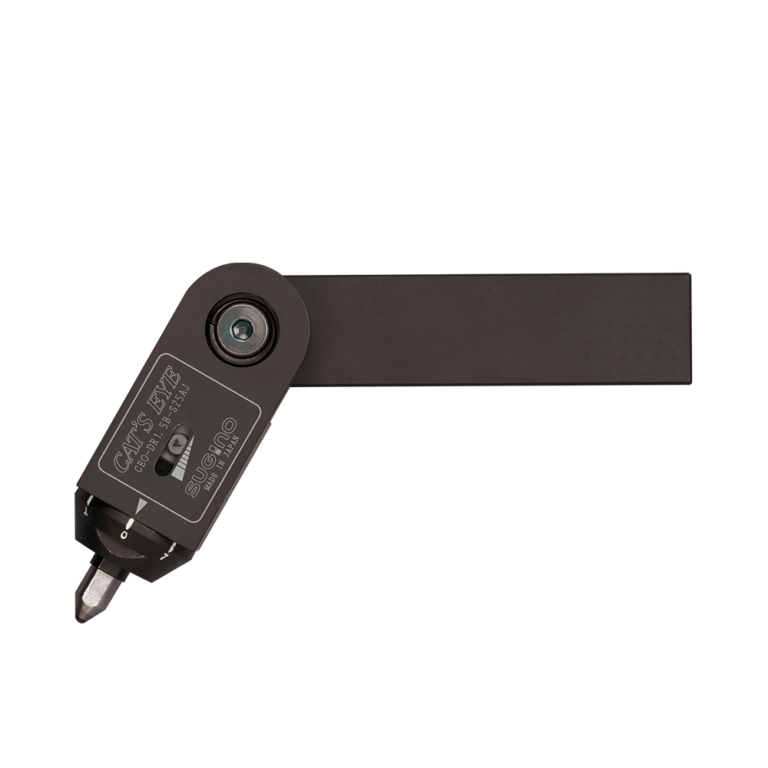

CEO-AJ [Shaft/Taper shaft/R surface/End surface/Counterbore surface]
CEO-AJ [Shaft/Taper shaft/R surface/End surface/Counterbore surface]
Features
- Burnishing materials with high hardness of HRC40-60.
- Tool designed for workpieces of various shapes and sizes.
Product Information
- Available workpiece shape: Outer surface Shaft, Shaft with step, Taper shaft, R surface, End surface
- Available driving units: Engine lathe, Turret lathe
- Available hardness: HRC40-60

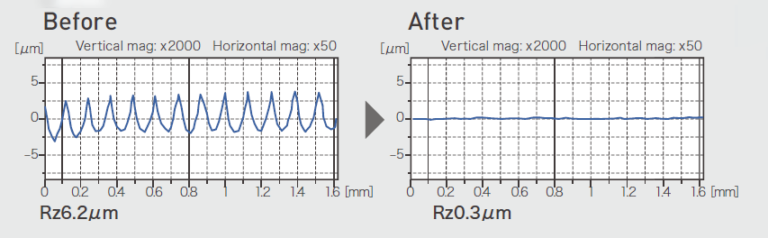

Burnishing data:

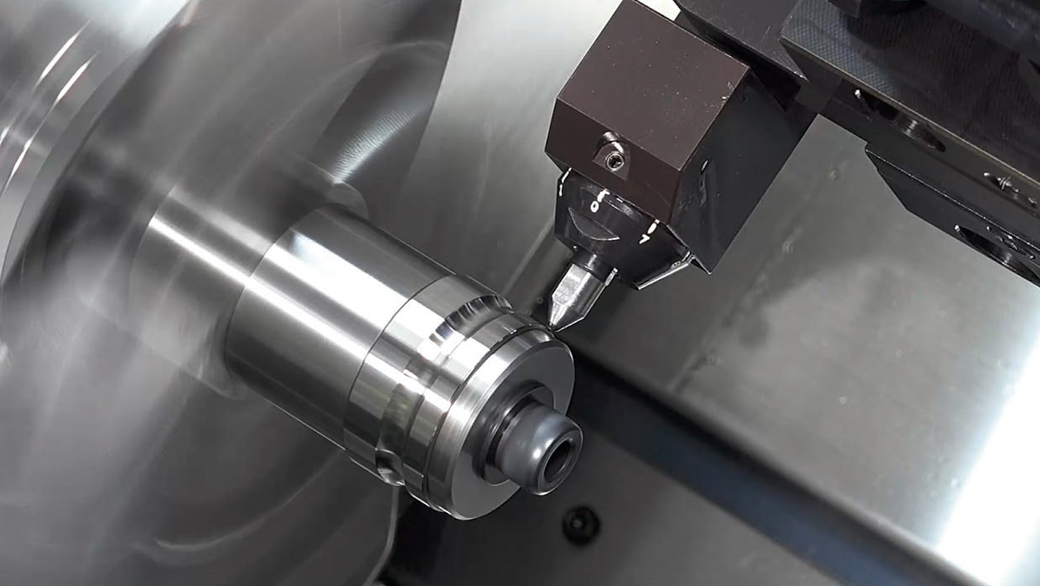

Burnishing Scene

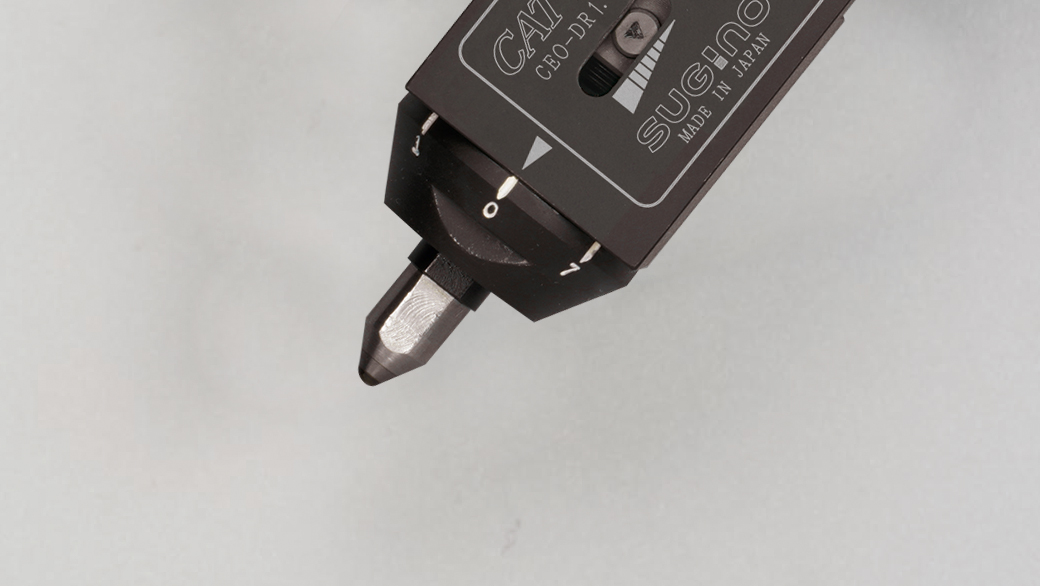

Diamond tip (Close-up photo)

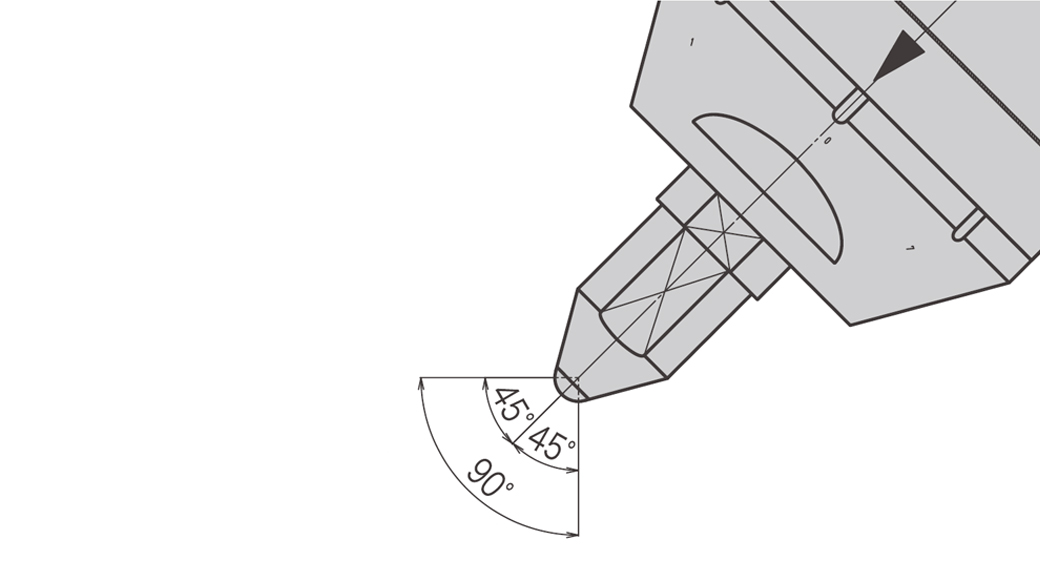

Effective burnishing range

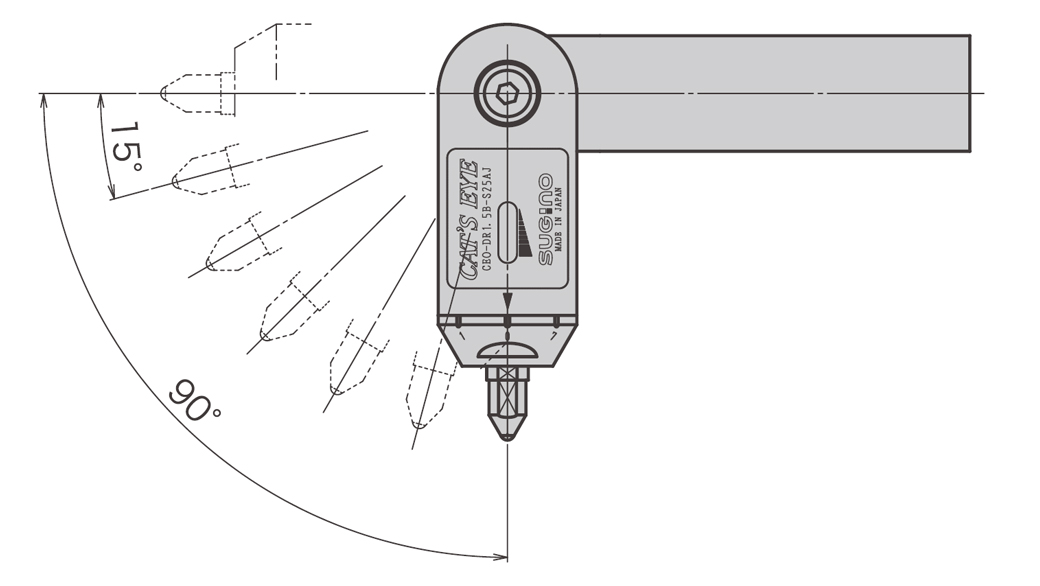

Tool attachment direction
Tool tip direction can be adjustable every 15° in the range of 90°.

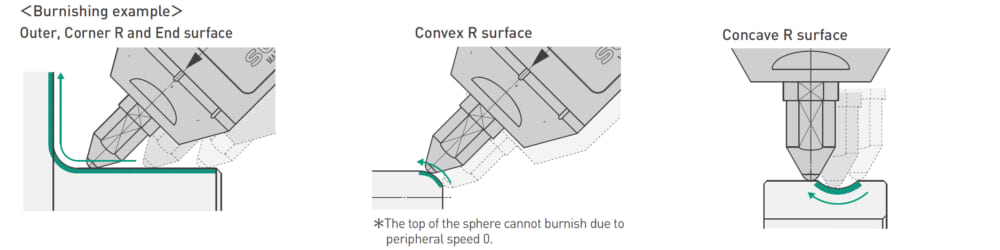

Available burnishing shapes
