Multi Roller Type
SH[Inner Surface Through-hole]
SH[Inner Surface Through-hole]
Product Information
Available workpiece shape: Through-hole
Available driving units: Machining center, Engine lathe, Turret lathe, Drilling machine, Drilling unit
Hole size：
Standard φ4.5 – φ200mm
Special φ3.0mm or more

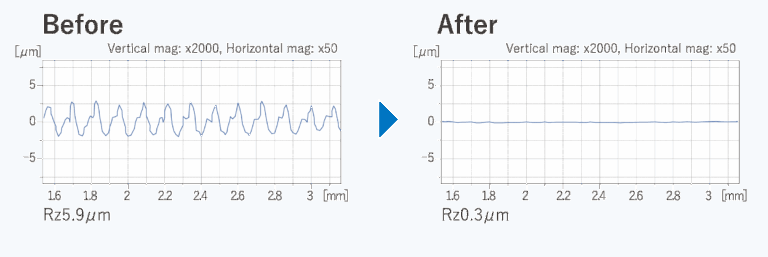

Burnishing data:

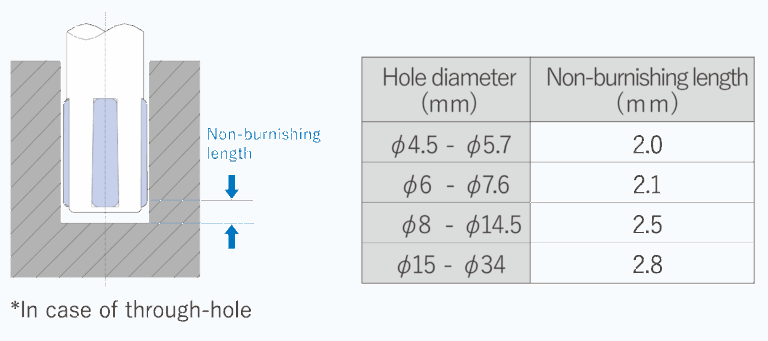

Non-burnishing length:

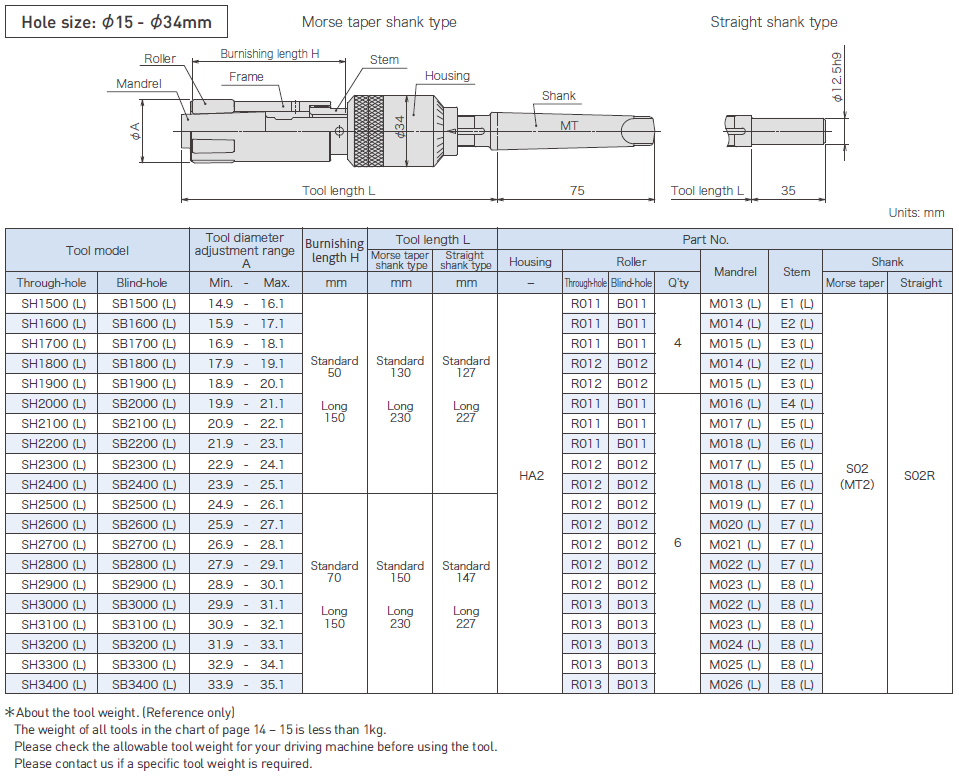

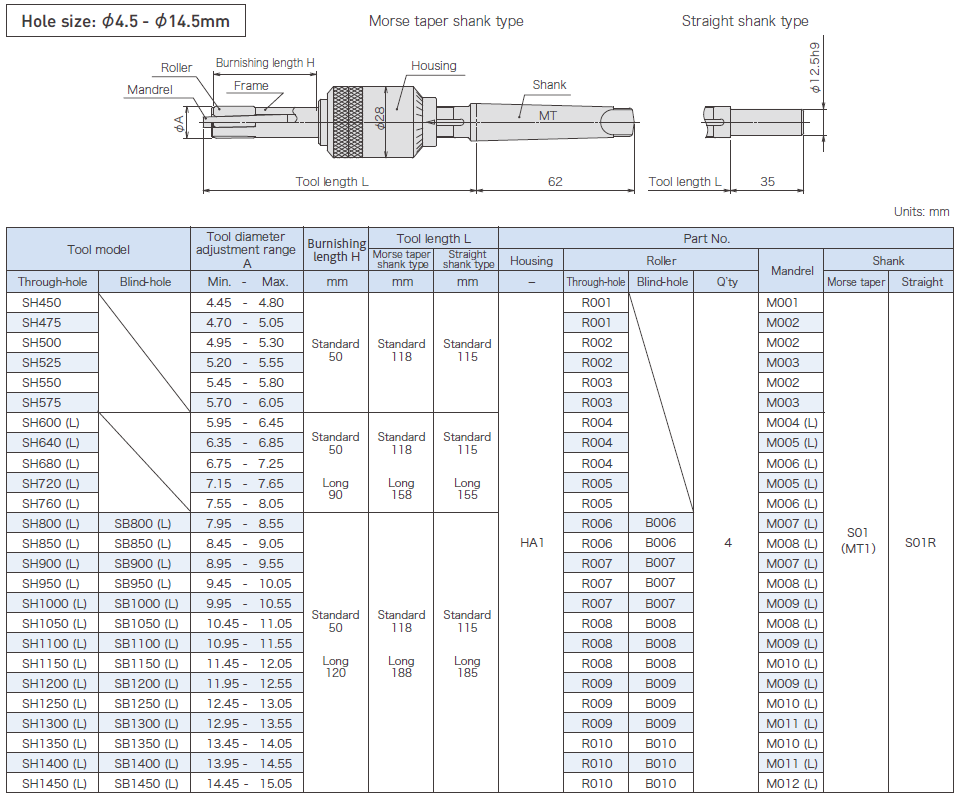

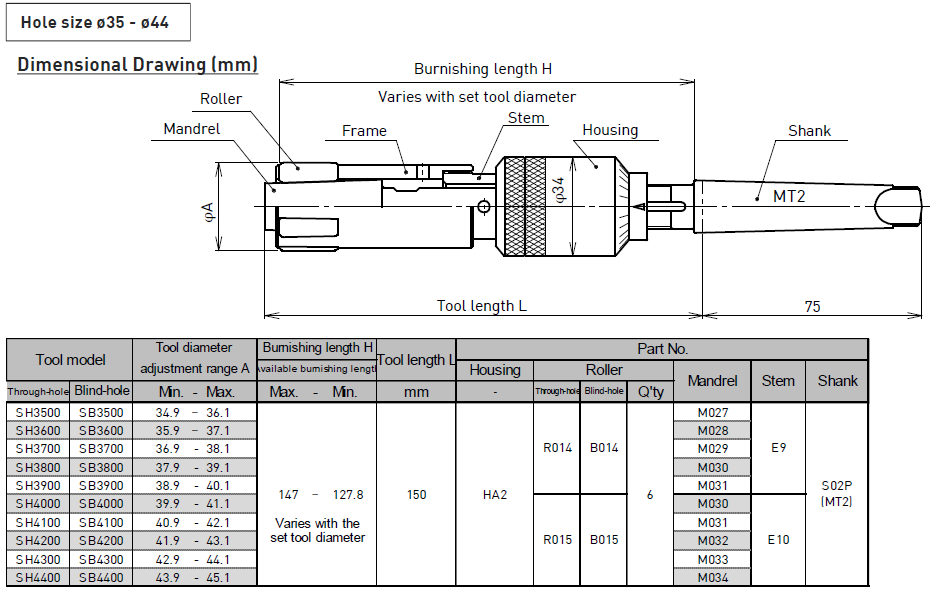

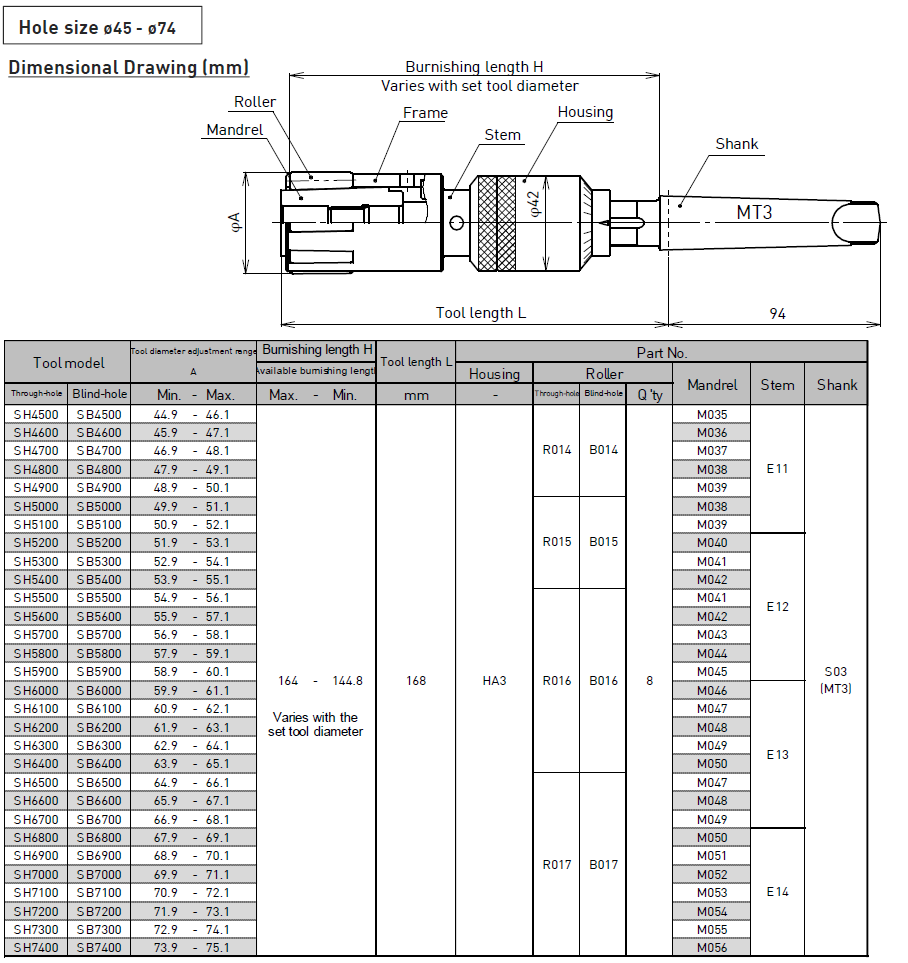

Selection chart (For hole sizeφ4.5-φ74)

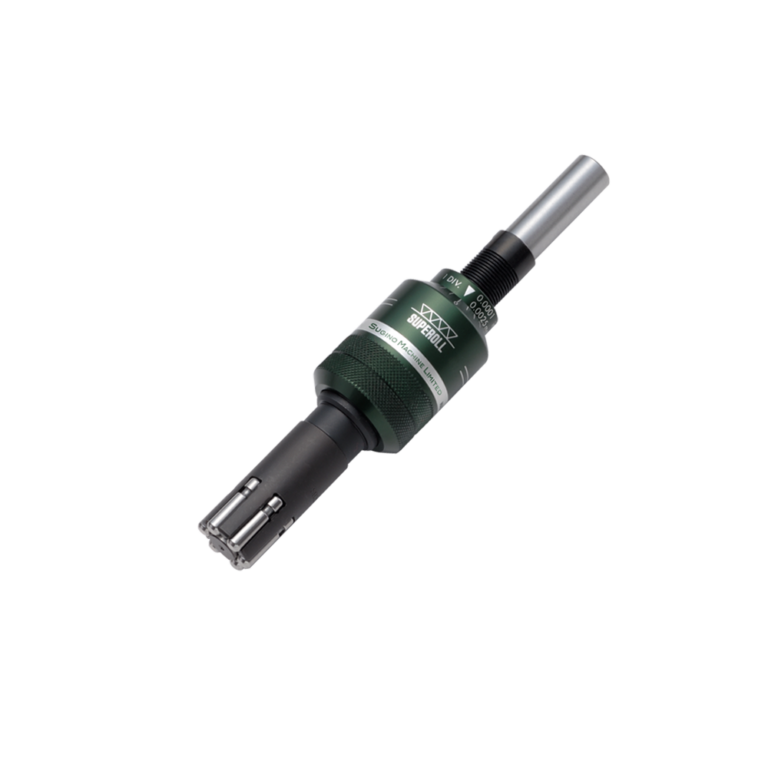

SB [Inner Surface Blind-hole]
SB [Inner Surface Blind-hole]
Product Information
Available workpiece shape: Blind-hole
Available driving units: Machining center, Engine lathe, Turret lathe, Drilling machine, Drilling unit
Hole size:
Standard: φ8.5 – φ200mm
Special: φ6.0mm or more
Burnishing data:

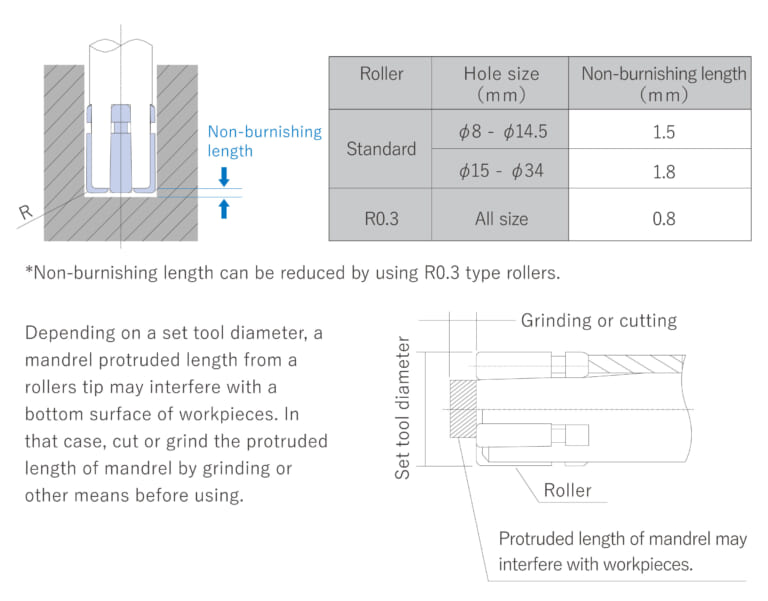

Non-burnishing length:
Selection chart (For hole sizeφ4.5-φ74)

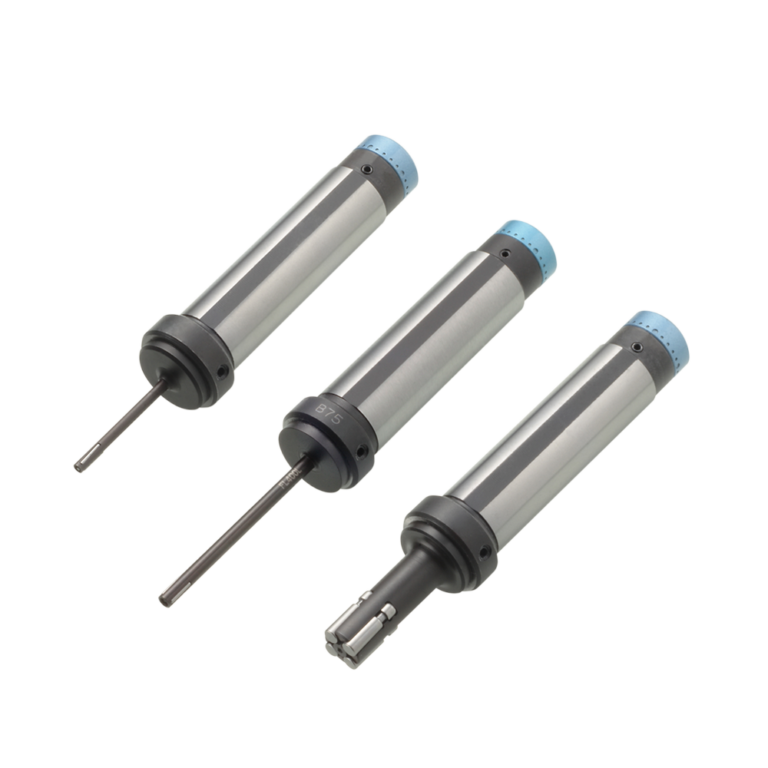

CSL [Inner Surface Through-hole/Blind-hole]
CSL [Inner Surface Through-hole/Blind-hole]
Features
- Speedy burnishing with multiple rollers.
- Shank is standardized based on the typical CNC lathe.
Product Information
Available workpiece shape: Through-hole, Blind-hole
Available driving units: Machining center, Engine lathe, Turret lathe, Swiss lathe
Hole size: φ3-φ14.9
Burnishing length: Standard：30mm, Long: 50mm

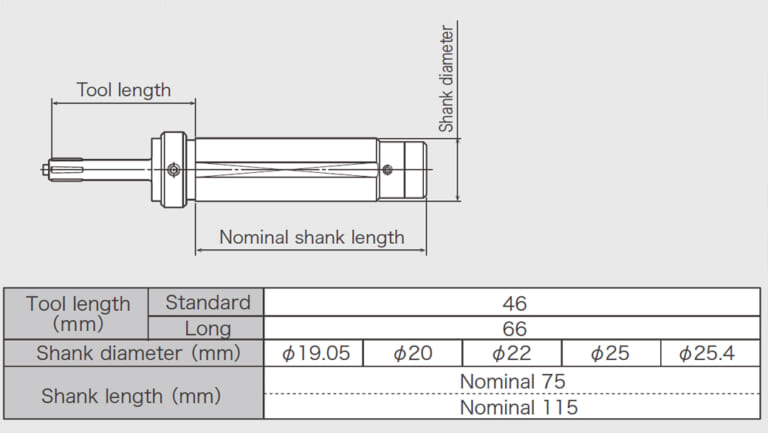

Dimensional drawing:

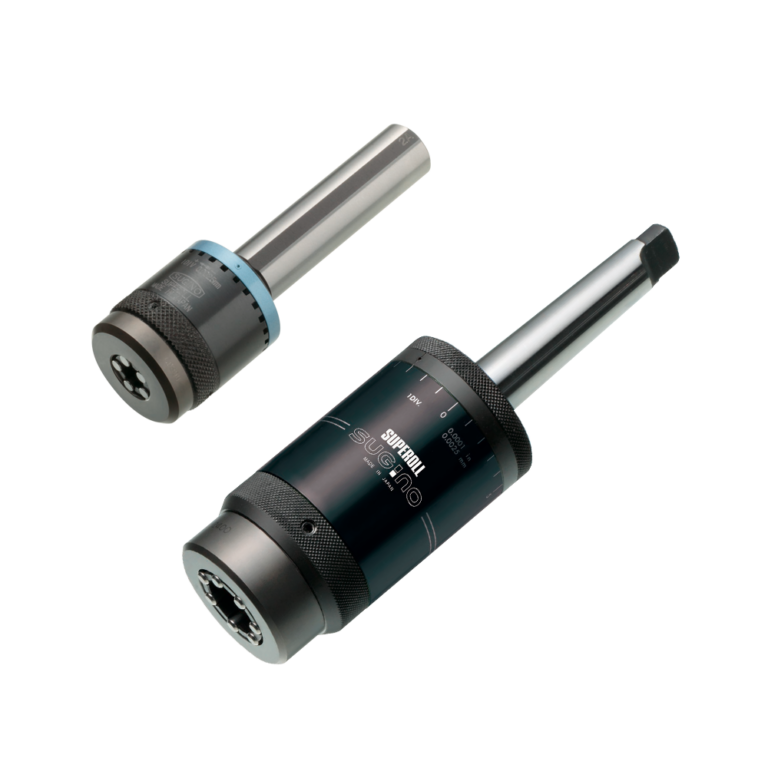

CSA/SA [Shaft / Shaft with step]
CSA/SA [Shaft / Shaft with step]
Features
- Speedy burnishing with multiple rollers.
- CSA/SA type is for shaft outside diameters burnishing.
Product Information
Available workpiece shape: Outer surface (Shaft / Shaft with step)
Available driving units:
Machining center, Engine lathe, Turret lathe, Swiss lathe*, Drilling machine, Drilling unit
*CSA type
Workpiece size: CSA: φ3-φ14.9 SA: φ15-φ64

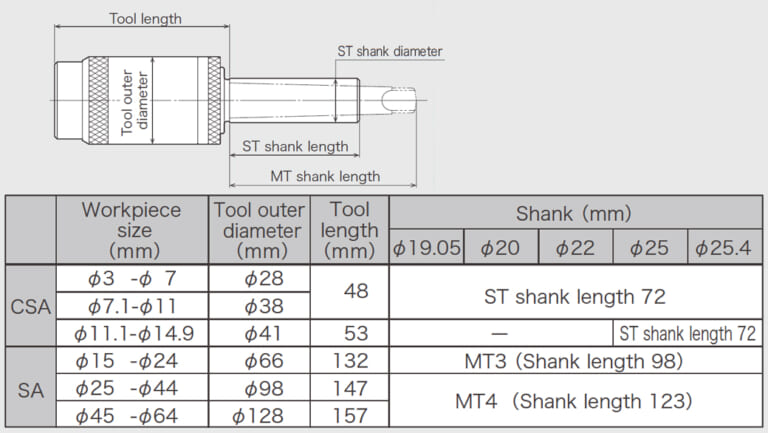

Dimensional drawing:

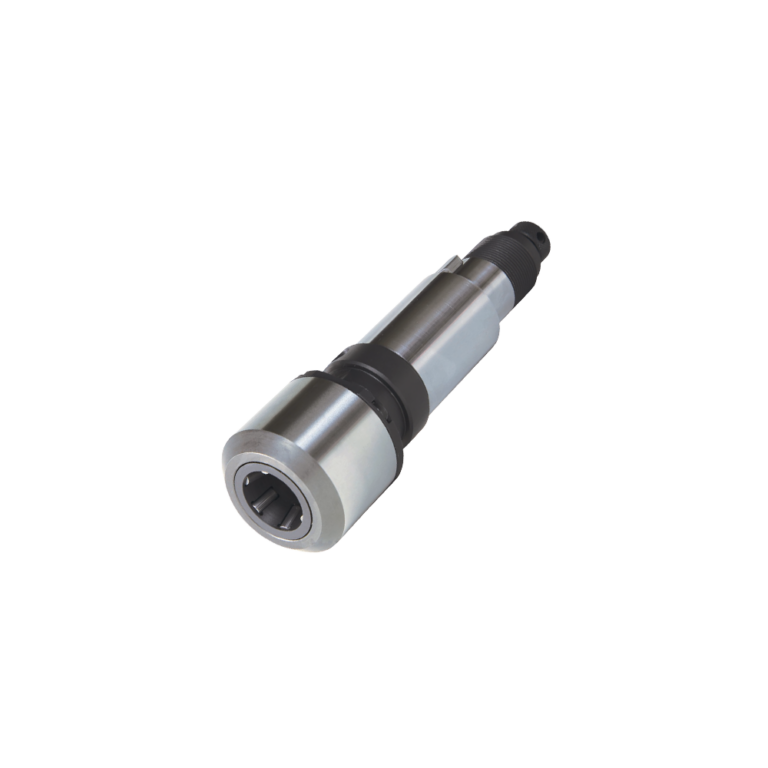

SES [Spherical surface]
SES [Spherical surface]
Product Information
Available workpiece shape: Spherical surface
Available driving units: Engine lathe
*Special tool rest is required due to rotating both workpiece and SUPEROLL SES
Spherical size: Sφ10-Sφ30

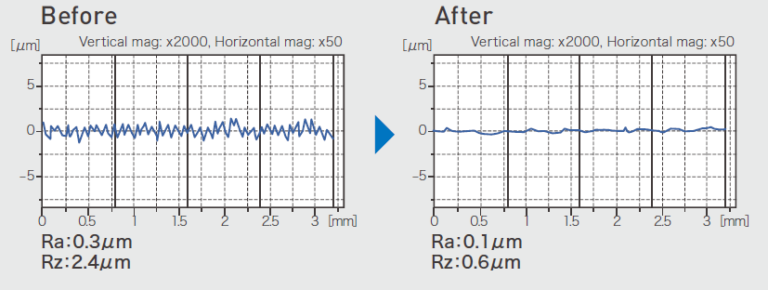

Burnishing data:

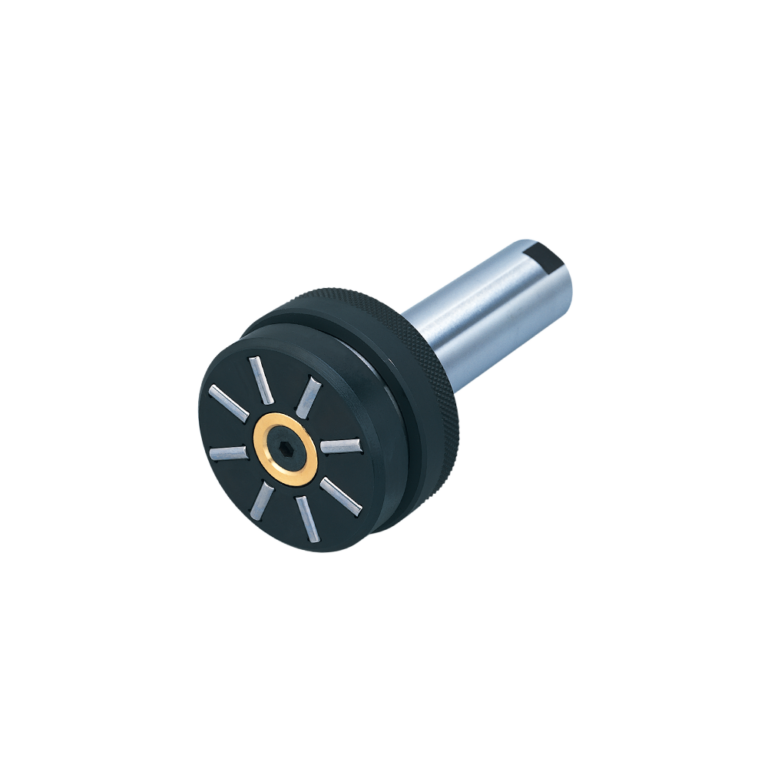

SFP [Flat surface]
SFP [Flat surface]
Features
- SFP is suitable for extensive range of flat surface with similar procedure like a face milling. (Cross milling)
- Unlimited burnishing range for width.
Product Information
Available workpiece shape: Flat surface
Available driving units: Machining center

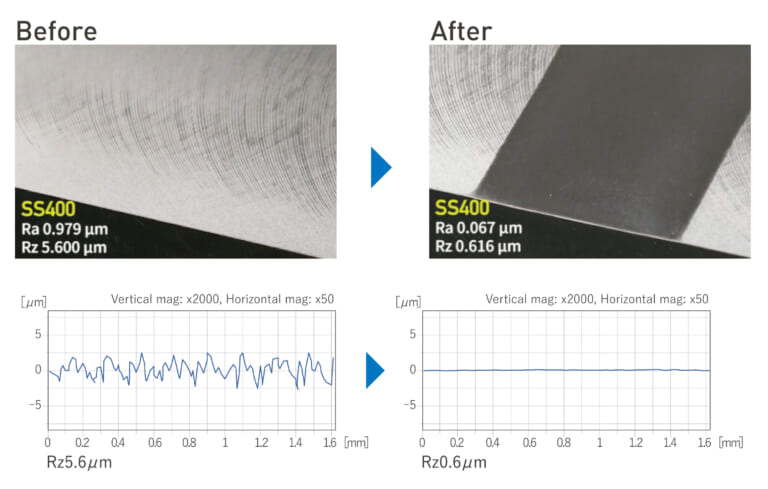

Burnishing data:

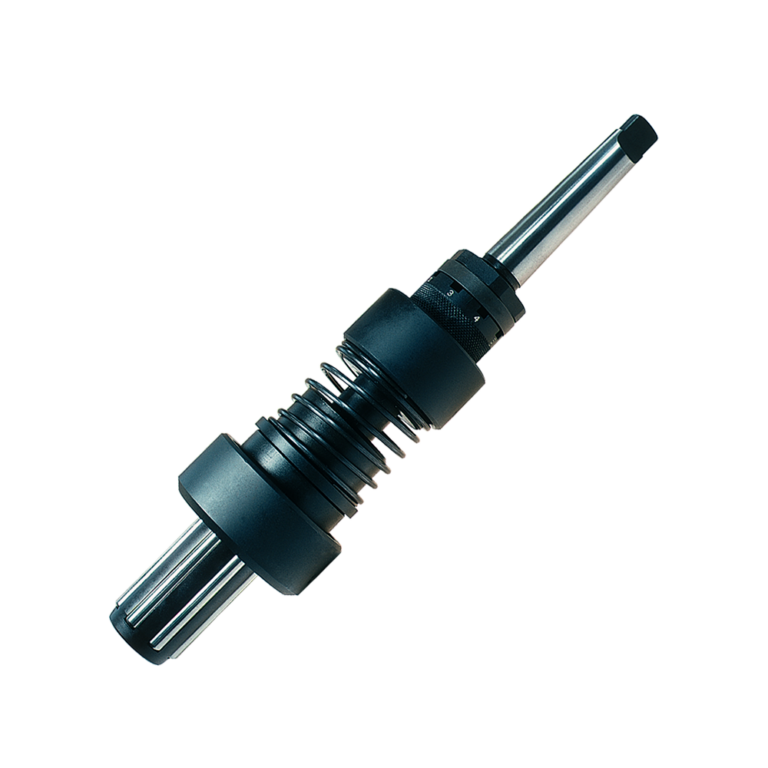

ME [Inner Surface Sizing]
ME [Inner Surface Sizing]
Product Information
- Available workpiece shape: Through-hole
- Available driving units: Machining center, Drilling machine, Drilling unit
* For more information on this product, please contact us.
Application Examples

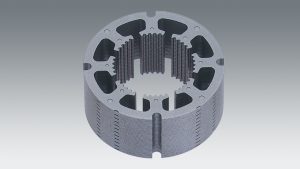

- Motor core inner surfaces
- Stator inner surfaces
- Sintered parts, etc.

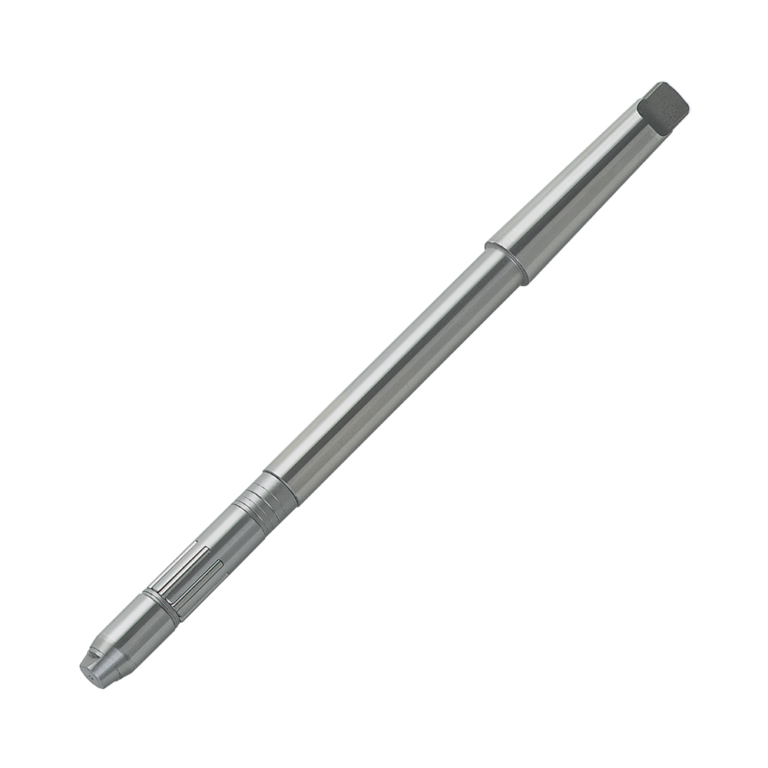

Bearingizer [Inner Surface Through-hole]
Bearingizer [Inner Surface Through-hole]

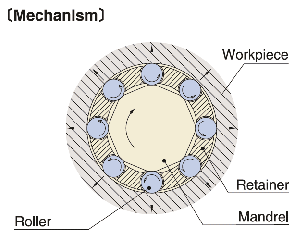

Principle
The mandrel cross-section is polygonal.
Surface hardness is increased by the peening and rolling action caused by the protrusion of the roller, for a hardened, dense and highly durable surface.
Product Information
- Available workpiece shape: Through-hole
- Available driving units: Machining center, Dedicated Driving Engines
*For more information on this product, please contact us.
Application Examples

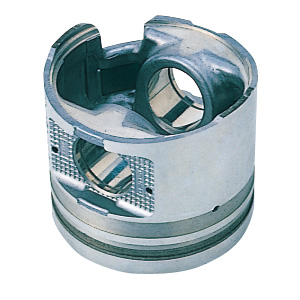

- Piston pin hole processing for all types of engines

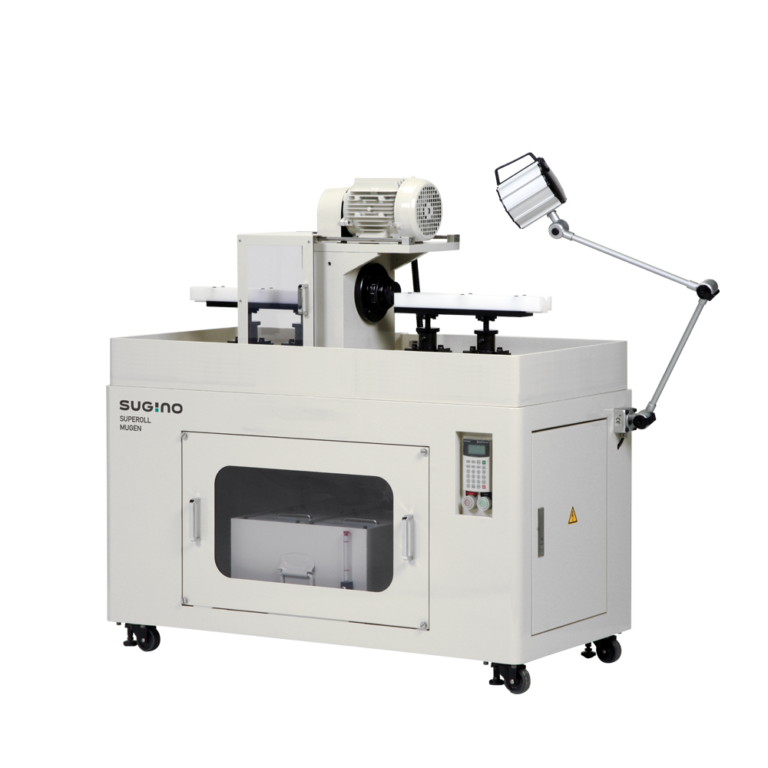

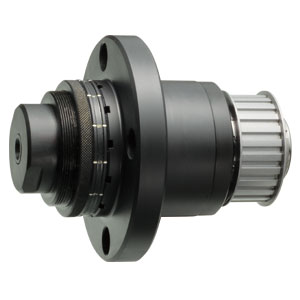

MUGEN [Small Diameter Outer Surface]
MUGEN [Small Diameter Outer Surface]
Principle

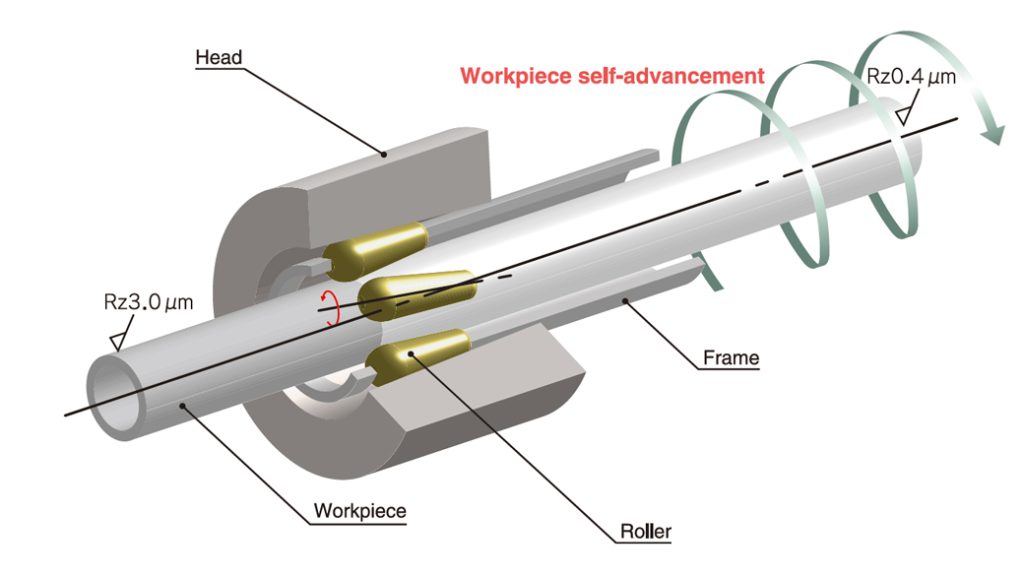

As the roller inside the SUPEROLL head is inclined at an angle, the workpiece is discharged backwards, rotating like a screw when the frame is rotated. (Self-propulsion of workpiece)
SUPEROLL MUGEN does not require a special feed device and, in principle, it can process outer surfaces of unlimited length.
Equipped with a 0.0025 mm (1 scale mark) micro-adjustment mechanism.
The optimal SUPEROLL head can be selected according to the workpiece dimensions.
SUPEROLL head for the SUPEROLL MUGEN
Appearance:

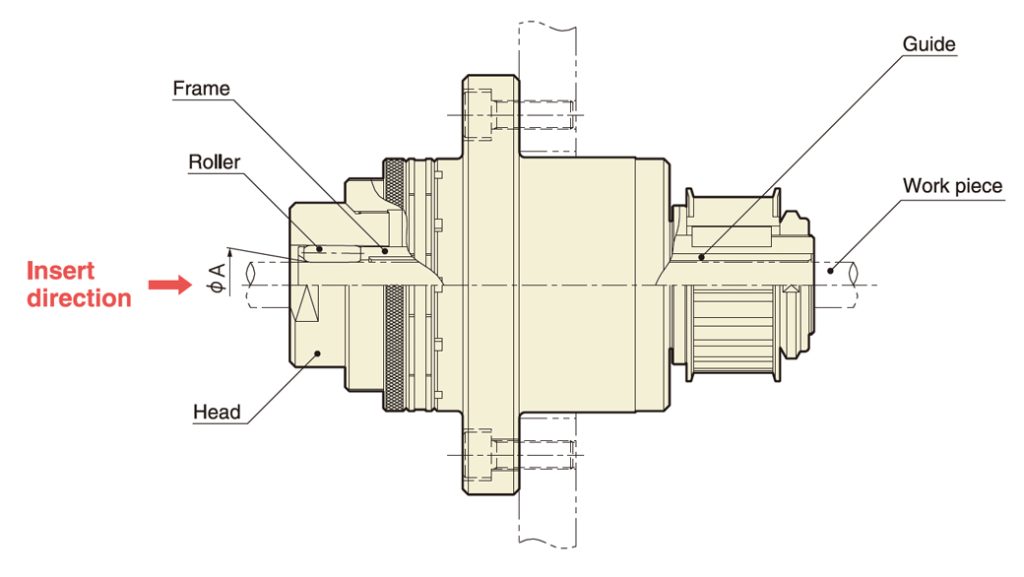

Names of SUPEROLL head parts:

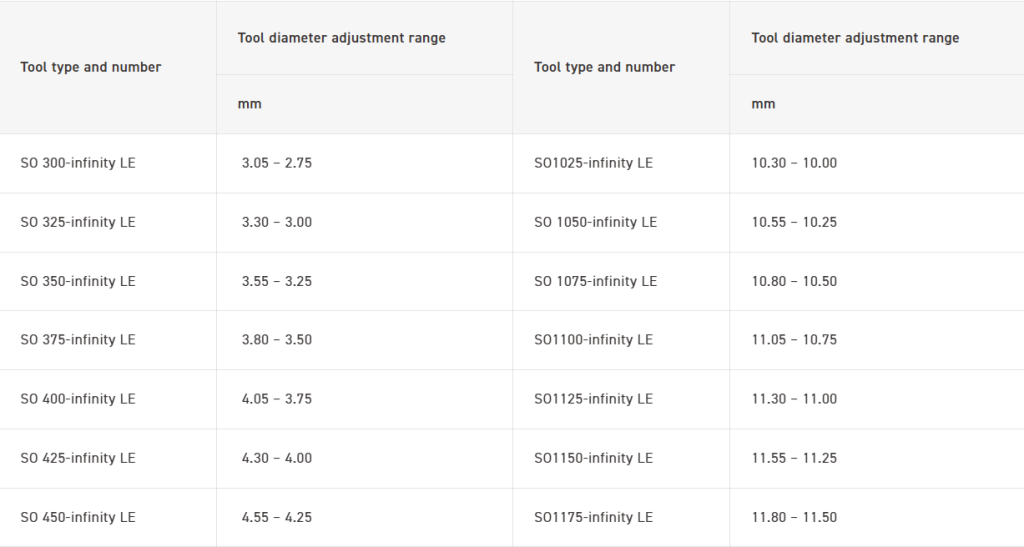

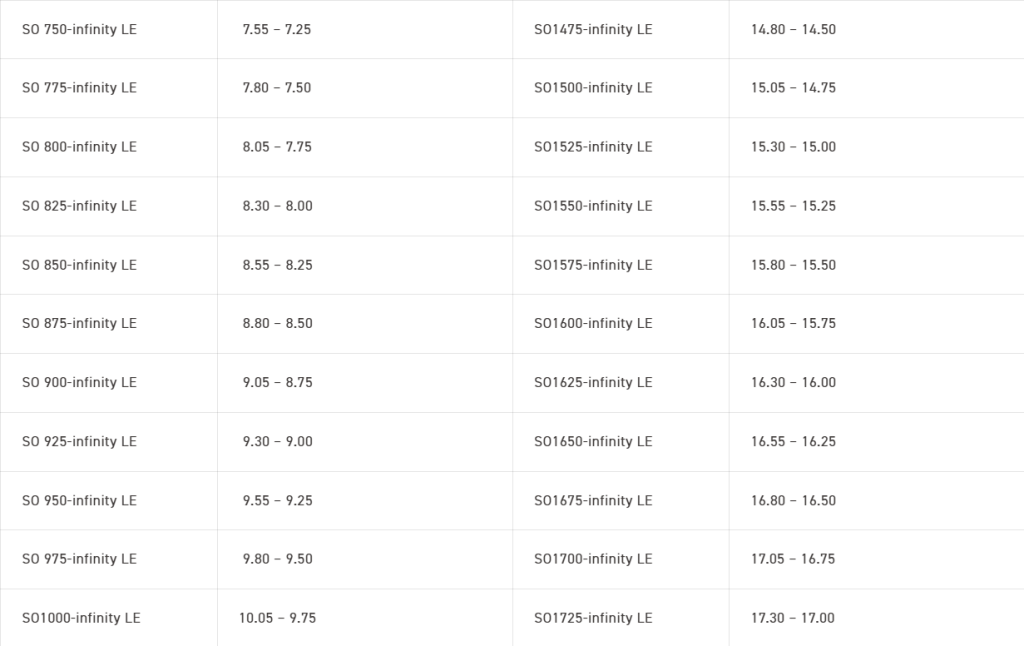

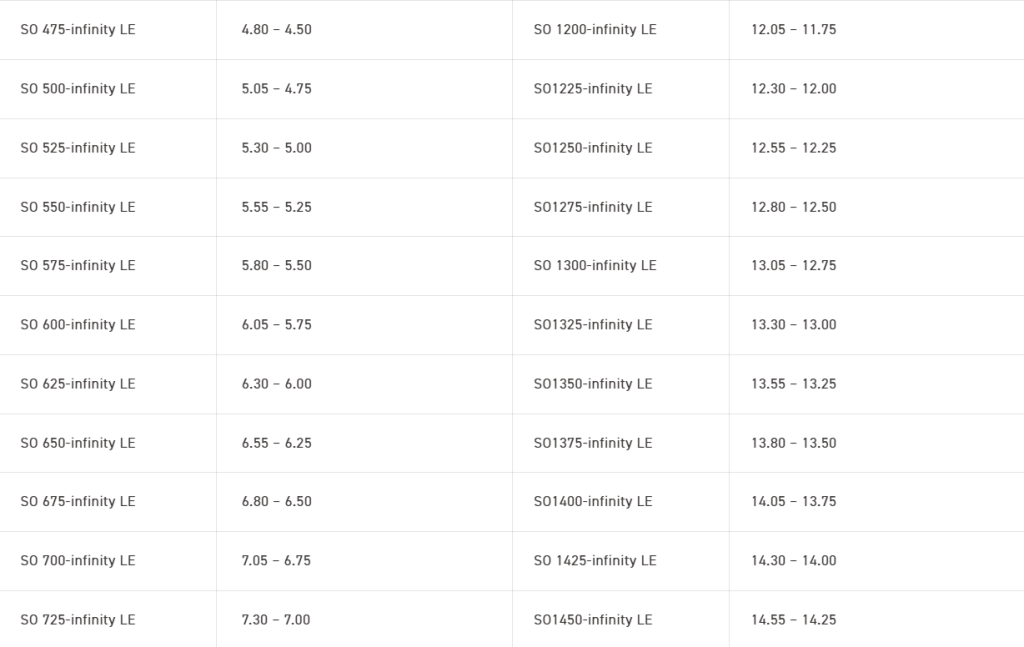

SUPEROLL head specifications

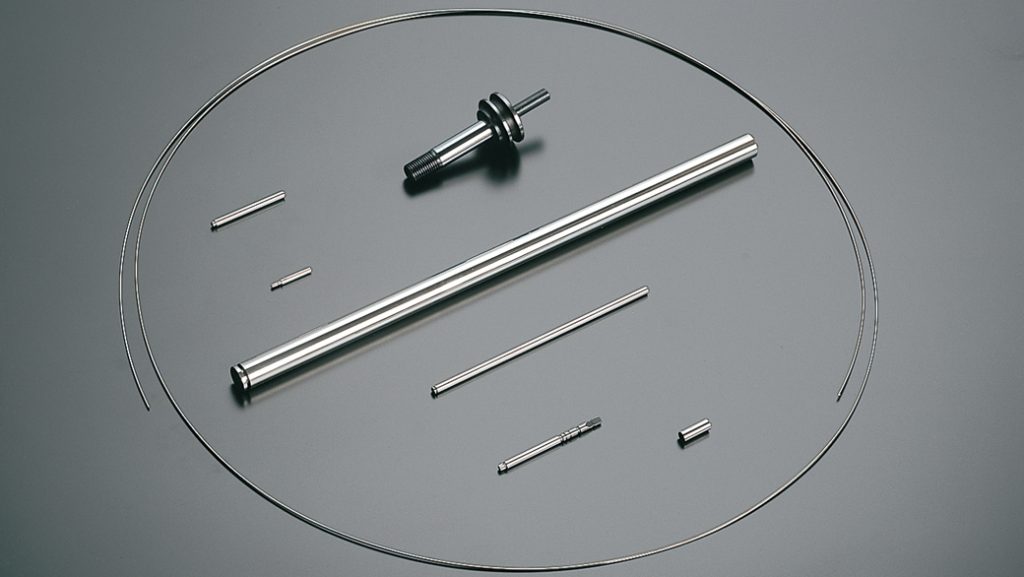

Application Examples
- Guide shaft
- Piston rod
- Motor shaft
- Brake piston, etc.
