Reforming Type
SH-MAC [Through-hole] with automatic tool diameter adjuster
SH-MAC [Through-hole] with automatic tool diameter adjuster
Features

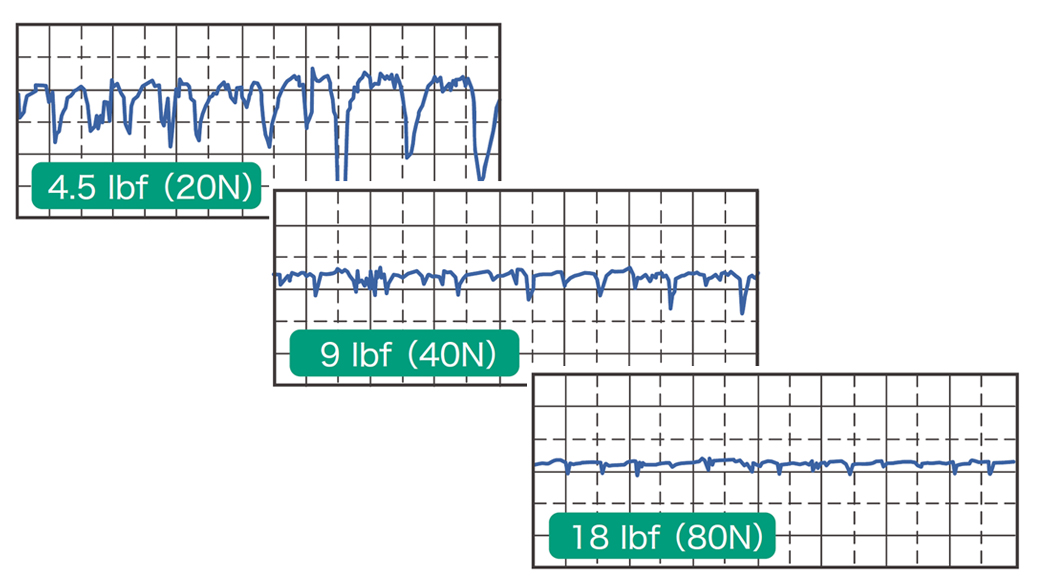

Working pressure adjustment function
Working pressure can be adjusted arbitrarily, which makes dimples depth of finished surface adjustable.

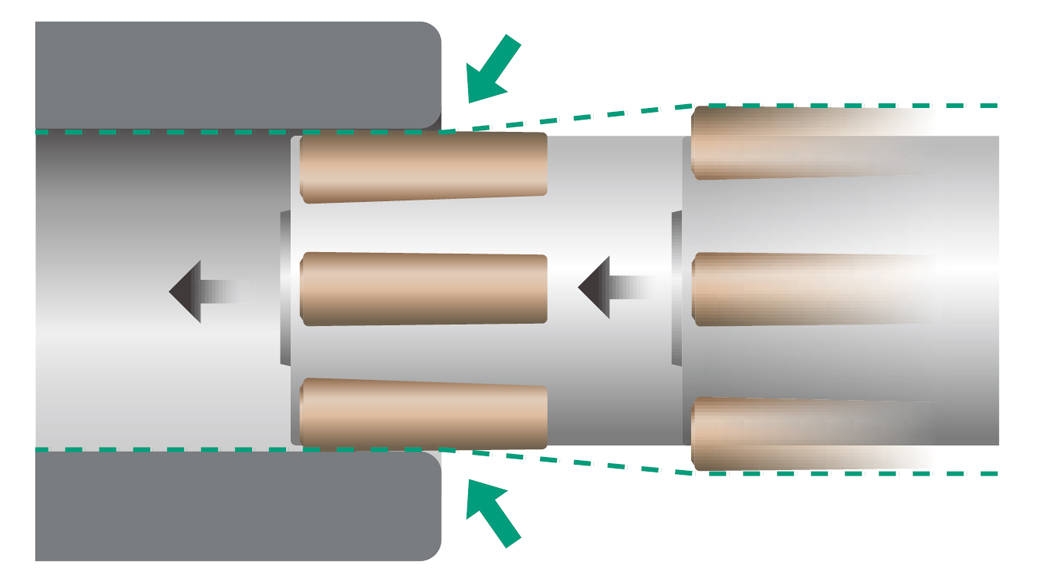

Automatic tool diameter adjustment feature
Tool diameter tracks to the reduction direction with in a range of up to 0.2mm (0.008″) from a setting tool diameter.
Product Information
- Available workpiece shape: Through-hole
- Available driving units: Machining center, Engine lathe, Turret lathe, Drilling machine, Drilling unit
- Hole size: φ4.5-φ44

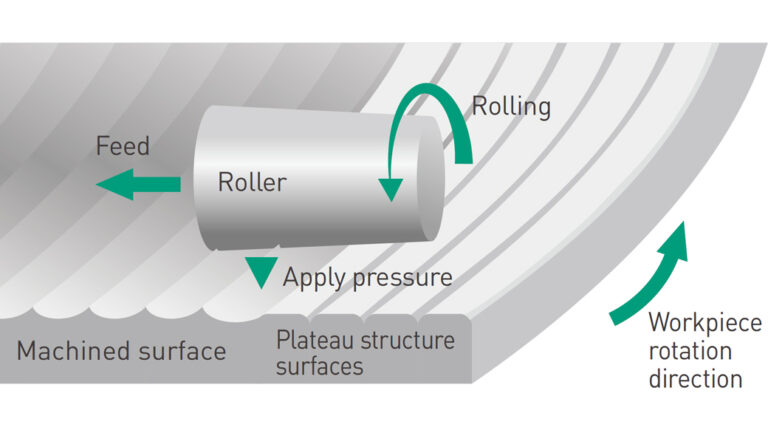

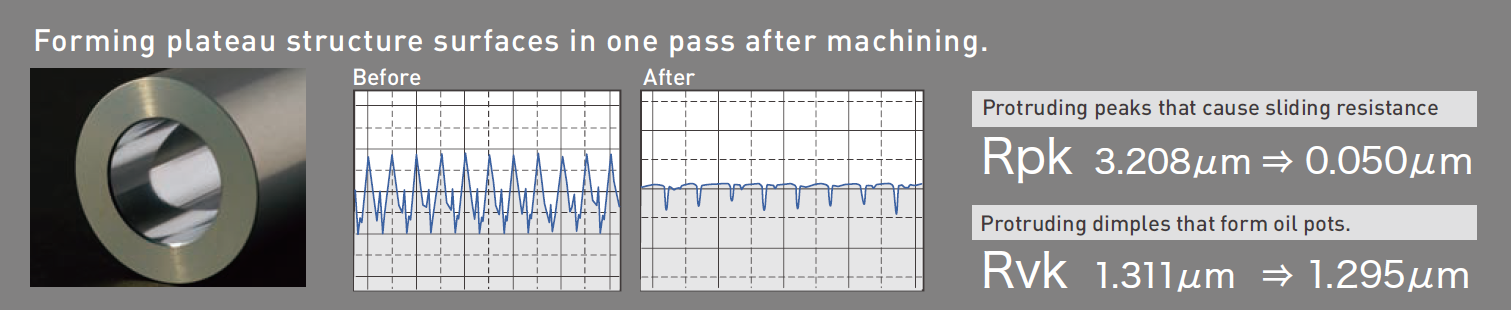

Burnishing image:

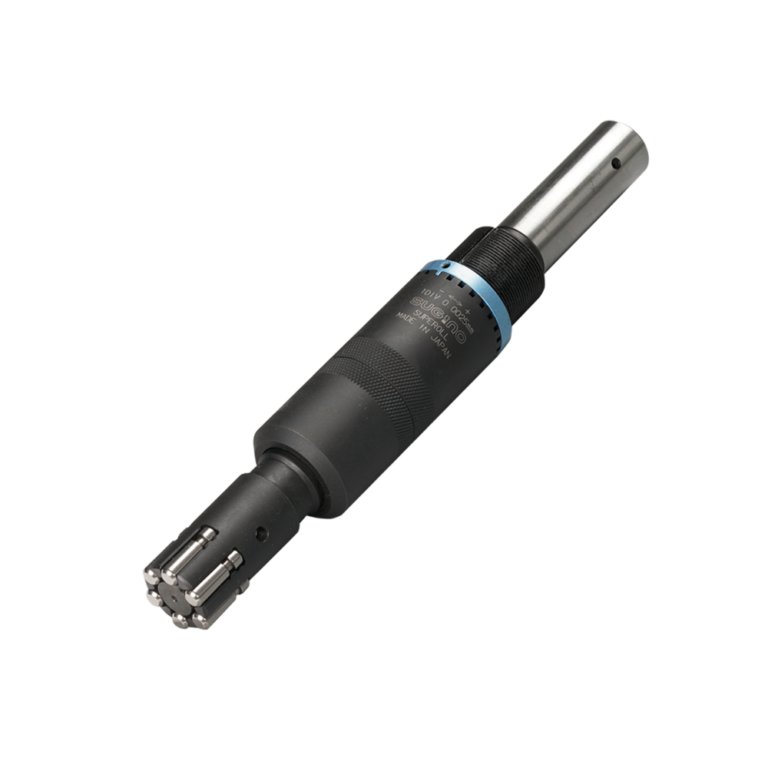

SB-MAC [Blind-hole] with automatic tool diameter adjuster
SB-MAC [Blind-hole] with automatic tool diameter adjuster
Features
Working pressure adjustment function
Working pressure can be adjusted arbitrarily, which makes dimples depth of finished surface adjustable.
Automatic tool diameter adjustment feature
Tool diameter tracks to the reduction direction with in a range of up to 0.2mm (0.008″) from a setting tool diameter.
Product Information
- Available workpiece shape: Blind-hole
- Available driving units: Machining center, Engine lathe, Turret lathe, Drilling machine, Drilling unit
- Hole size: φ8-φ44

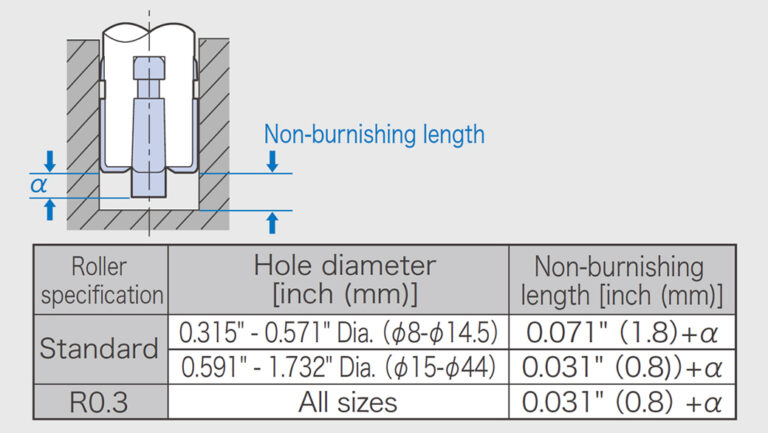

Non-burnishing length:
*Depending on the setting tool diameter, the mandrel protruded length from the roller tip may interfere with the bottom surface of workpieces. In that case, cut or grind the protruded length of the mandrel by grinding or other means before using. For more details, please scan the two-dimensional bar code on the right and refer to Selection chart & Burnishing conditions.
Product Information
- Available workpiece shape: Blind-hole
- Available driving units: Machining center, Engine lathe, Turret lathe, Drilling machine, Drilling unit
- Hole size: φ8-φ44
Non-burnishing length:
*Depending on the setting tool diameter, the mandrel protruded length from the roller tip may interfere with the bottom surface of workpieces. In that case, cut or grind the protruded length of the mandrel by grinding or other means before using. For more details, please scan the two-dimensional bar code on the right and refer to Selection chart & Burnishing conditions.
BP [Through-hole/Flat surface/Shaft]
BP [Through-hole/Flat surface/Shaft]
Features

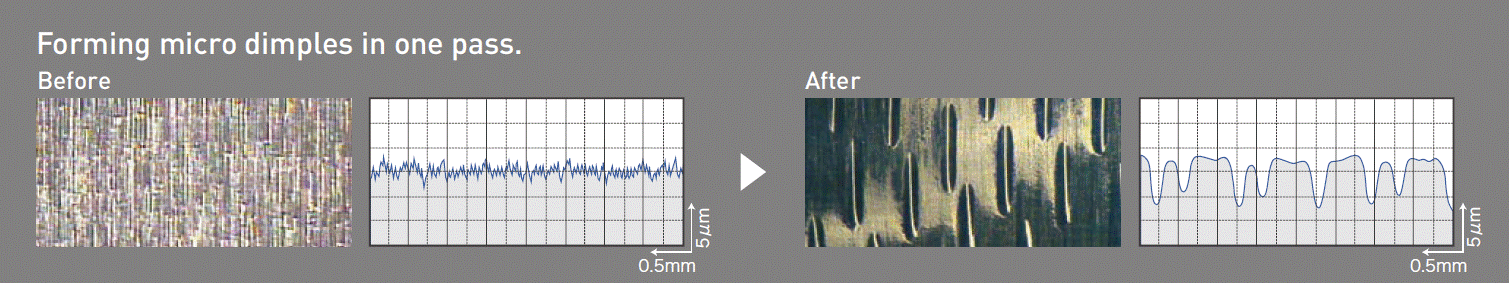

SUPEROLL BP can form micro dimples (dent) of tenth of a few μm depth on a metal surface.

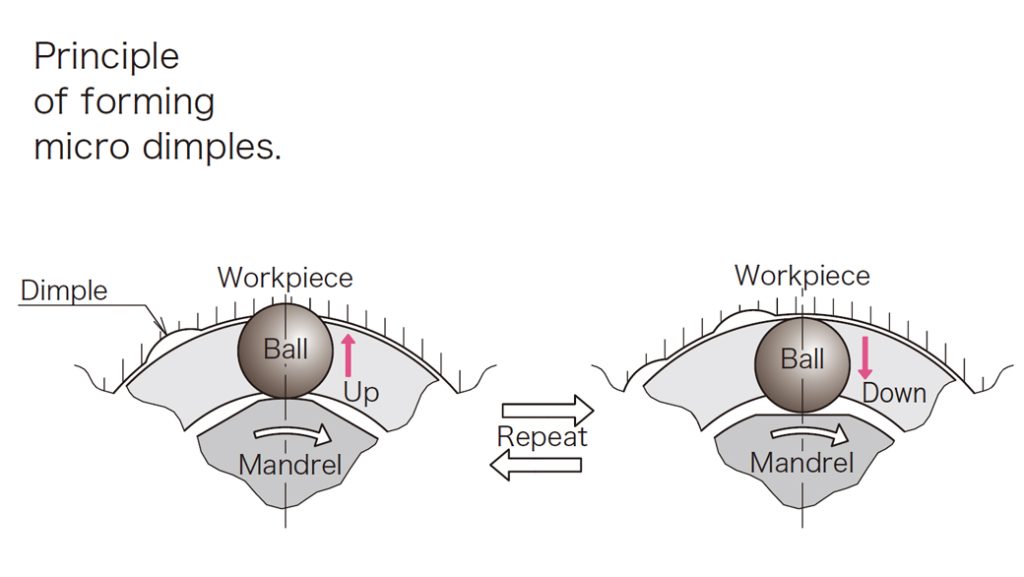

It allows to form micro dimples at high speed by giving predetermined rotation and feed, and projecting balls embedded in it regularly.

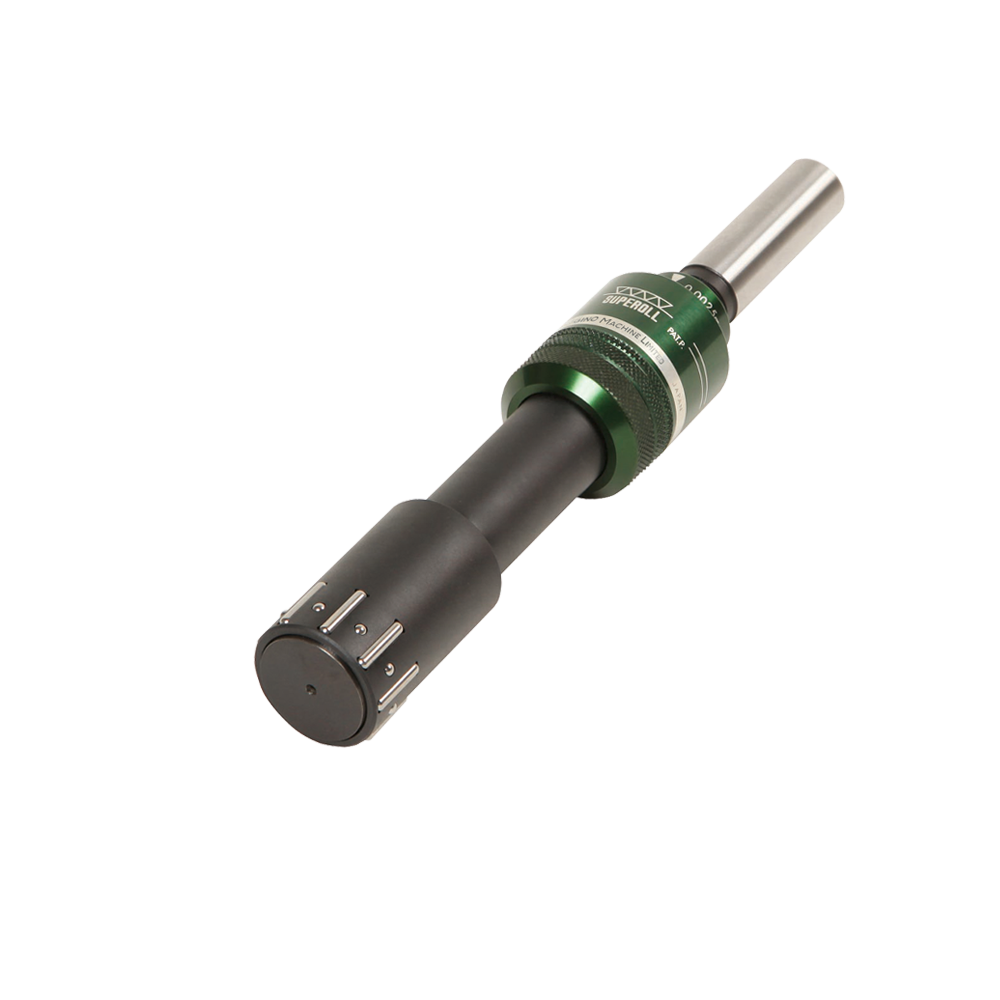

BPH (for Through-hole)
- BPH is a micro dimples forming SUPEROLL for inner surface and the design is based on SUPEROLL SH.
BPH can form specific pattern of micro dimples at inner surface in one pass. - Available workpiece shape: Through-hole
- Available driving units: Machining center, Engine lathe, Turret lathe, Drilling machine, Drilling unit
- Hole size:
Steel: φ5mm or more
Aluminum・Copper: φ4mm or more

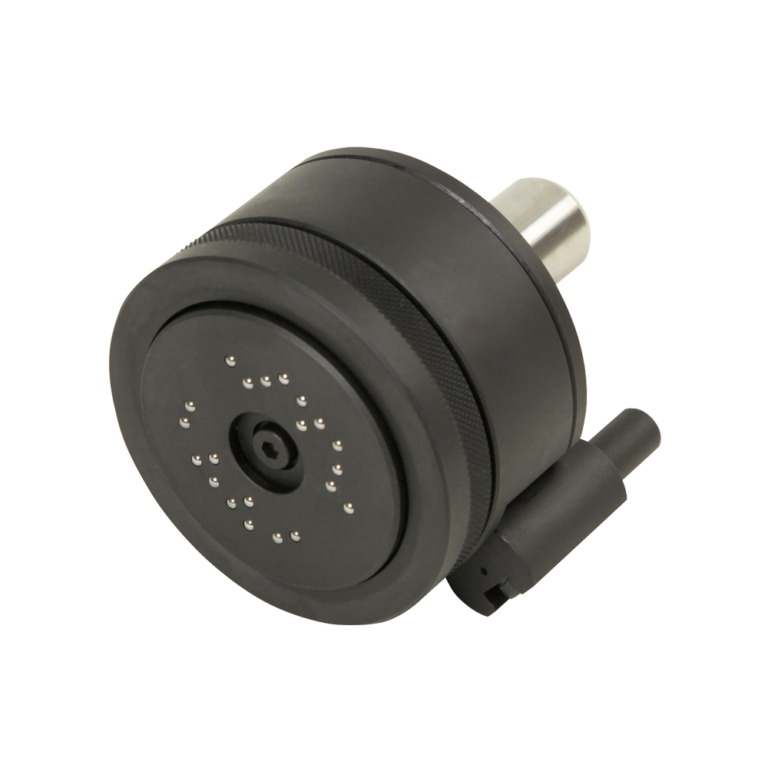

BPP (for Flat surface)
- BPP is a micro dimples forming SUPEROLL by attaching a machining center or milling machine.
BPP can form dot pattern micro dimples on flat surface, and gain the same effect as hand scraping. - Available workpiece shape: Flat surface
- Available driving units: Machining center
- Available burnishing range:
No limitation (If there is any steps, non-burnishing area will be arisen at the boundary.)

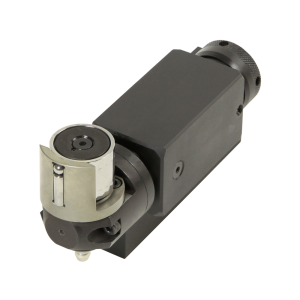

BPSR (for Shaft / Shaft with step)
- BPSR is a micro dimples forming SUPEROLL for outer surface and the design is based on SUPEROLL SR5A.
It can be burnishing various diameters and workpieces by attaching to lathes. - Available workpiece shape: Outer surface(Shaft、Shaft with step)
- Available driving units: Engine lathe, Turret lathe
- Workpiece size: φ10mm or more
(Available diameter varies depending on workpiece length.)
