Single Roller Type
SR5A [Outer Surface Shaft/Shaft with step/End surface]
SR5A [Outer Surface Shaft/Shaft with step/End surface]
Features
- Single Roller type SUPEROLL designed for use with lathes.
- A single roller designed for workpieces of various shapes and sizes.
Product Information
- Available workpiece shape: Outer surface (Shaft, Shaft with step, End surface)
- Available driving units: Engine lathe, Turret lathe
- Available burnishing range: Workpiece size: φ10mm or more

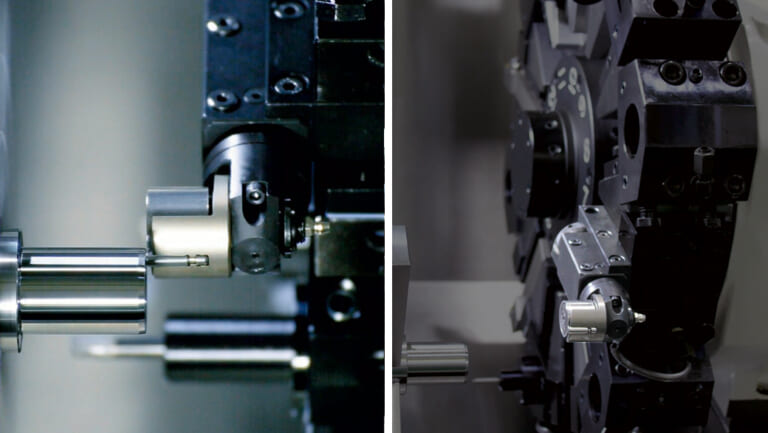

Burnishing scene:

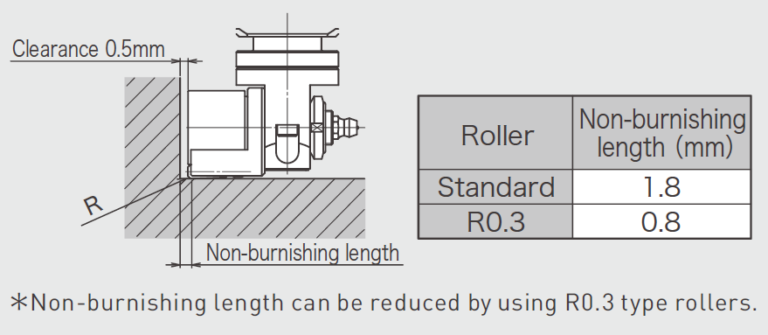

Non-burnishing length:

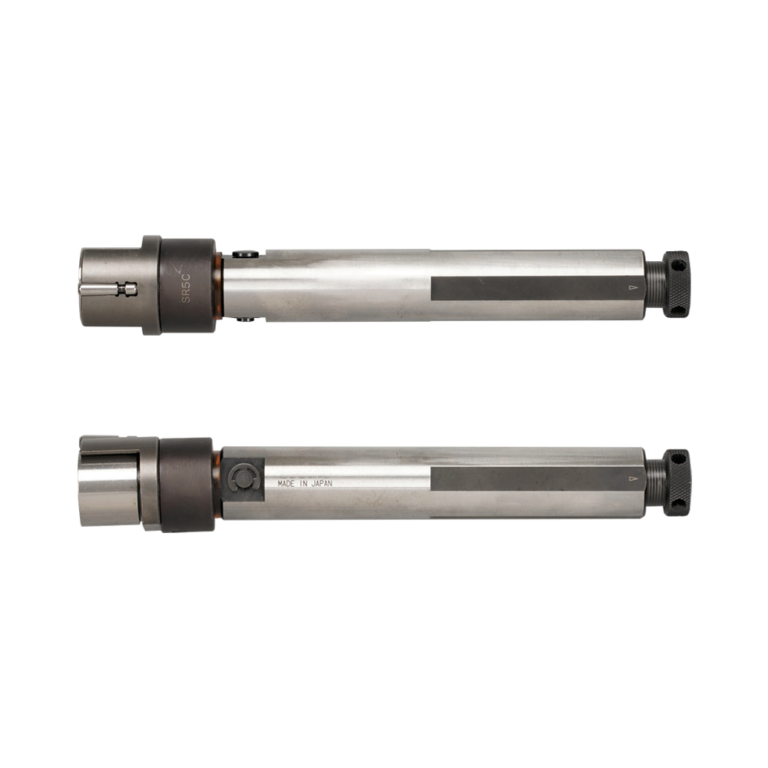

SR5C [Inner Surface Through-hole/Blind-hole]
SR5C [Inner Surface Through-hole/Blind-hole]
Features
- Single Roller type SUPEROLL designed for use with lathes.
- It’s available for different size of workpieces with just only SUPEROLL SR5C.
Product Information
- Available workpiece shape: Through-hole, Blind-hole
- Available driving units: Engine lathe, Turret lathe
- Available burnishing range:
Hole size: φ36mm or more
Max burnishing length: 100mm

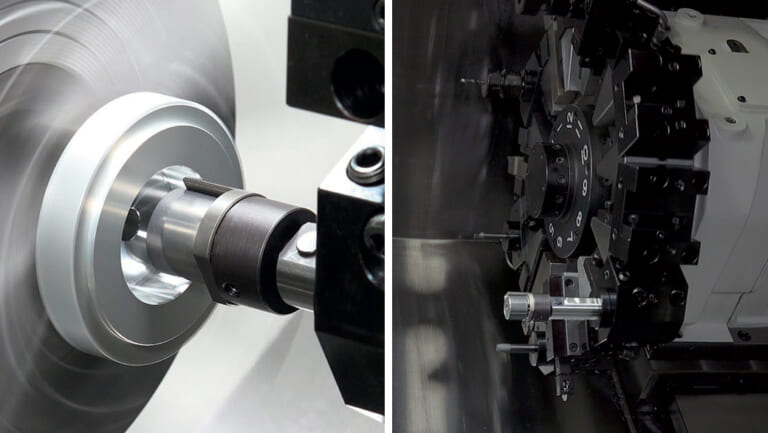

Burnishing scene:

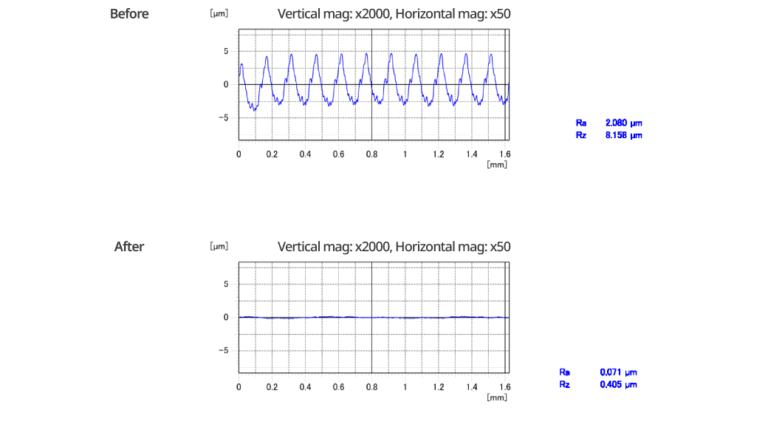

Burnishing data：
Ra 2.080µm ⇒ Ra 0.071µm
Rz 8.158µm ⇒ Rz 0.405µm

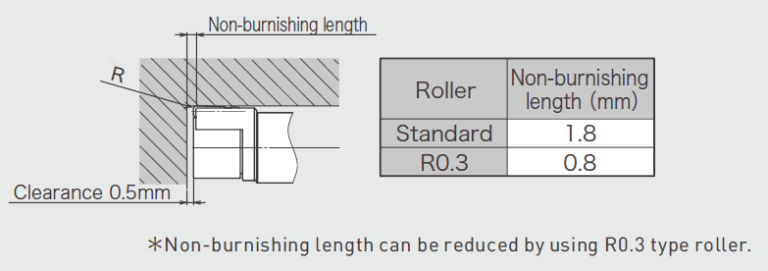

Non-burnishing length：
SR16M [Outer Surface Shaft/End surface/Taper shaft/R surface]
SR16M [Outer Surface Shaft/End surface/Taper shaft/R surface]
Features

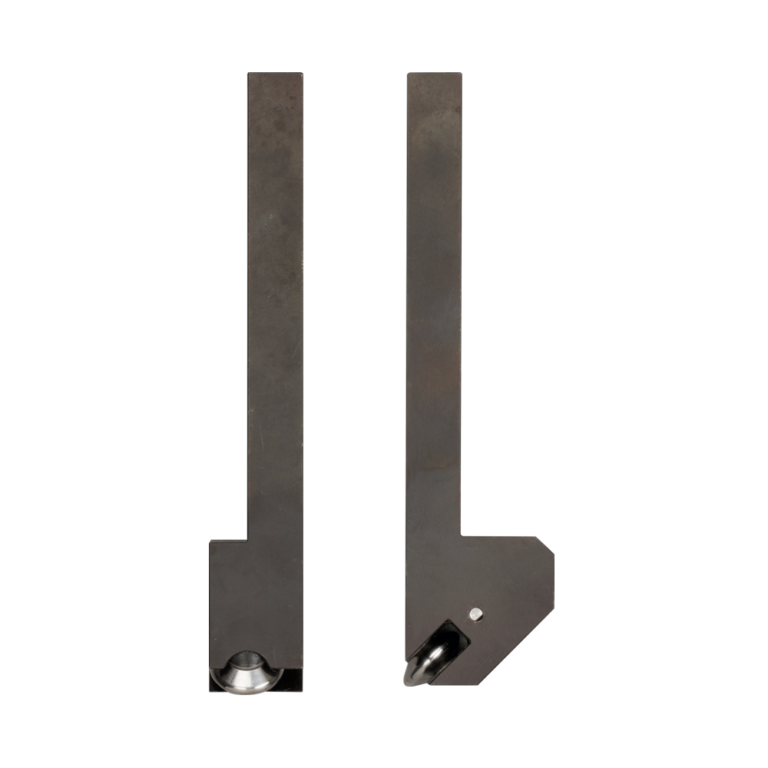

- Without changing a tool posture, SR16M can burnish various shapes of outer and edge surface.
- SR16M is compact tool which can be attached to Swiss lathe.
Product Information
- Available workpiece shape: Outer surface (Shaft, End surface, Taper shaft, R surface)
- Available driving units: Engine lathe, Turret lathe, Swiss lathe
- Available burnishing range: No limitation (Except for small size cantilever)

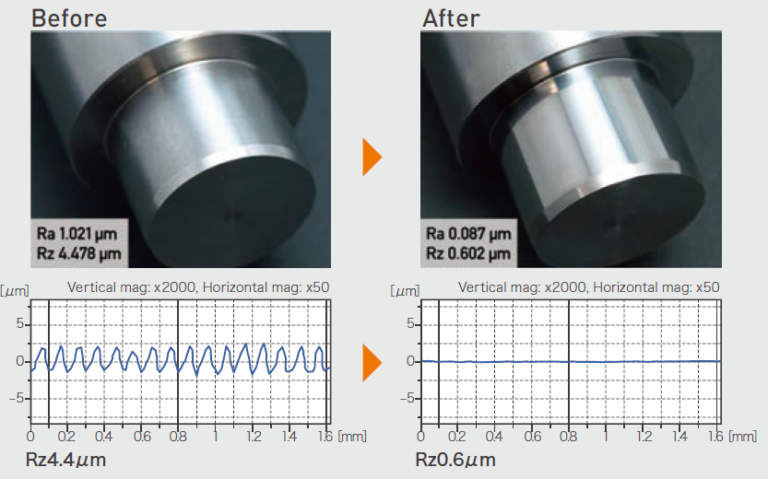

Burnishing data:

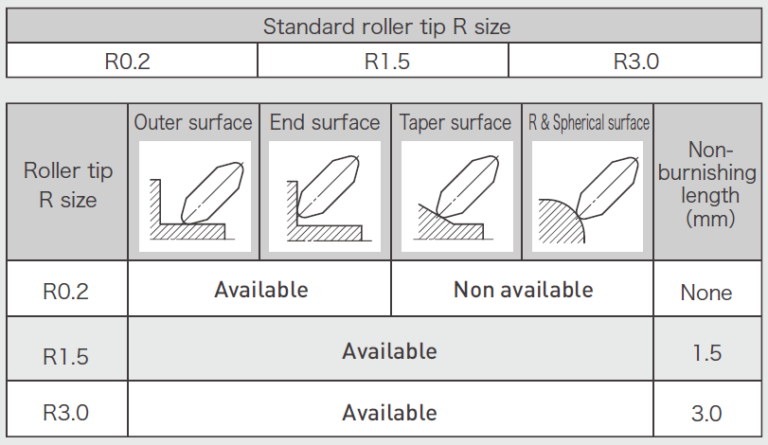

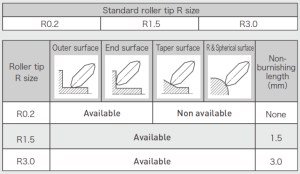

Roller tip R size：
Select Roller tip R size in accordance with workpiece or requested burnishing conditions.
Shank:

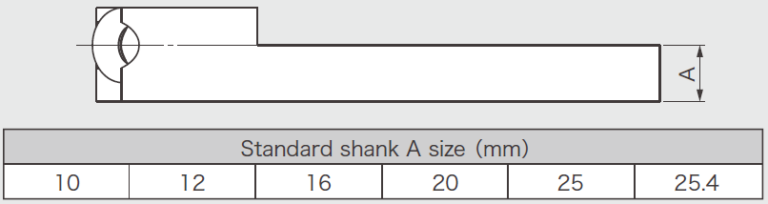

- For more detail about a dimension of shank, please show the selection chart.
- For request about special Shank size, contact your nearest sales office.

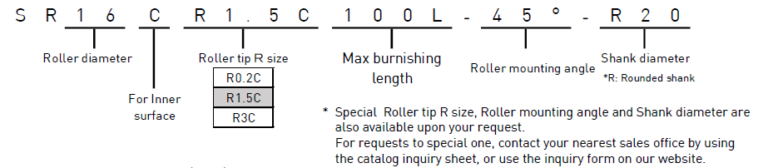

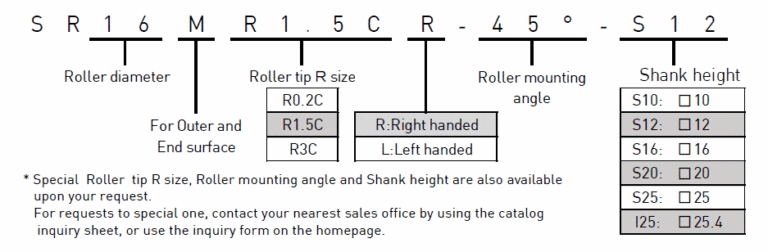

Specifying tool model：

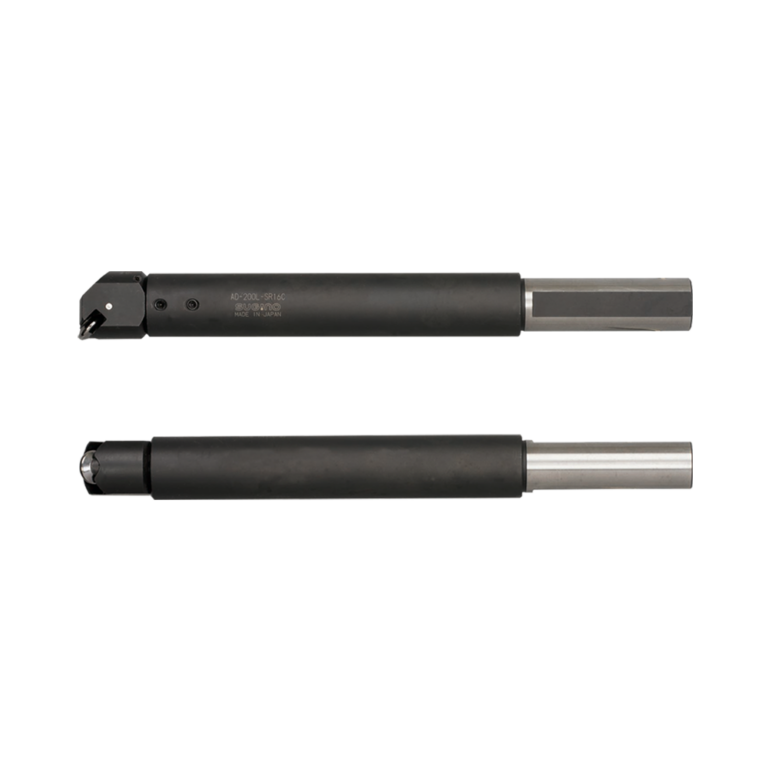

SR16C [Inner Surface/Through-hole/Blind-hole]
SR16C [Inner Surface/Through-hole/Blind-hole]
Product Information
- Available workpiece shape: Through-hole, Blind-hole
- Available driving units: Engine lathe, Turret lathe
- Available burnishing range: Hole size: φ35mm or more

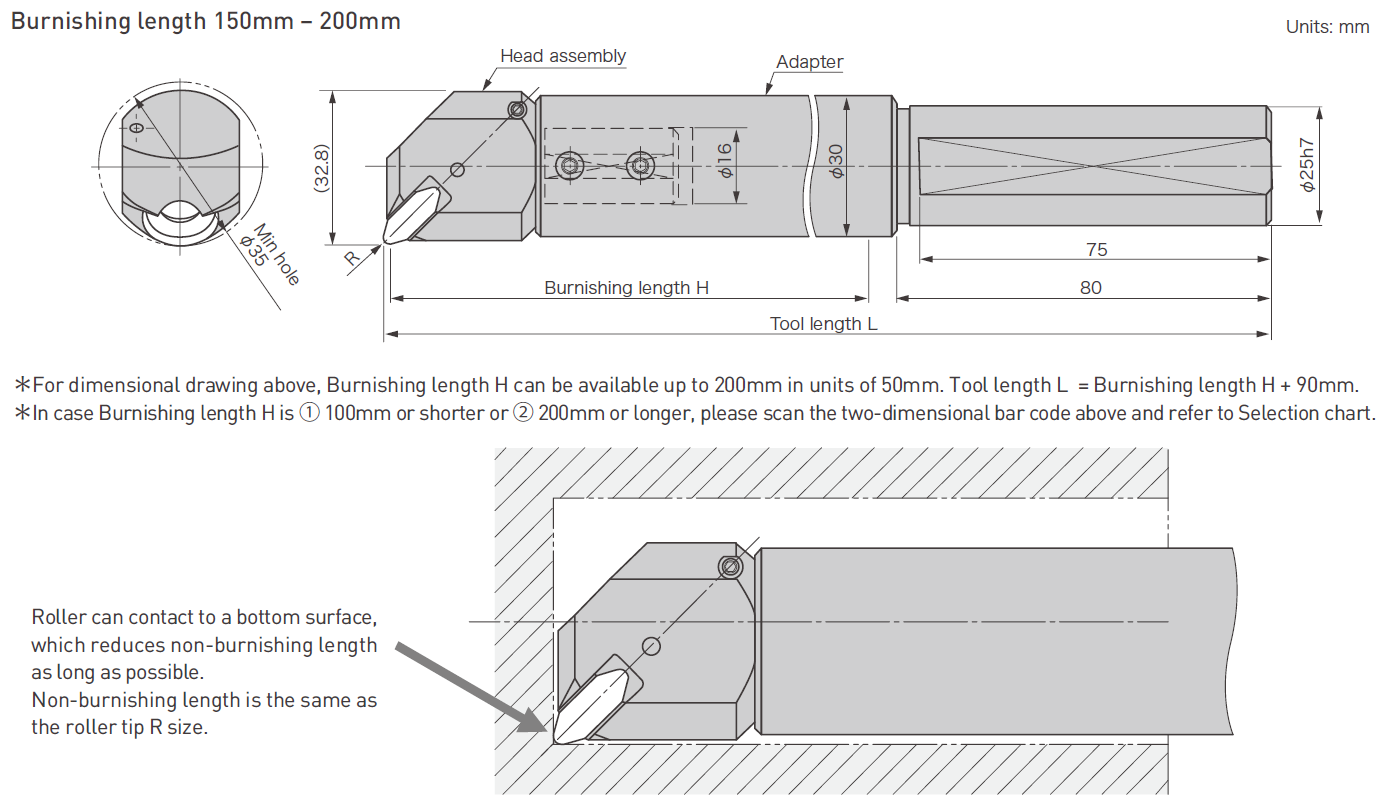

*Vary depending on the burnishing length. - Roller tip R: Select Roller tip R size in accordance with workpiece or requested burnishing conditions.

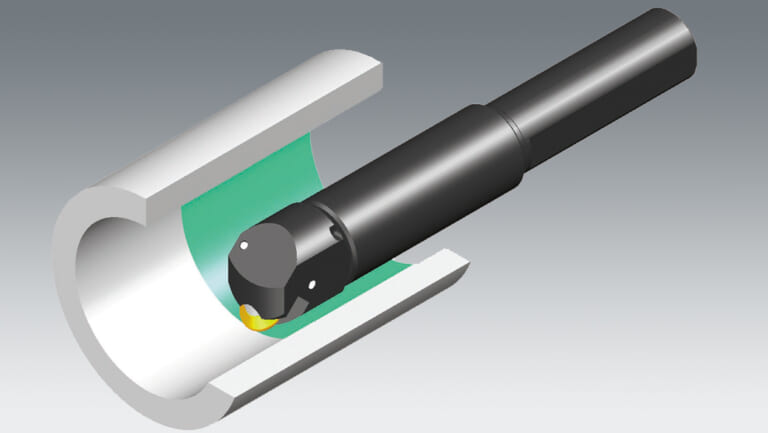

Burnishing image：
Specification example：
Specifying tool model：

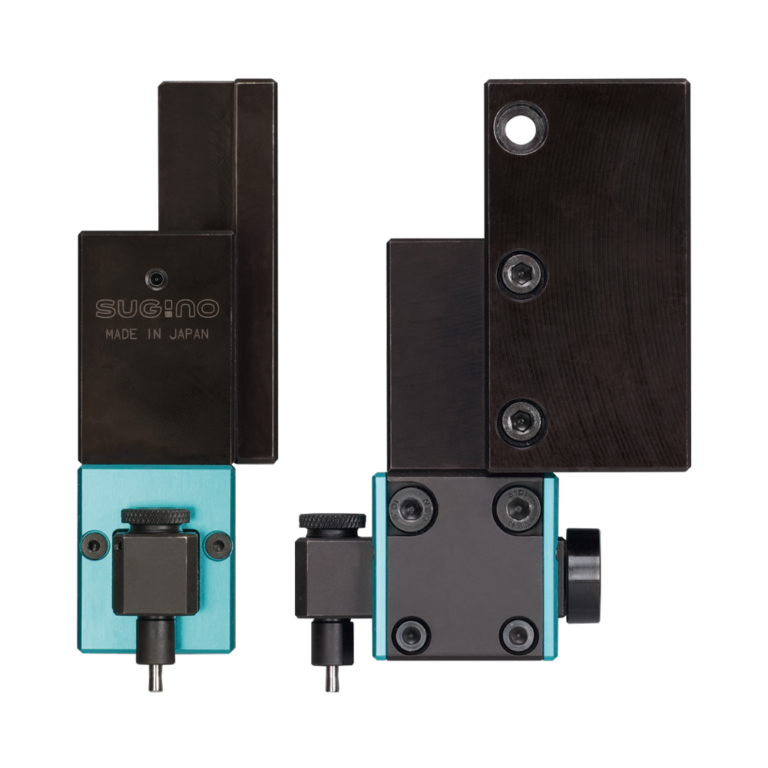

SR3Z [Outer groove side]
SR3Z [Outer groove side]
Features
- It’s designed for use with lathes, for burnishing with a single roller.
- Groove side walls can be burnished with a single tool.
- Stable finishing can be achieved by adjustable load.
- Applicable for a wide range of materials, from steel to non-ferrous metals
- The roller corner radius of R0.2 minimizes the non-burnishing area.
- Achieves a roughness of Rz 0.8 µm or less, which is difficult to accomplish with machining.
Product Information
- Available workpiece shape: Outer groove bottom
- Available driving units: Engine lathe, Turret lathe

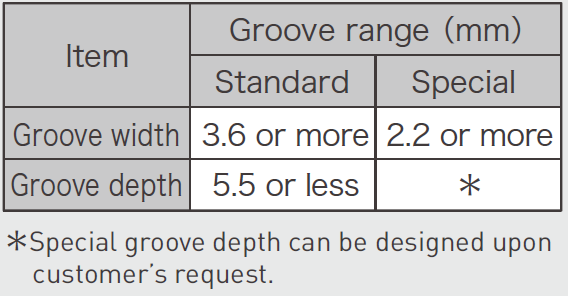

Available groove range:

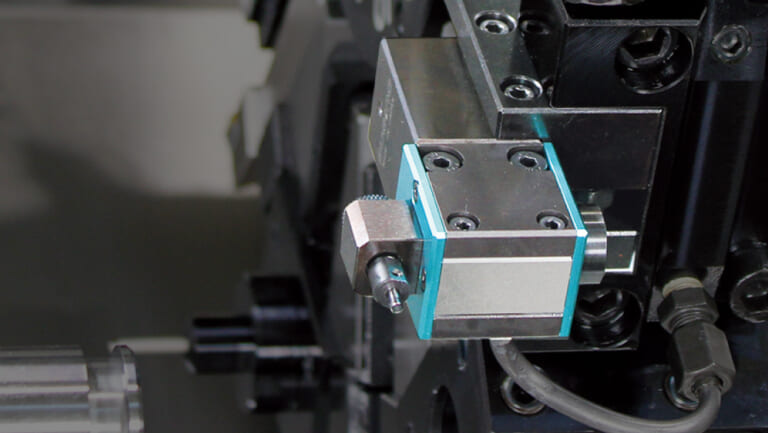

SR3Z attachment scene:

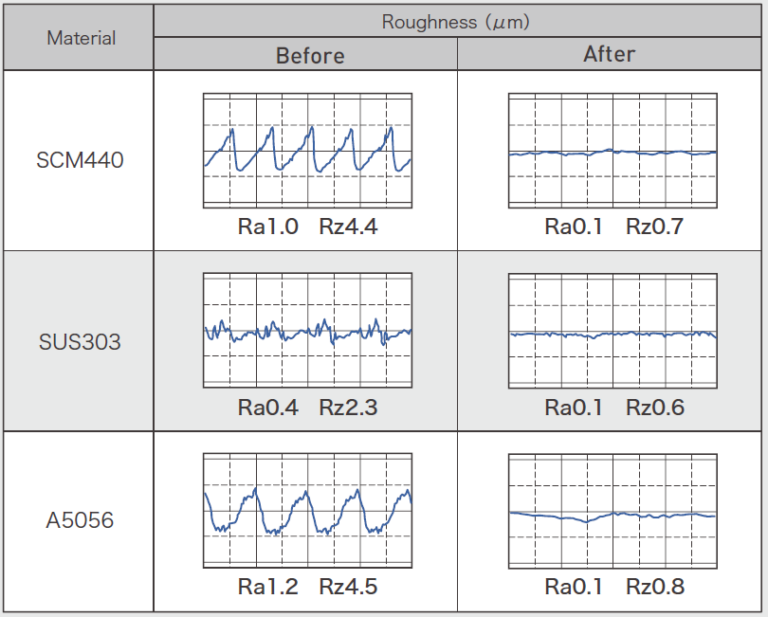

Burnishing data：

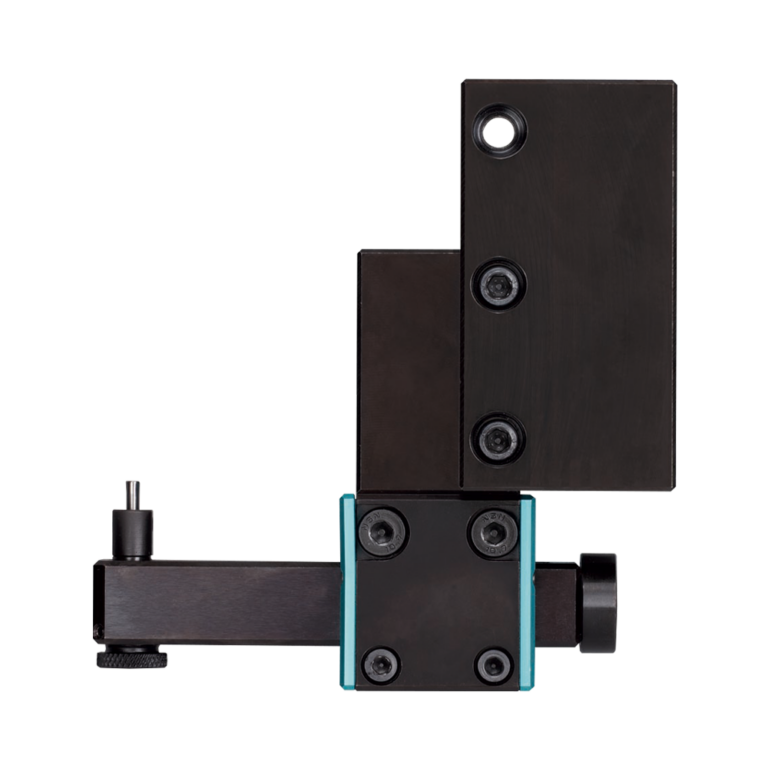

SR3ZH [Inner groove side]
SR3ZH [Inner groove side]
Product Information
- Available workpiece shape: Inner groove side
- Available driving units: Engine lathe, Turret lathe
- Available groove range:
Groove width: φ3.6mm or more
Groove depth: φ5mm or less
Hole size: φ40mm or more

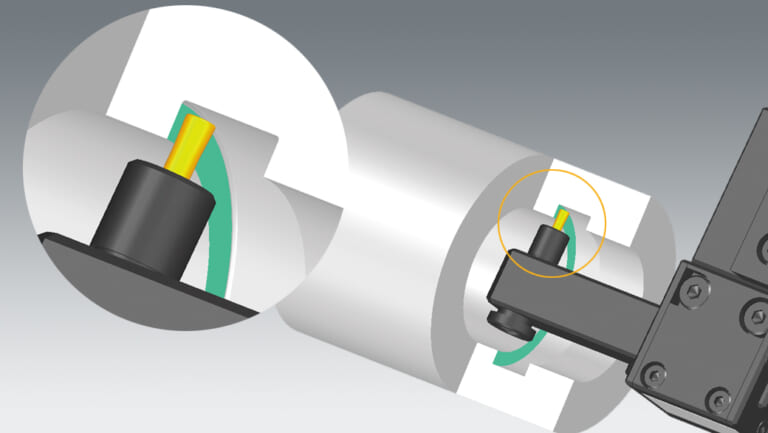

Burnishing image:

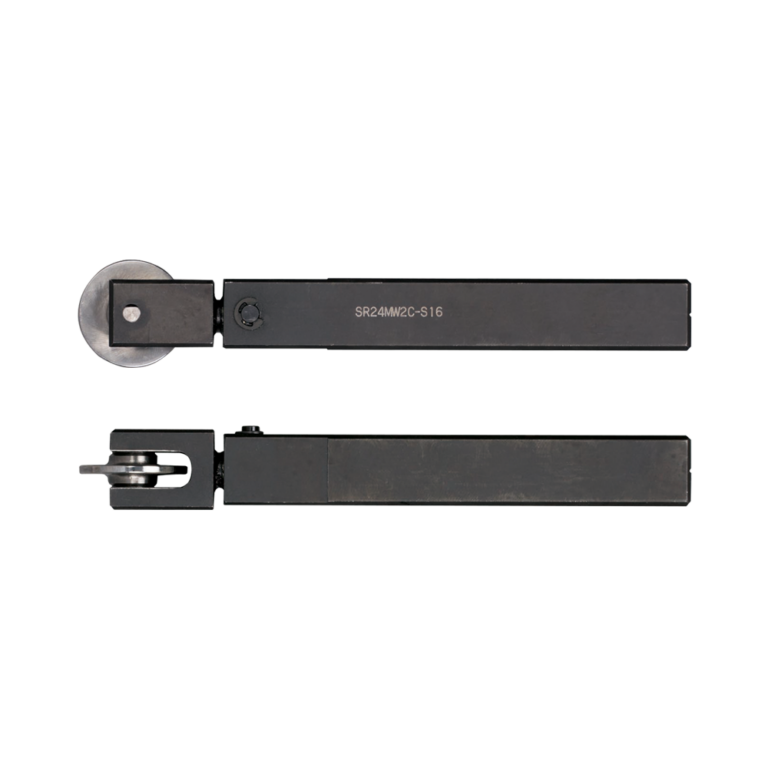

SR24MW [Outer groove bottom]
SR24MW [Outer groove bottom]
Product Information
- Available workpiece shape: Outer groove bottom
- Available driving units: Engine lathe, Turret lathe
- Available groove range:
Groove width: 1.4mm or more
Groove depth: 5mm or less

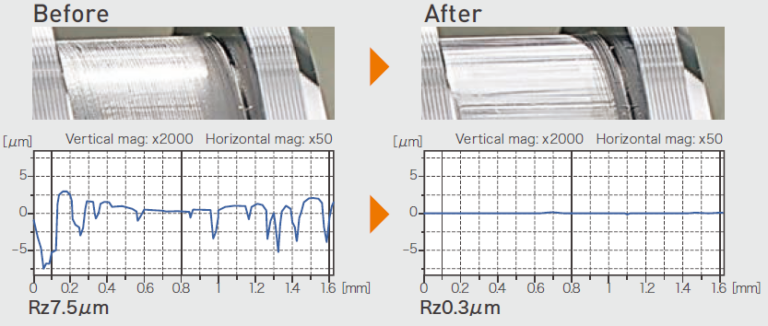

Burnishing data:

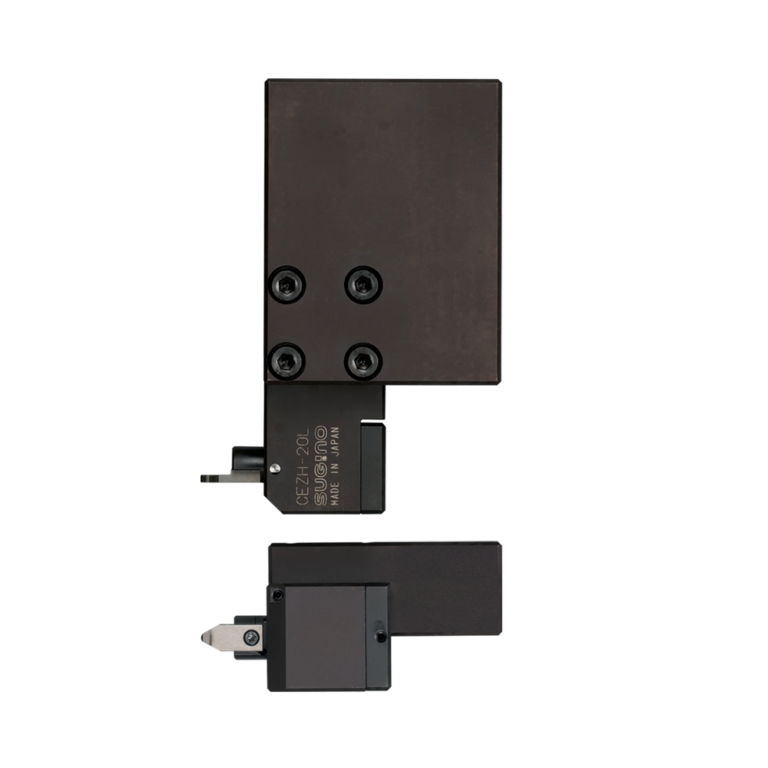

CEZF [Groove end surface]
CEZF [Groove end surface]
Product Information
- Available workpiece shape: Groove end surface (Outer surface)
- Available driving units: Engine lathe, Turret lathe
- Available groove range:
Groove width: 1.4mm or more
Groove depth: It can be designed upon customer’s request.
Groove size: φ40mm or more (In case the groove depth 2mm or less

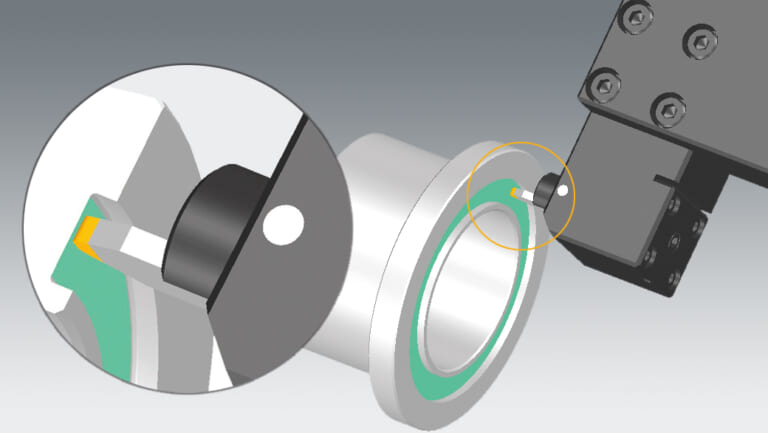

Burnishing image:
CEZH [Inner groove bottom]
CEZH [Inner groove bottom]
Product Information
- Available workpiece shape: Inner groove bottom
- Available driving units: Engine lathe, Turret lathe
- Available groove range:
Groove width: 1.4mm or more
Groove depth: It can be designed upon customer’s request.
Hole size: φ68mm or more

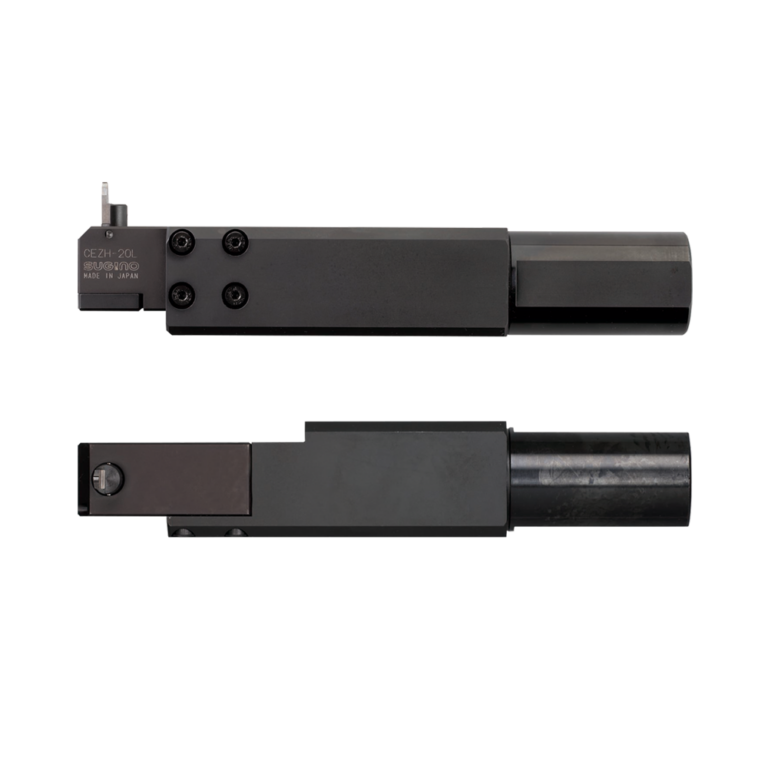

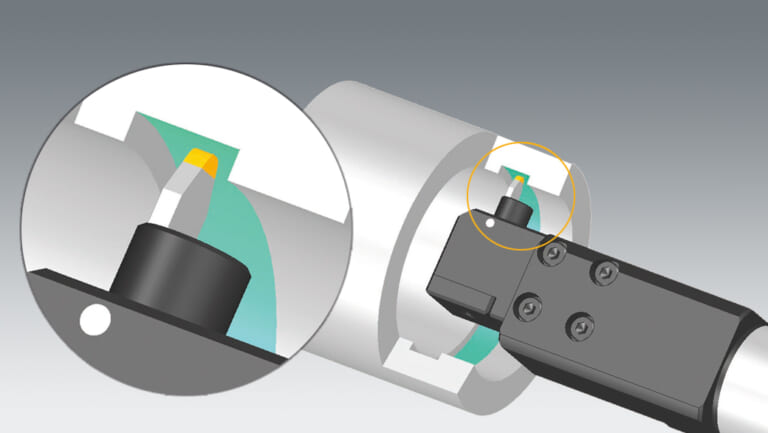

Burnishing image:
