Buddy
Portable wireless dot peen machine, controlled by smartphone
The Buddy equipment offers a brand new portable dot peen marking solution. Contrary to the majority of portable solutions on the market, Buddy is not dedicated for use on a production island but for 100% nomadic use. The operator has the freedom to move around as he wants without worrying about losing his connection, thanks to his smartphone that accompanies him and works as a controller. He can now mark in an indoor or outdoor environment without any distance limit.
Wireless communication?
Wireless communication
The secured Wifi connection between the head and your smartphone gives you unlimited marking freedom.
This new configuration will allow you to have permanent access to the control of the marking head through the application on your smartphone. You are no longer limited by a maximum distance and can move freely.

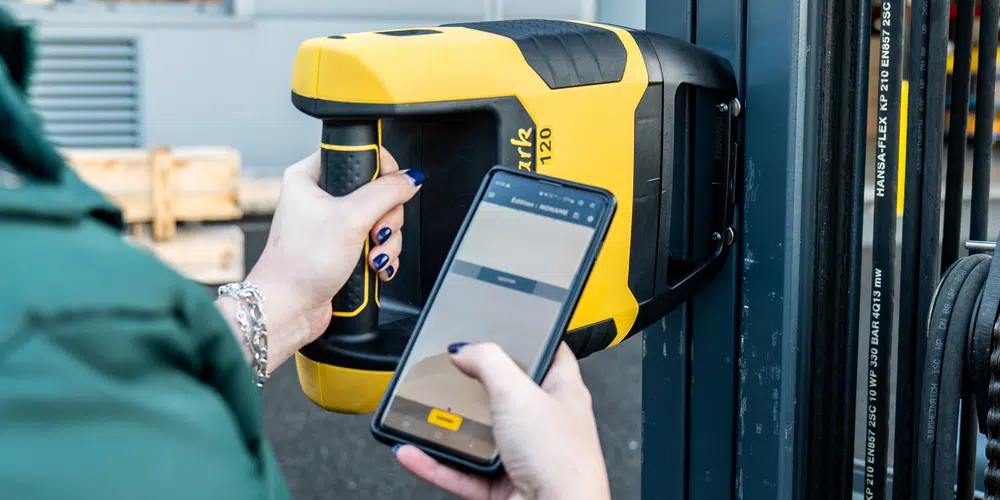

Smartphone control
The marking head control application is completely developed by Technomark. Its ergonomics has been designed to fit perfectly on a smartphone screen while keeping a maximum of functionalities:
- Creation and import of marking files
- Alphanumeric, variable, Datamatrix and logo markings
- Maintenance module
- User mode management: administrator and production
- 1D and 2D code scanning
Optimized Battery
Entirely designed for the Connect.series, the battery will allow you to do a full day of marking without interruption.
In case of very intensive use, the rechargeable hybrid mode will allow you to continue your marking operations while recharging your Buddy machine.
It features the best combination of electronics/battery/software to ensure lightness, performance and durability.
Lithium ion battery
- High performance NMC type
- Embedded in the marking head
5 in 1 support foot
- Marking of flat parts,
- Magnetic holder,
- Non-slip,
- Cylinder marking,
- Positioning aid
Ergonomic and light

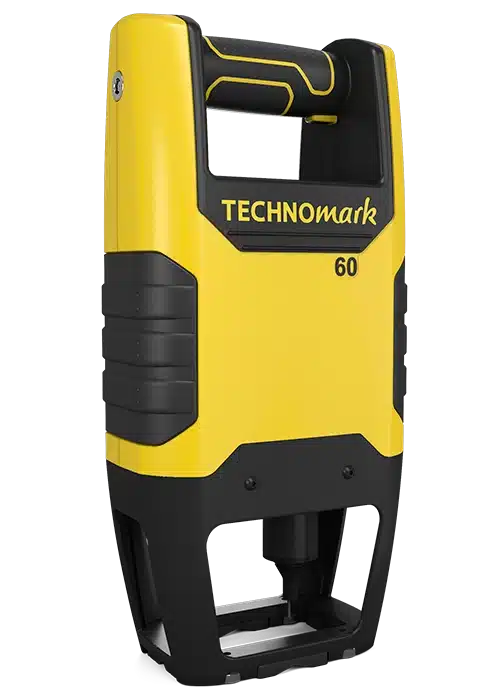

- Buddy 60 2,8 kg
- Buddy 120 3,2 kg
- Easy to hold thanks to its handle in the axis
Robust
- Equipped with protective bumpers
- Technical polymer shell
Technical specifications
| Maximum distance between the marking head and the smartphone | 10 meters |
| Size of the marking window | 60x30mm and 120x60mm |
| Number of marking speeds | 3 speeds |
| Number of marking forces | 11 forces |
| Lithium ion battery | 22V |
| Markings types | Alphanumeric content |
| Straight marking | Text input |
| Angular marking | Serial number variable |
| Radiant marking | Data import variable |
| Mirror marking | Time stamp variable |
| 2D Codes | Visuals |
| Datamatrix | Logo |
| QR Code | Symbol |
| ECC200 |
| Metals | Plastics | |||
| Steel | ● | PVC | ● | |
| Cast iron | ● | Polyamide | ● | |
| Stainless steel | ● | Polycarbonate | ● | |
| Aluminium | ● | Polyethylene | ● | |
| Brass | ● | Polypropylene | ● | |
| Copper | ● | POM | ● | |
| Silver | ● | Acrylic | ● | |
| Nickel | ● | |||
| Titanium | ● | |||
| Other alloys | ● | |||
