Combo
2-in-1 dot peen marking station*: bench and portable configuration
The Combo dot peen marking station has been designed for ultra-versatile use. This innovative and complete equipment allows you to go from a bench top marking solution to a portable and wireless solution in less than 10 seconds without tools.
Why COMBO is made for you?
2 in 1 equipment

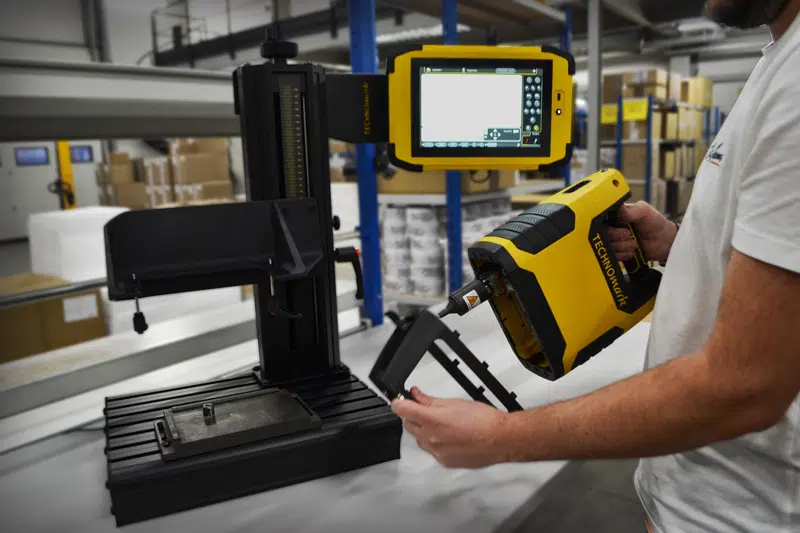

The Combo marking solution has taken the versatility of dot peen to the next level. Combo combines a portable and a bench mode in one machine, with a change of configuration in less than 10 seconds without tools.

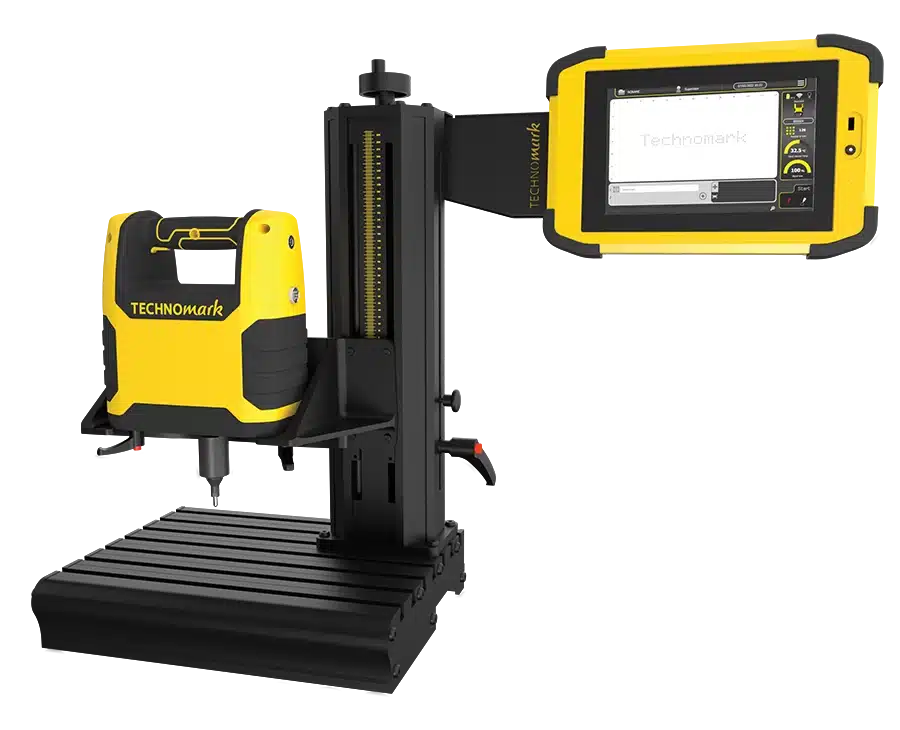

Bench mode: fixing the marking head to an easily adjustable column. Ideal for small to medium sized parts.

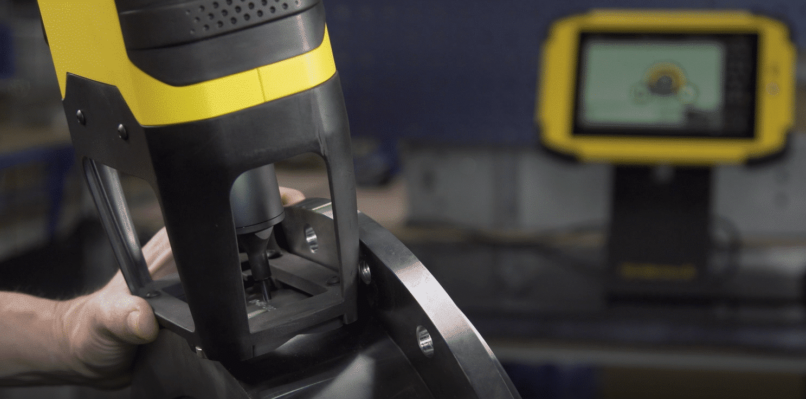

Portable mode: operator travels with the wireless marking head within a 10 metre radius of the marking station. Ideal for medium to large, heavy or hard to reach parts.
Network connected
In addition to being able to create your own marker files on the controller, Combo allows you to easily import and export all your data.
Enter the Industry 4.0 era.
Wireless
To offer maximum freedom, the marking head is connected directly to the controller via a secure Wi-Fi connection. The pairing between the two is very easy thanks to RFID technology.
In its portable configuration, the Combo equipment allows you to mark within a 10 metre radius of the control unit. Combo offers a whole new experience that is unprecedented in the industrial marking market.
Fast and flexible
- Change of configuration in 10 seconds without tools
Lithium ion battery
High performance NMC type
3 consumption modes :
- 100% electric
- 100% battery
- Plug-in hybrid
Optimised ergonomics
- Lightweight and easy to install marking head
- Quick Shift function for quick height adjustment
- Easy to grip thanks to its in-line handle
5 in 1 support foot
- Marking flat parts,
- Magnetic support,
- Non-slip,
- Marking of cylinders,
- Positioning aid
Applications and Technical Specifications
| Distance between head and controller | 10 metres |
| Marking window | 120x60mm |
| Number of marking speeds | 3 speeds |
| Number of marking forces | 11 forces |
| Lithium ion battery | 22V |
| Max marking height | 290mm |
| Weight of head (with foot) | 3,1 kg |
| Screen | 10-inch tempered glass |

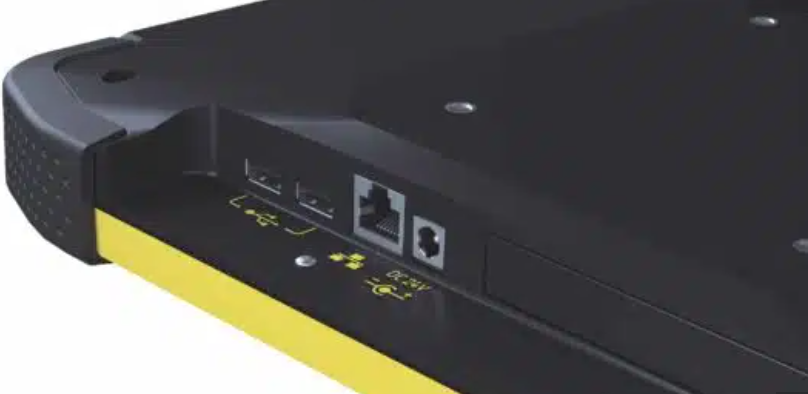

| Connectivity | 1 port Ethernet et 3 ports USB |
| Controller holder | Controller holder Universal VESA 100 fixing for 4 stand configurations |
| Protections | 4 protective bumpers and technical polymer shell |
| Marking types | Alphanumerical content |
| Straight marking | Fixed text |
| Angled marking | Sequential numbering |
| Radial marking | Data import variable |

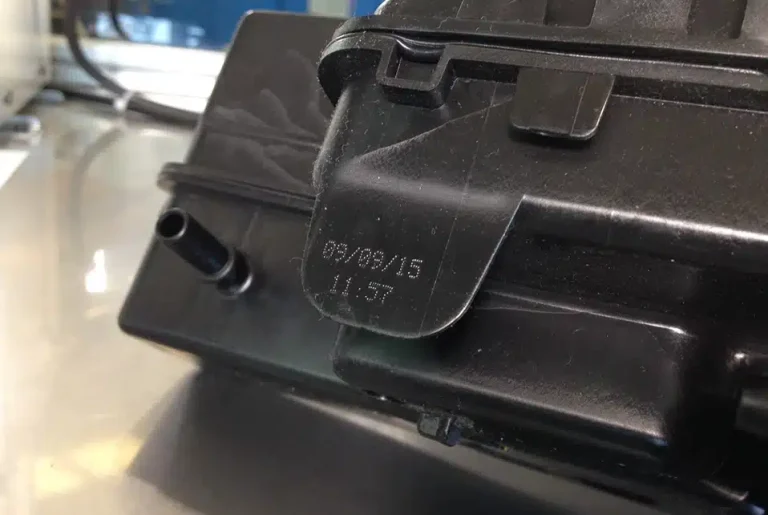

| Mirror marking | Time and date stamp |
| 2D Barcode | Graphic types |
| Datamatrix | Logo |
| QR Code | Shape |
| ECC200 | Symbol |
| Metals | Plastics | |||
| Steel | ● | PVC | ● | |
| Cast iron | ● | Polyamide | ● | |
| Stainless steel | ● | Polycarabonate | ● | |
| Aluminium | ● | Polyethylene | ● | |
| Brass | ● | Polypropylene | ● | |
| Copper | ● | POM | ● | |
| Silver | ● | Acrylique | ● | |
| Nickel | ● | |||

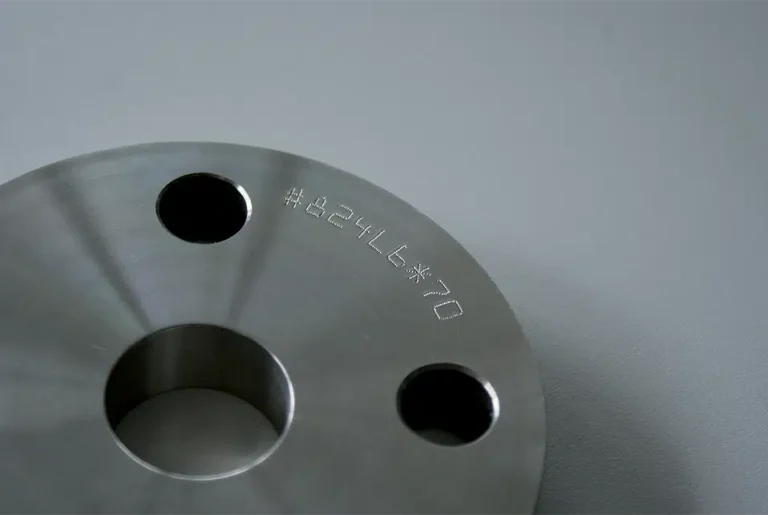

| Titanium | ● | |||
| Other alloys | ● | |||
