Comby
Wireless, tablet-controlled* mixed dot peen marking machine

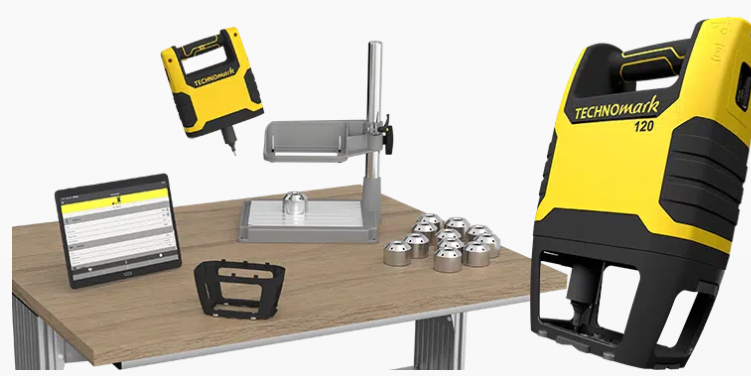

Comby’s equipment expands the Connect.series range with a versatile dot peen marking solution. This machine is a revolution in the marking industry, combining wireless use in portable mode with bench-top configuration when the marking head is set up on its column base. With its intuitive control via tablet, Comby brings a new dimension to industrial marking, offering the operator total freedom of movement while maintaining a fluid connection with the marking head. Discover a new approach to marking, where flexibility and performance combine to meet your most demanding needs.
Why is COMBY made for you?

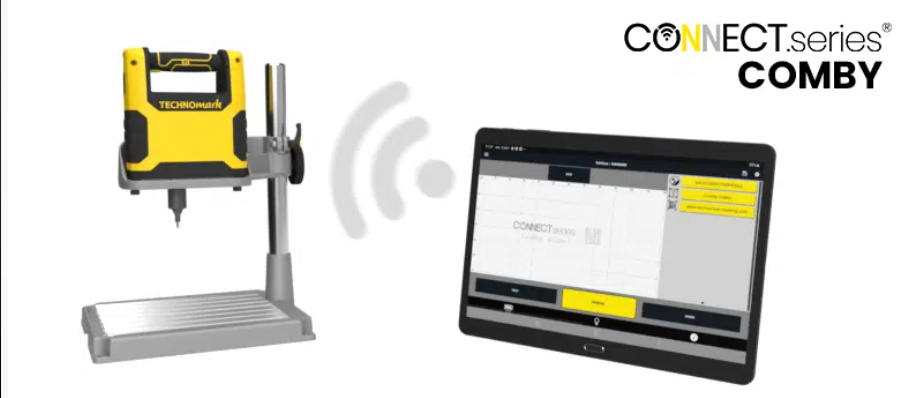

Wireless communication
Thanks to a secure, efficient WiFi connection, the marking head and tablet are always synchronized, opening the way to unlimited marking freedom.
This sophisticated technological configuration provides instant, uninterrupted access to marking head control via a dedicated app specially developed for your tablet.
Now you don’t have to deal with the usual constraints of distance; you can move around freely, with total and precise control over all your marking operations, whatever your position.
Smartphone control
Comby is conceived to meet all your dot peen marking requirements with exceptional versatility. Take advantage of its two operating modes in a single device for optimum flexibility, allowing you to mark an infinite variety of parts.
In portable mode, free yourself from constraints and easily mark large parts, even those that are difficult to access. Now you can enjoy uncompromising creative freedom.

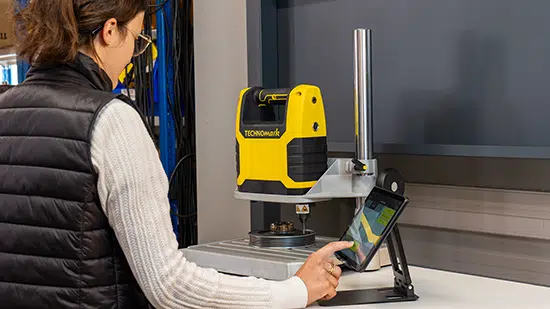

In benchtop mode, benefit from unrivalled precision for marking small to medium-sized parts. This versatility ensures maximum efficiency in all your marking applications.

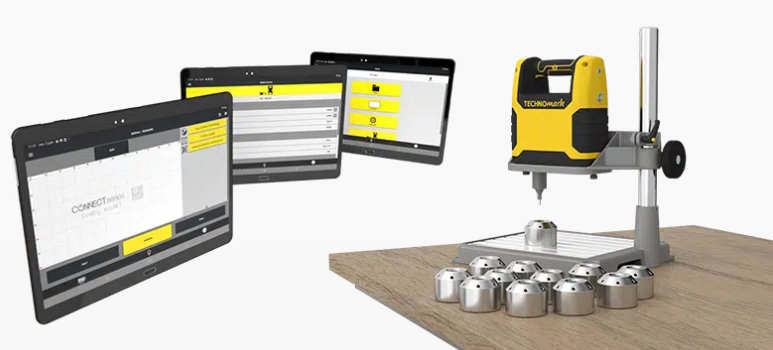

Tablet control
The marking head control application has been entirely developed by Technomark. Its ergonomics have been designed to adapt perfectly to a wide range of tablet screen sizes, while offering maximum functionality:
- Creation and import of marking files
- Alphanumeric, variable, Datamatrix and logo markings
- Maintenance module
- User mode management: administrator and production
- Scanning of 1D and 2D codes
- Marking with rotary axis
Light and ergonomic

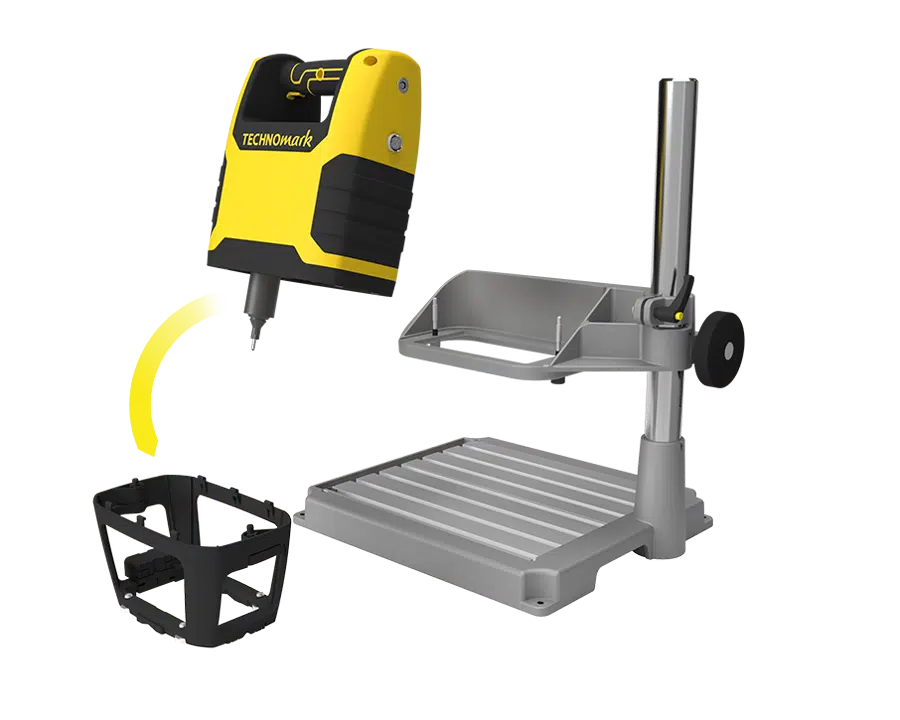

- Setup changes in 10 seconds without tools
- Marking head weight : 3,2 kg
- Easy to hold thanks to in-line handle
Lithium ion battery
High-performance NMC type
3 operating modes
- 100% electric
- 100% battery
- Plug-in hybrid
5-in-1 support foot
- Marking of flat parts,
- Magnetic support,
- Slip-resistant,
- Cylinder marking,
- Positioning aid
Robust
- Marking head with protection bumpers
- Technical polymer shell
- Base and head support in cast aluminum
Technical features
| Maximum distance between marking head and tablet | 10 meters |
| Marking window size | 120×60 mm |
| Number of marking speeds | 3 speeds |
| Number of marking strengths | 11 strengths |
| Lithium ion battery | 22 V |
| General dimensions | 390 x 345 x 530 mm |
| Weight | 11 kg |
| Maximum height of marking surface | 295 mm |
| Clamping method | 7 universal T-slots for fixing brackets |
| Height adjustment | Simple handwheel adjustment and locking system |
| Marking types | Alphanumerical content |
| Straight marking | Fixed text |
| Angled marking | Sequential numbering |
| Radial marking | Data import variable |
| Mirror marking | Time and date stamp |
| 2D Barcode | Graphic types |
| Datamatrix | Logo |
| QR Code | Shape |
| ECC200 | Symbol |
| Metals | Plastics | |||
| Steel | ● | PVC | ● | |
| Cast iron | ● | Polyamide | ● | |
| Stainless steel | ● | Polycarbonate | ● | |
| Aluminium | ● | Polyethylene | ● | |
| Brass | ● | Polypropylene | ● | |
| Copper | ● | POM | ● | |
| Silver | ● | Acrylic | ● | |
| Nickel | ● | |||
| Titanium | ● | |||
| Other alloys | ● | |||
