Easy
Portable, wireless, energy self-sufficient, network-connected dot peen machine

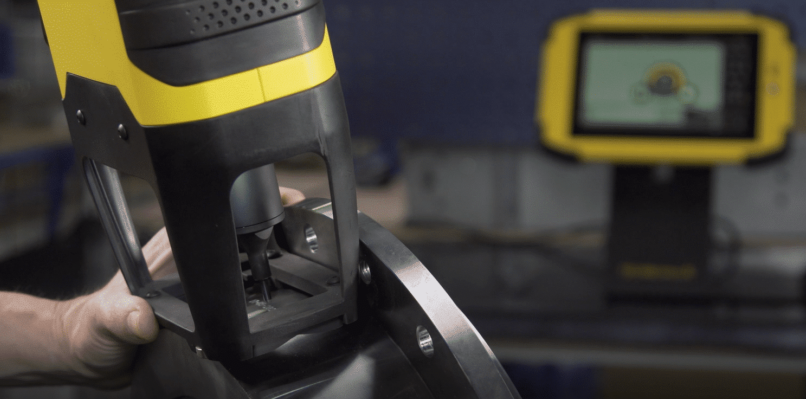

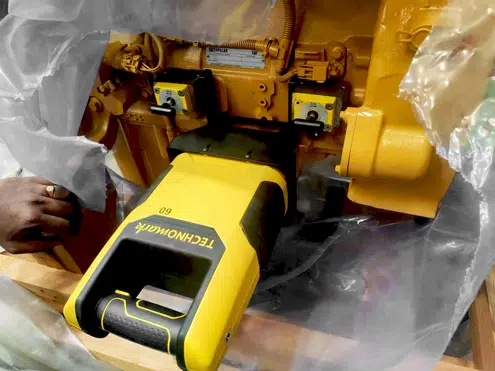

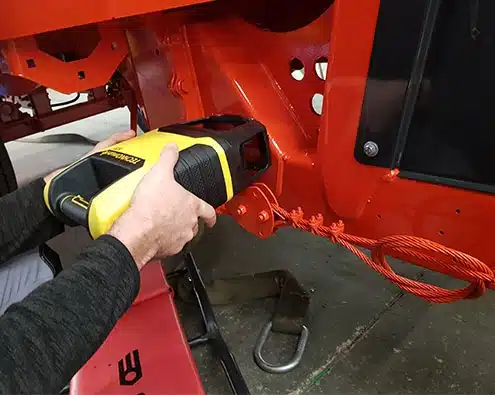

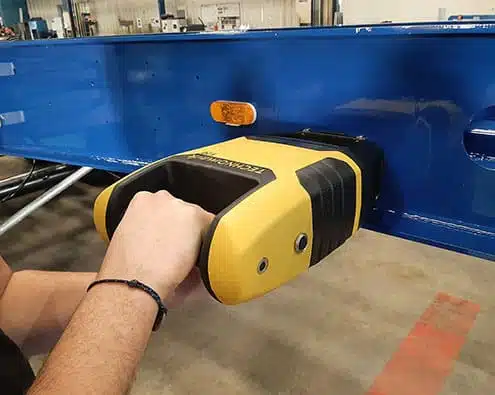

The Easy dot peen marking system from the Connect series offers an unrivalled level of functionality, which is easy to use whilst delivering an exceptional operating experience to the user. It is the ideal machine for mobile use that will allow the user to mark medium to large parts even in difficult to access locations.
Why EASY is made for you?
Wireless
The secure Wi-Fi connection eliminates the requirement for a cable between the marking head and the controller. This wireless communication gives you optimal marking freedom within a 10 metre radius of the control unit. Easy offers a completely new experience that is unprecedented in the industrial marking market.

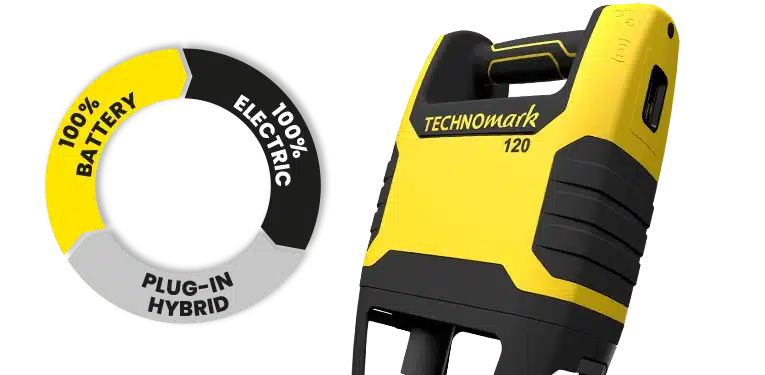

Energy select
The Connect.series offers the Energy select feature which allows you to choose between 3 power modes:
- 100% Battery: Light to deep marking, with moderate use
- 100% Electric: Deep marking, with intensive use
- Plug-in Hybrid: To ensure continuity of production in case of low battery
Network connection
In addtion to being able to create your own marker files on the controller, Easy allows you to easily import and export all your data.
Enter the Industry 4.0 era
Lithium ion battery
- High performance NMC type
5-in-1 support foot
- Marking on flat parts,
- Magnetic support,
- Non-slip foot,

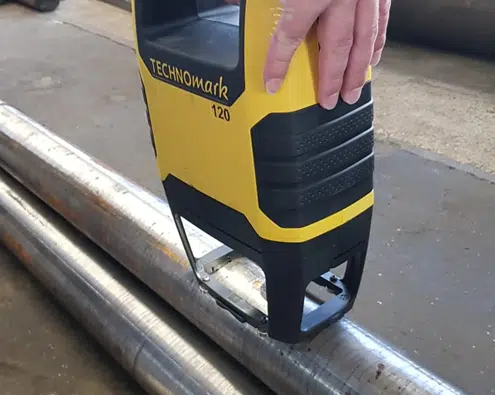

- Marking on cylinders,
- Positioning support
Ergonomic and light
- Model Easy 60 : 2.8 kg

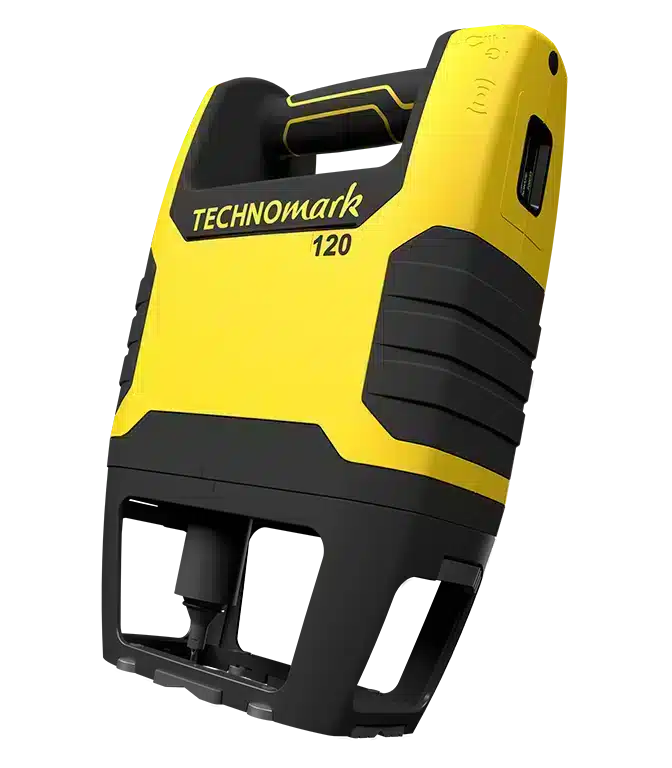

- Model Easy 120 : 3.1 kg
- Comfortable handle design in line with the direction of marking
Robust
- Equipped with protective bumpers
- Technical plastic shell
Applications and Technical Specifications
| Distance between the head and the controller | 10m |
| Marking windows | 60x30mm and 120x60mm |
| Number of marking speeds | 3 speeds |
| Number of marking forces | 11 forces |
| Lithium ion battery | 22V |
| Screen | 10 inches in tempered glass |
| Connectivity | 1 Ethernet port and 3 USB ports |
| Controller holder | Universal VESA 100 fixings for 3 holder configurations |
| Protection | 4 protective bumpers and technical plastic shell |
| Marking types | Alphanumerical content |
| Straight marking | Fixed text |
| Angled marking | Sequential numbering |
| Radial marking | Data import variable |
| Mirror marking | Time and date stamp |
| 2D Barcode | Graphic types |
| Datamatrix | Logo |
| QR Code | Shape |
| ECC200 | Symbol |
| Metals | Plastics | |||
| Steel | ● | PVC | ● | |
| Cast iron | ● | Polyamide | ● | |
| Stainless steel | ● | Polycarbonate | ● | |
| Aluminium | ● | Polyethylene | ● | |
| Brass | ● | Polypropylene | ● | |
| Copper | ● | POM | ● | |
| Silver | ● | Acrylic | ● | |
| Nickel | ● | |||
| Titanium | ● | |||
| Other alloys | ● | |||
