GRAPHIX

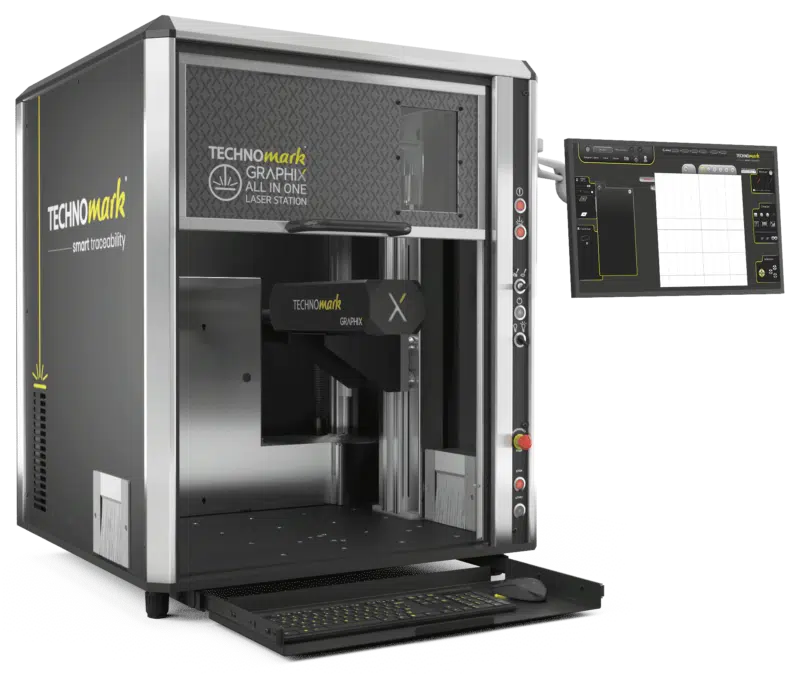

All-in-one laser station* with on-board camera, material database and multi-level function
The new Graphix.series all-in-one station is designed around the user experience. The marking head with on-board camera and intelligent software allows any operator to mark with ease, regardless of their experience: novice or expert.
Why GRAPHIX is made for you ?
Smart View function

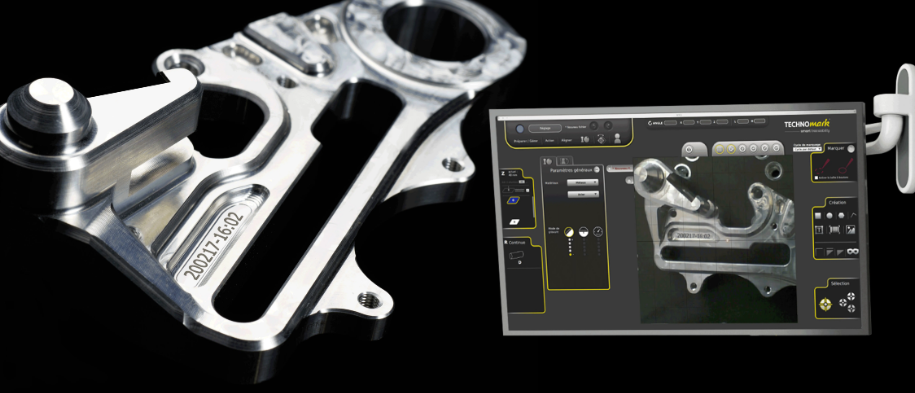

The Smart View function is a revolution in this new generation of laser station. The camera integrated in the marking head allows you to view the workpiece directly on the screen. You can now place and view your marking directly on the part. This makes marking set-up faster and reduces error rate.
Materials database
It offers the possibility for novice users to set up markings without having any special knowledge of laser marking.
Marking in 2 steps:
- 1. Selection of the material to be marked
- 2. Definition of the marking result according to three characteristics: depth, contrast or speed

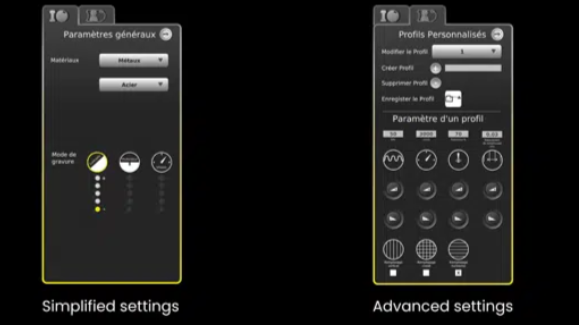

But if you are a qualified operator, you can also make more complex markings thanks to the advanced settings

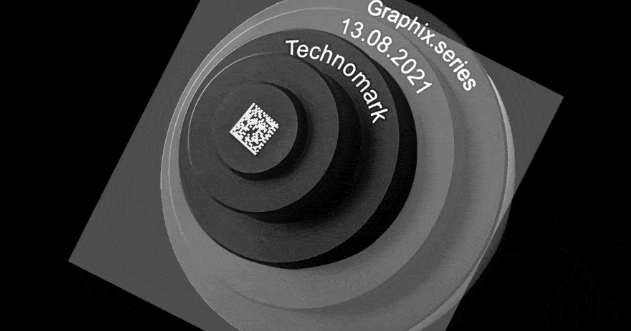

Multi-level marking
The multi-level function optimises the efficiency of the marking production:
- Multiple markings on different heights of a workpiece in a single run as well as on curved surfaces
- Reduced number of actions and time savings
- Optimised ergonomics when combined with the Smart View function
Assisted door opening
with two positions for easy loading of parts
Electric column
Digital control of the z-axis with a useful stroke of 400mm
Fiber laser head
High performance with on-board camera
Multiple options
Side openings (single and double), rotary axis, retractable drawer and fume extractor

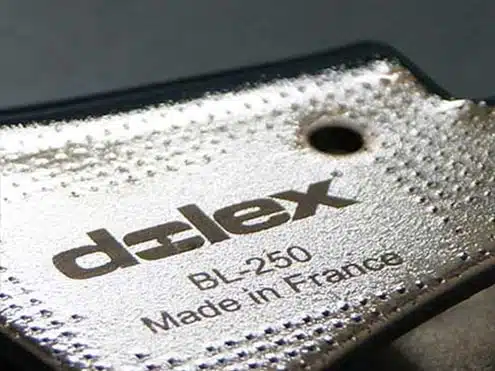

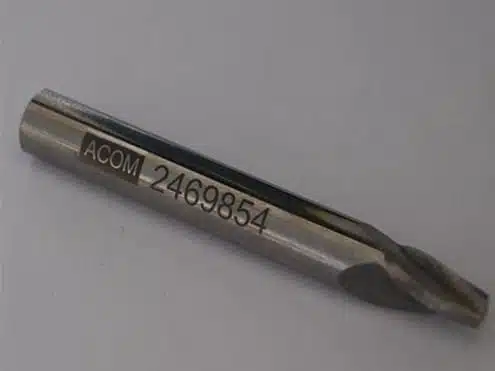

Applications and Technical Specifications
| Marking windows | 100x100mm or 140x140mm |
| Scanning speed | 12m/s |
| Type of laser | Class 1 fibre laser in station configuration |
| Available powers | 20W, 30W and 50W |
| Screen | 21.5″ integrated in the station |
| Connections | 1 Ethernet port and 3 USB ports |
| Dimensions | W: 800mm, H: 985mm and D: 755mm |
| Loading capacity | W: 500mm, H: 400mm and D: 500mm |
| Types of markings | Alphanumeric content |
| Straight marking | Text input |
| Angular marking | Serial number variable |
| Radial marking | Data import variable |
| Mirror marking | Time stamp variable |
| 1D and 2D code | Visual |
| Bar code | Logo |
| QR Code | Form |
| Datamatrix | Symbol |
| Metals | Plastics | |||
| Steel | ■ | PVC | ■ | |
| Cast iron | ■ | Polyamide | ■ | |
| Stainless steel | ■ | Polycarbonate | ■ | |
| Aluminium | ■ | Polyethylene | ■ | |
| Brass | ■ | Polypropylene | ■ | |
| Titanium | ■ | ABS | ■ | |
| Silver | ■ | Acrylic | ■ | |
| Bronze | ■ | |||
