GRAPHIX PLUS
All-in-one* laser marking station with motorized door, on-board camera and intuitive software.

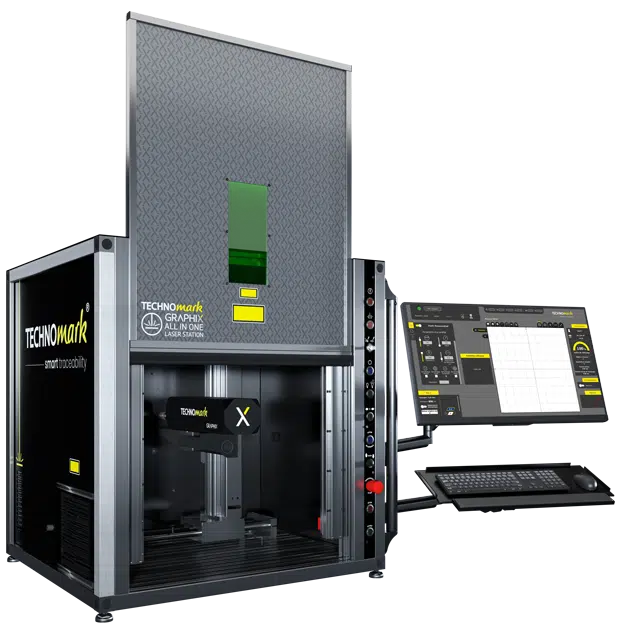

Discover Graphix Plus, the new all-in-one laser engraving station that redefines your marking experience. Based on the standard Graphix version already equipped with an on-board camera, this advanced edition offers optimum user comfort. Enjoy superior ergonomics thanks to a motorized door, a larger side opening, an electric column for perfect control of X and Z axes, and an adjustable screen/keyboard/mouse support. With Graphix Plus, you’ll achieve top-quality marking results while benefiting from simplified and improved use.
Why Graphix Plus is made for you ?

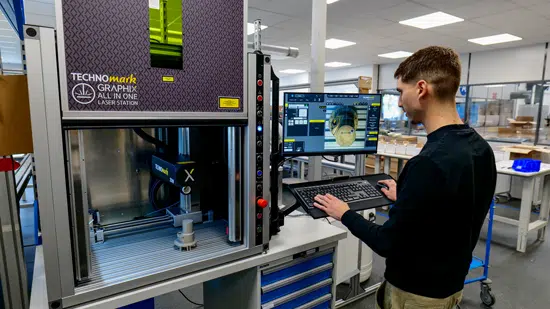

Intuitive marking station
The Graphix Plus fiber laser station will be your best partner for marking and traceability operations. Its ease of use and numerous functions make it one of the most complete pieces of equipment on the market.
- Material database: select a material profile for simple parameter setting, then select the desired rendering from 3 options (depth, speed and contrast).
- Multi-level marking: mark several surface heights in a single cycle thanks to the multi-plan function.
- Ergonomic software: easy to use, operators can mark in 3 clicks.
- Motorized X-axis: lateral movement of the marking zone via electric motor.
- Aluminum platform with universal grooving

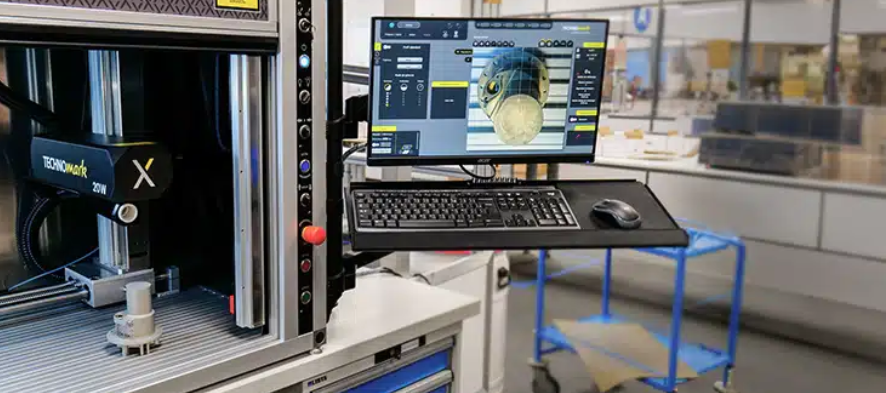

- Adjustable screen and keyboard for ideal user comfort.
Motorized door opening

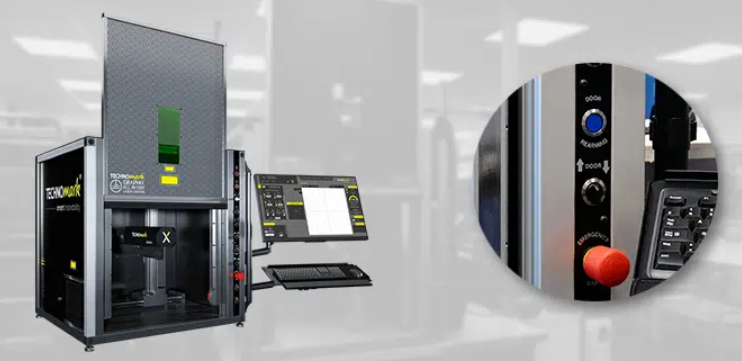

Conceived to meet a wide range of marking needs, our equipment offers accessibility for all your uses, thanks to its manual operation via the console. With the motorized door offering a generous opening of up to 580 mm, the marking process is simplified, enabling easy handling of the parts to be marked. With Graphix Plus, you have total control over your laser marking process, guaranteeing unrivalled quality and efficiency.
Smart View function

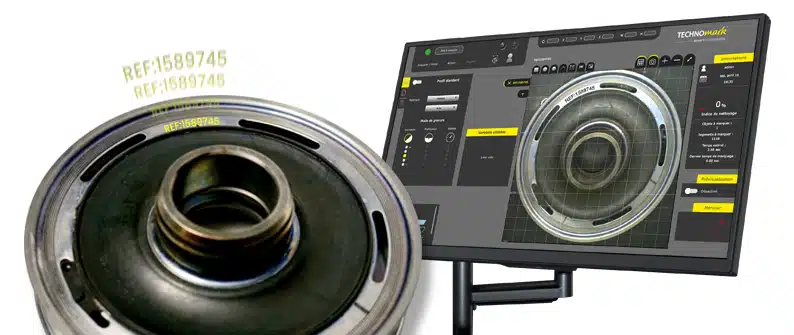

The Smart View function is the main innovation of this new generation of laser stations. Thanks to a camera integrated into the marking head, it provides a live view of the part on the screen, enabling you to place your marking quickly and accurately. This approach considerably reduces errors and speeds up the marking set-up process.
Electric door
for easy loading of parts to be marked
Motorized X and Z axes
X axis: manual control over a 400 mm stroke
Z axis: automatic control over a 400 mm stroke
Fiber laser head
High-performance with on-board camera
Wide range of accessories
- Rotating axis,
- Adjustable keyboard support,
- Smoke extractor.
Applications and technical features

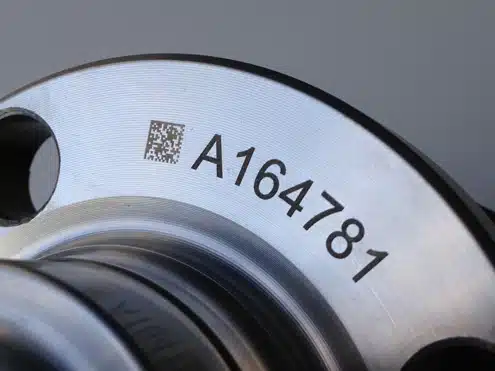

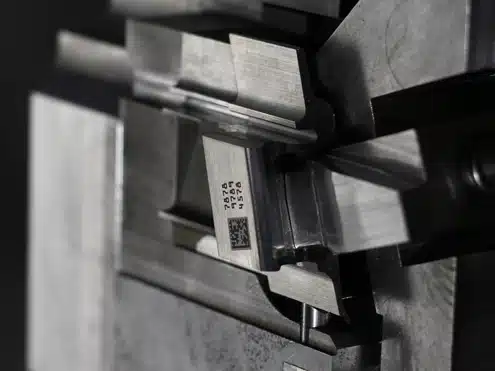

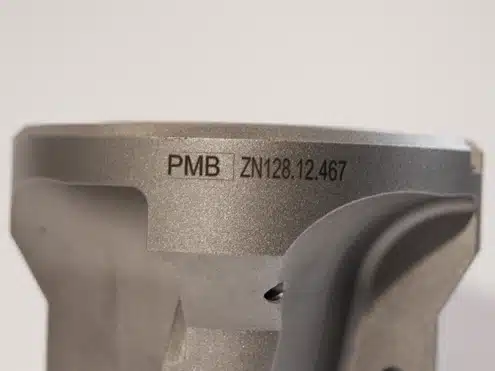

| Marking windows | 100 x 100 mm or 140 x 140 mm |
| Scanning speed | 12 m/s |
| Type of laser | Class 1 fibre laser in station configuration |
| Available powers | 20 W and 30 W |
| Screen | 21,5 integrated in the station |
| Connection | 1 Ethernet port and 3 USB ports |
| Dimensions | W: 1545 mm, H: 1574 mm et D: 883 mm (porte ouverte et écran/clavier dépliés) |
| Loading capacity | W: 580 mm, H: 400 mm et D: 470 mm |
| Left side opening | 250 x 225 mm |
| Types of markings | Alphanumeric content |
| Straight marking | Text input |
| Angular marking | Serial number variable |
| Radial marking | Data import variable |
| Mirror marking | Time stamp variable |
| 1D and 2D code | Visual |
| Bar code | Logo |
| QR Code | Form |
| Datamatrix | Symbol |
| Metals | Plastics | |||
| Steel | ■ | PVC | ■ | |
| Cast iron | ■ | Polyamide | ■ | |
| Stainless steel | ■ | Polycarbonate | ■ | |
| Aluminium | ■ | Polyethylene | ■ | |
| Brass | ■ | Polypropylene | ■ | |
| Titanium | ■ | ABS | ■ | |
| Silver | ■ | Acrylic | ■ | |
| Bronze | ■ | |||
