Tempo
Integrable – integrated dot peen marking machine

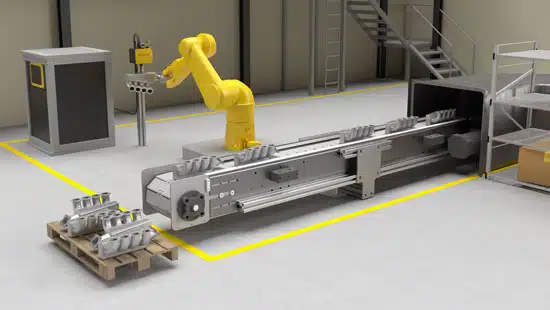

Discover Tempo from the Inline.series, our new electromagnetic dot peen marking machine, specially designed for automated environments. Ideal for production lines, this machine offers simplified installation thanks to its versatile marking head, which can be mounted on three sides, and its rack-mountable controller. Its ergonomic software, developed internally, facilitates configuration. The solution is equipped with a 16-channel card and Ethernet TCP-IP connectivity (Profinet and Ethernet IP). Moreover, an integrated maintenance warning and prevention system ensures smooth, uninterrupted production.
Why is TEMPO made for you?
Easy to integrate
Tempo is characterized by its exceptional ease of integration and very compact design. This machine is quick and easy to install, thanks to its three-sided fixable marking head and rack-mountable controller. Moreover, its removable and lockable cables and 360° positioning further simplify installation, ensuring simple integration into any industrial environment.
Network connection
The Tempo machine offers advanced network connectivity, ideal for modern industrial environments. Thanks to its Ethernet TCP-IP, Profinet or Ethernet IP compatibility, this dot peen marking machine can be easily integrated into any automated production line. This robust connectivity enables fast, reliable communication with other equipment, thanks in particular to the integrated switch function.

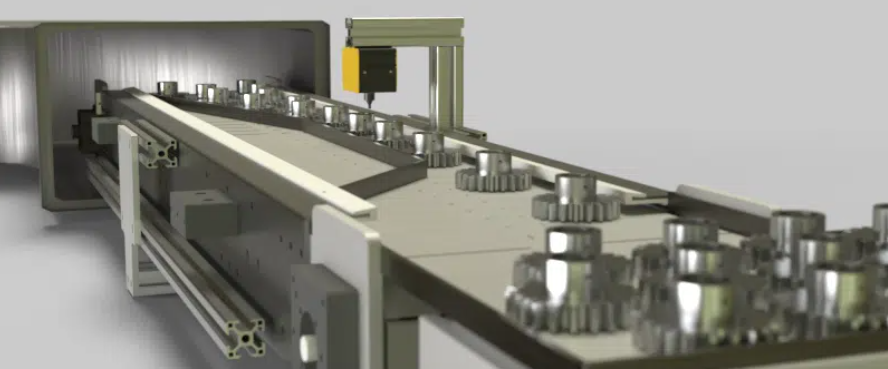

Optimized productivity
This dot peen marking solution offers high performance and unrivalled robustness in the most rigorous industrial environments. Capable of marking up to 3 characters per second, this machine guarantees optimum productivity, operating 24/7 without interruption. Its anodized aluminum chassis, steel covers and protective cover make it extremely durable, minimizing the need for maintenance even under the toughest conditions. Tempo is the ideal solution for maximizing the durability and efficiency of your production.

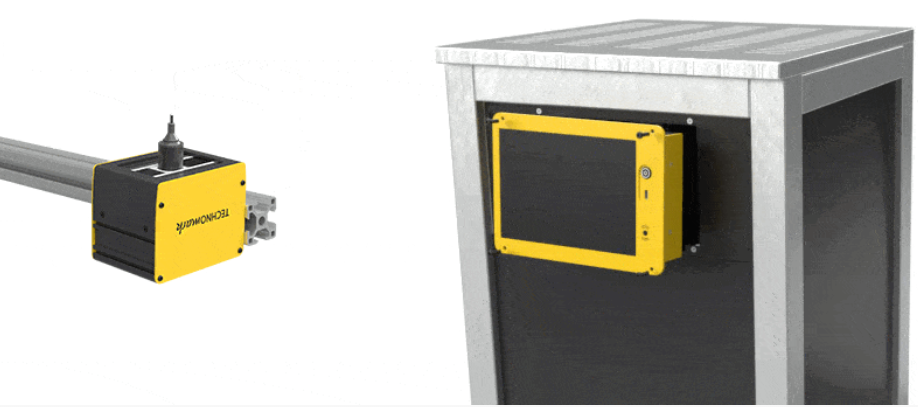

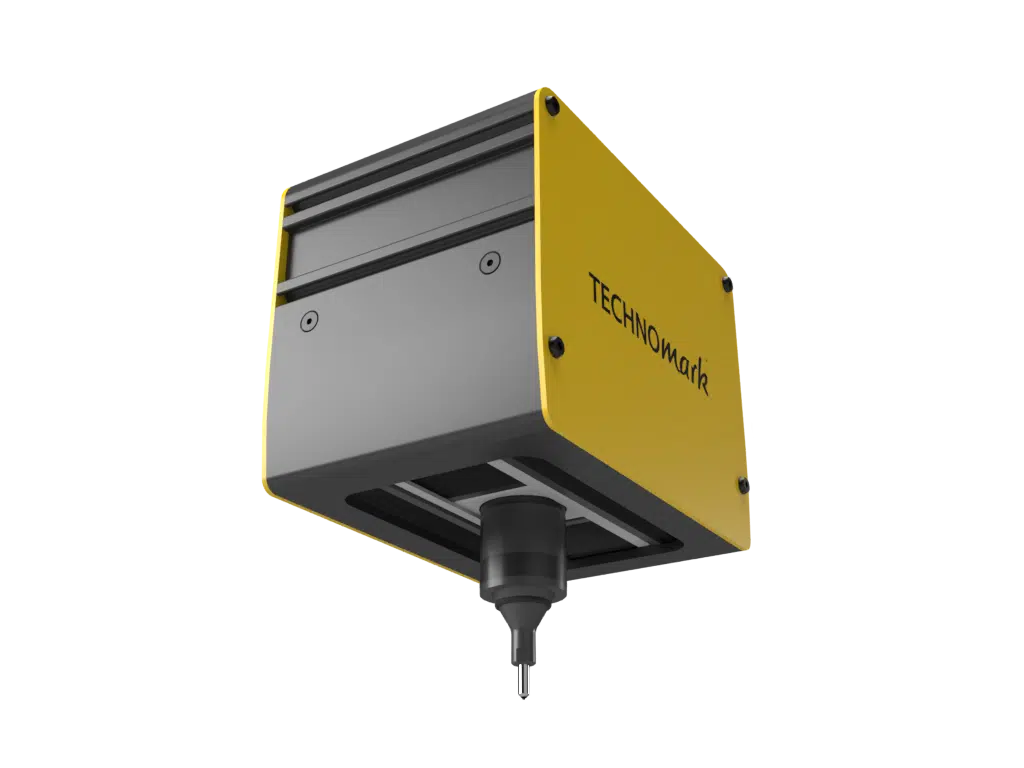

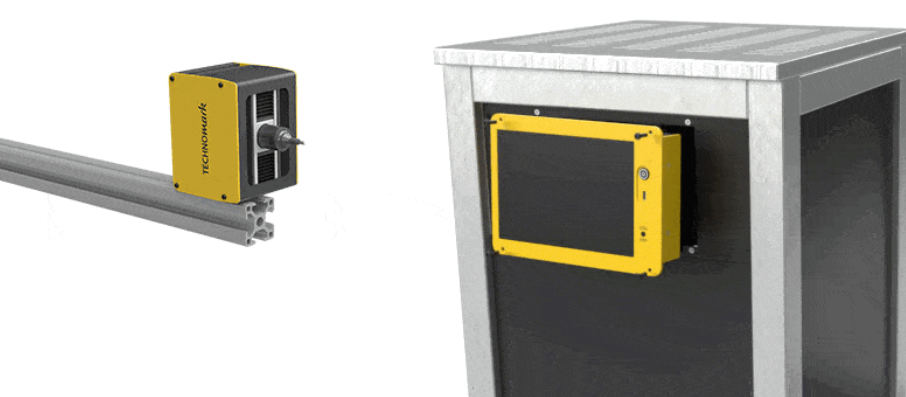

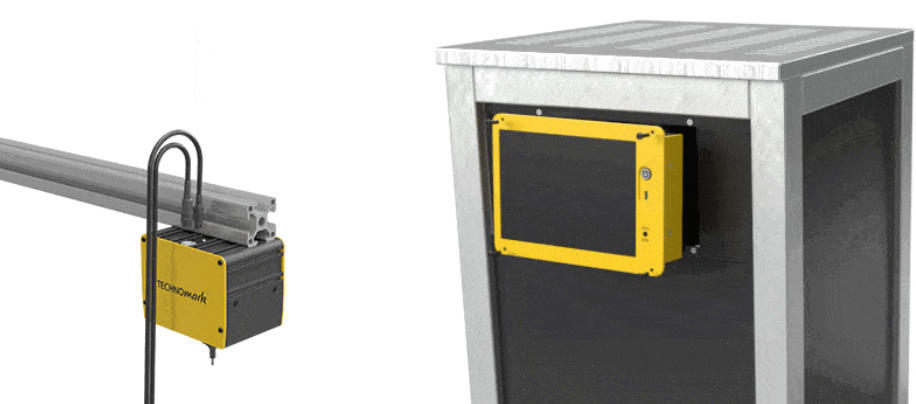

Compact, 360° integration
- Dimensions without impact unit 170 x 132 x 124 mm
- 3 mounting faces available
- Installation in any directions to suit your environment
Robust
- Anodized aluminum frame
- Painted steel covers
- Protective cover against dust and abrasive products
High-performance
- 30% faster than our previous integration model
- Marks 3 characters per second
- High marking accuracy even at high speeds
- Engineered for continuous operation
Advanced settings
- Easy to configure
- Ajustable marking window size
- Programmable pathways for stylus to avoid obstacles
- Origin selection

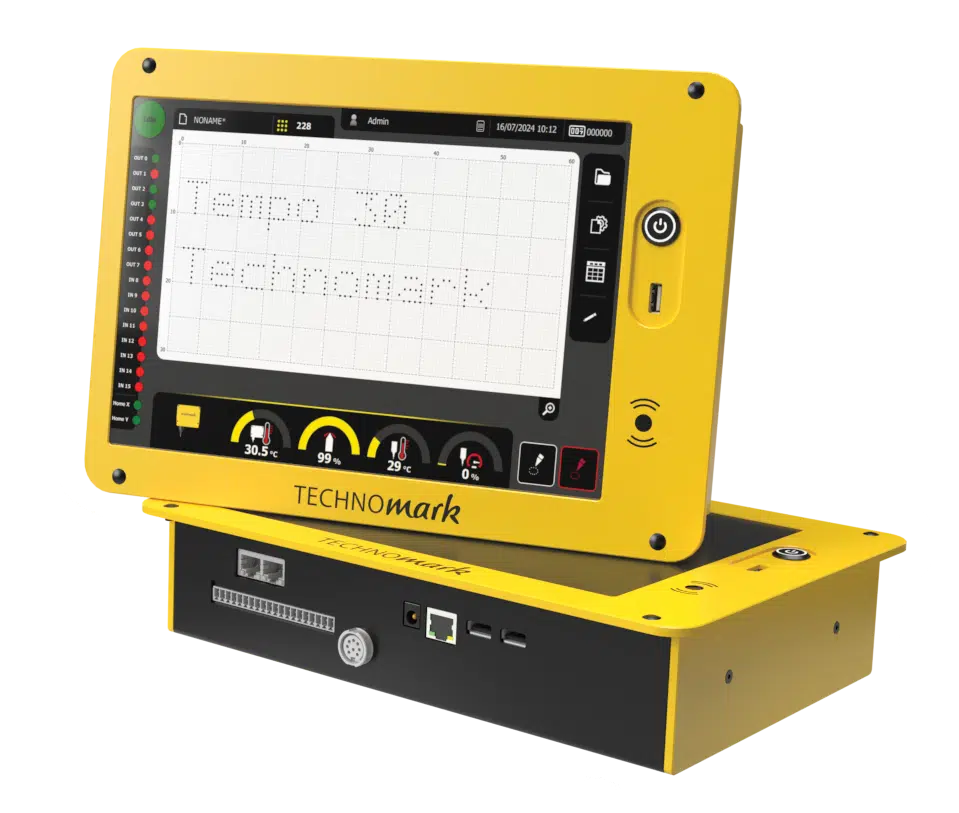

Rack-mount and panel-mount controller
- Controller installation on a standard rack
- Integrate into any environment
- Controller mounting compatible with VESA 100 support

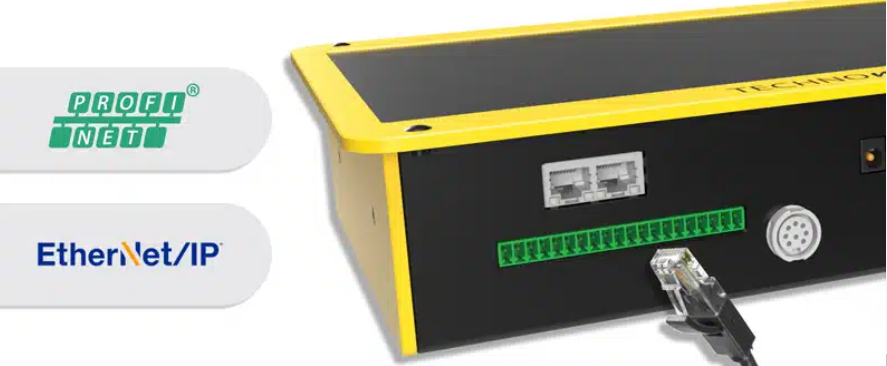

Connectivity
- 3 USB ports for connecting peripherals (keyboard, mouse, 2D barcode readers)
- 2 RJ45 ports for network connection via Ethernet TCP-IP (Profinet and Ethernet IP)
- 16 input/output channels

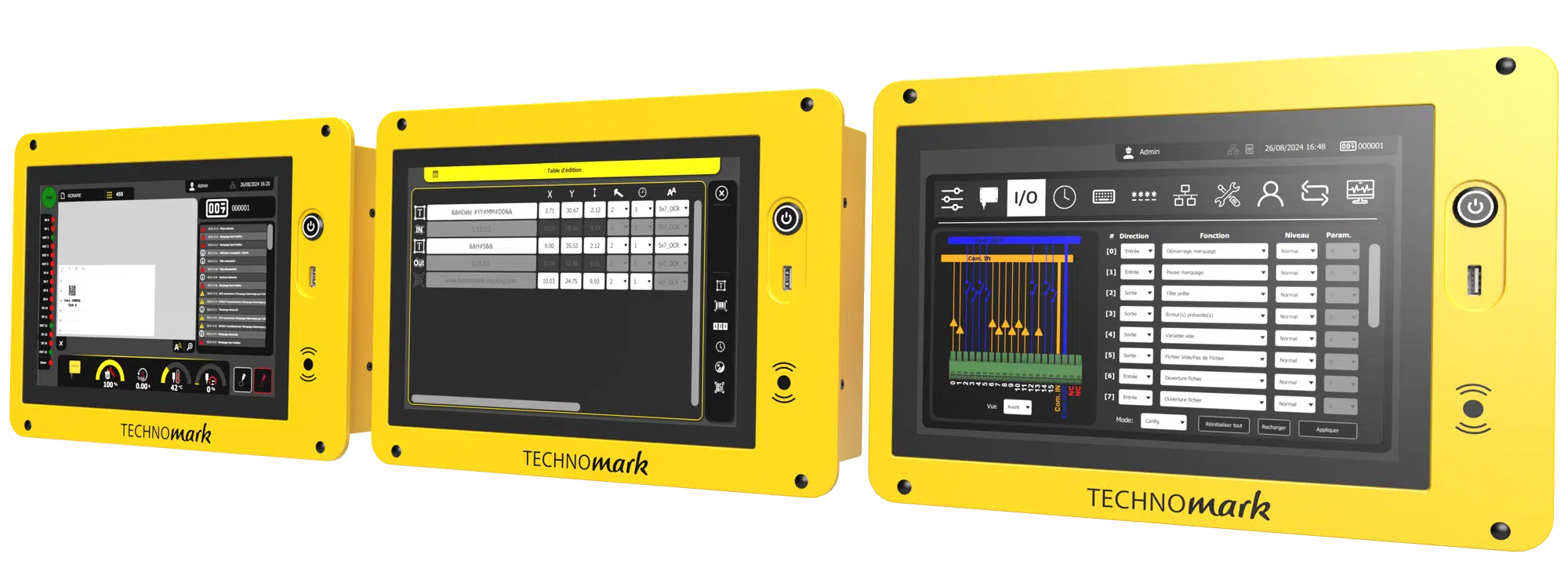

Complete and intuitive software
| 12 inputs types : | 14 output types : |
| Start marking | Machine ready |
| Pause | Marking in progress |
| Start marking test | Test in progress |
| Stop | End of marking |
| Open marking file | Marking paused |
| Close marking file | Error |
| Wait for external input | Machine in origin position |
| Reset serial number | Lubrication required |
| Increment serial number | Sharpening required |
| Return to original position | Maintenance required |
| Acknowledge error | Copy input status |
| Part present | Empty variable |
| File empty / No file open | |
| Output control in marking cycle |
Technical specifications
| General dimensions (without impact unit) | 170x132x124 mm |
| Wiring | 10m cable length, removable and lockable |
| Marking window size | 30×60 mm |
| Marking speed | Up to 3 characters per second |
| Installation | 3 fixing faces and 360° use |
| Power supply | 24VDC 10A |
| General dimensions | 310 x 217 x 66 mm |
| Types of installation | Rack-mountable, flush-mountable or VESA 100 support |
| Network connection | Profinet and Ethernet/IP |
| Peripheral devices | 3 USB ports (keyboard, mouse, USB key and code reader) |
| Marking cycle configuration | 16-channel input/output card |
| Controller | 10″ touch screen in tempered glass |
| Marking types | Alphanumerical content |
| Straight marking | Fixed text |
| Angled marking | Sequential numbering |
| Radial marking | Data import variable |
| Mirror marking | Time and date stamp |
| 2D Barcode | Graphic types |
| Datamatrix | Logo |
| QR Code | Shape |
| ECC200 | Symbol |
| Metals | Plastics | |||
| Steel | ● | PVC | ● | |
| Cast iron | ● | Polyamide | ● | |
| Stainless steel | ● | Polycarabonate | ● | |
| Aluminium | ● | Polyethylene | ● | |
| Brass | ● | Polypropylene | ● | |
| Copper | ● | POM | ● | |
| Silver | ● | Acrylic | ● | |
| Nickel | ● | |||
| Titanium | ● | |||
| Other alloys | ● | |||
