Large CMM

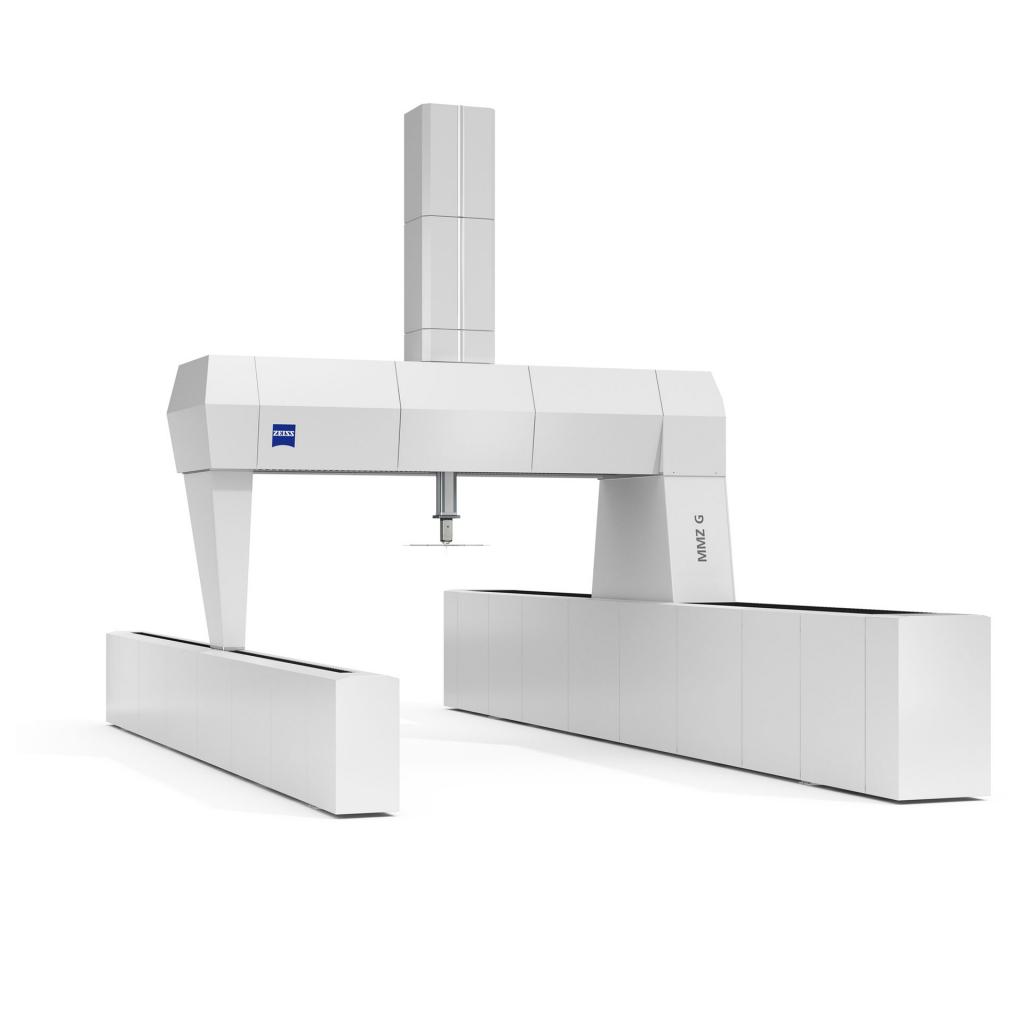

ZEISS MMZ G

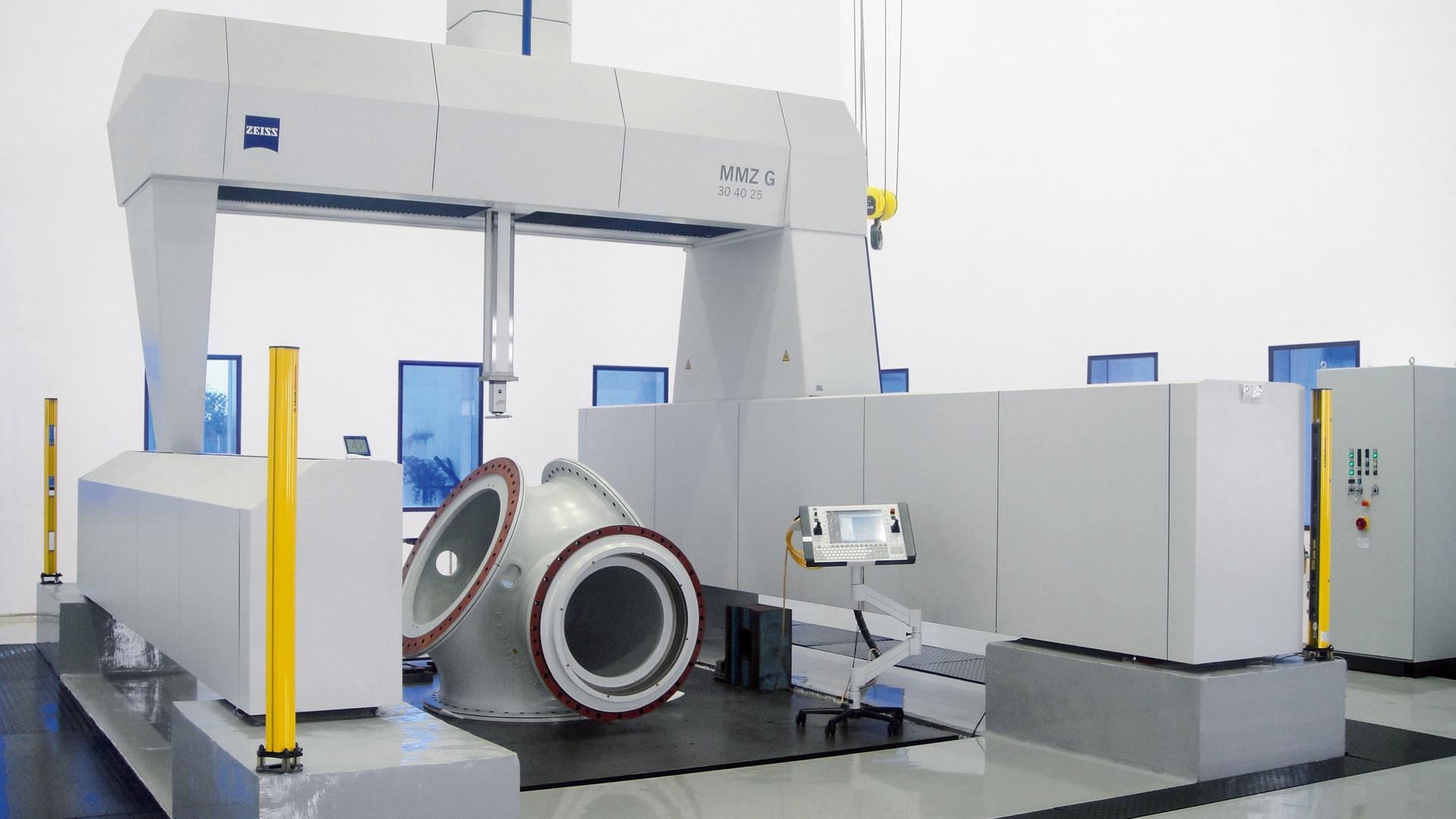

Bridge-type CMM for large workpieces
The large bridge-type machines in the ZEISS MMZ G line meet the highest demands: they feature the largest measuring range of all measuring machines offered by ZEISS and offer you unparalleled accuracy. This makes the ZEISS MMZ G ideal for checking complex, extremely large workpieces, especially those with tight tolerances.
Features
ZEISS MMZ G measuring machines are used by manufacturers of printing machines, wind turbines, and in mechanical engineering.
Minimized subsequent costs
- Durable thanks to the robust roller bearings
- Minimal expenses for worn parts because of transverse force-free drives
- Extremely sturdy because of its very stable mechanical design
Ergonomically-correct work
- All-sided view of the measuring range
- Walk-in measuring area for effective analysis directly on the workpiece
- Mobile data station for direct programming on the workpiece
Exceptional scanning performance
- ZEISS VAST navigator to quickly calibrate, scan and increase precision
- ZEISS VAST performance to increase measuring throughput
- REACH CFX 3 MMZ stylus extensions for measuring deep boreholes (1,200 mm)

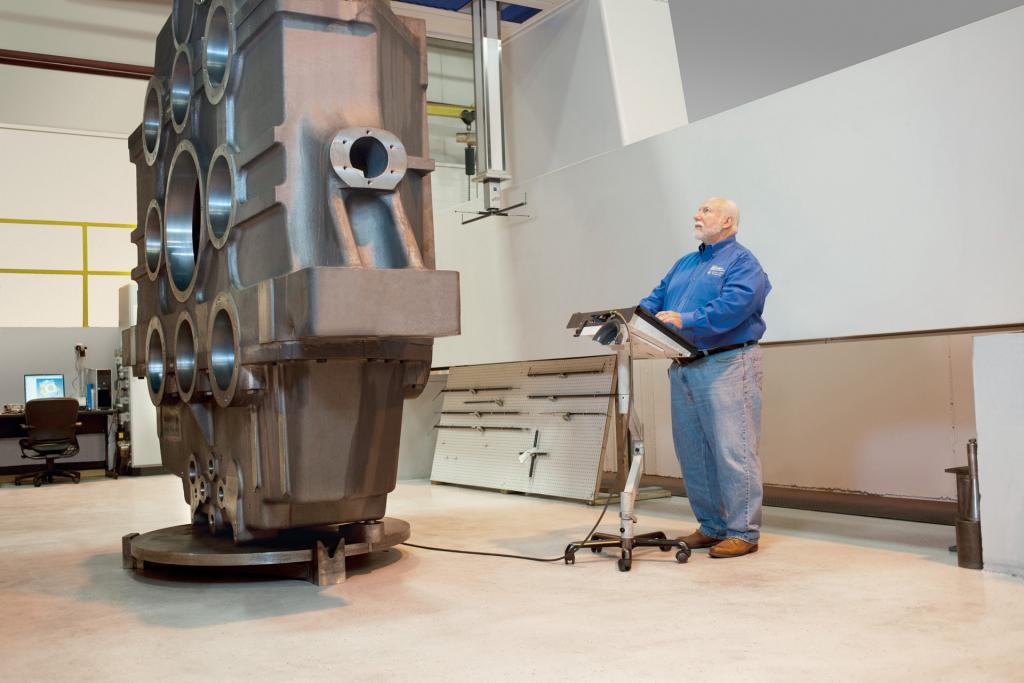

Measure extremely heavy workpieces dependably
- Resistant to harsh environmental conditions for minimal demands on the measuring room
- Large bearing clearances and a stable bridge design for an exceptional scanning performance
- Workpiece weight limited only by the thickness of the foundation
Technical Data for ZEISS MMZ G
Length measurement error | MPE_E150 | from 2.2 + L/400 μm |
Single stylus probing error | MPE_PFTU | from 2.0 μ |
Scanning probing error | MPE_THP/tau | from 2.8 μ / 62 s |
Form measuring error | MPE RONt | from 2.0 μm |
