ZEISS PRISMO family
ZEISS PRISMO
The CMM all-rounder
With a length measurement error from 0.9 + L/350 µm, ZEISS PRISMO is the flagship among ZEISS CMMs and a synonym for precision measurement. It achieves reliable and reproducible results at high measuring speeds.
- Computer-Aided Accuracy (CAA) for maximum precision
- ZEISS VAST Performance package for faster measurements
- Probe variety thanks to multi-application probe system technology (ZEISS mass)
- Time and cost savings with ZEISS Articulating Stylus

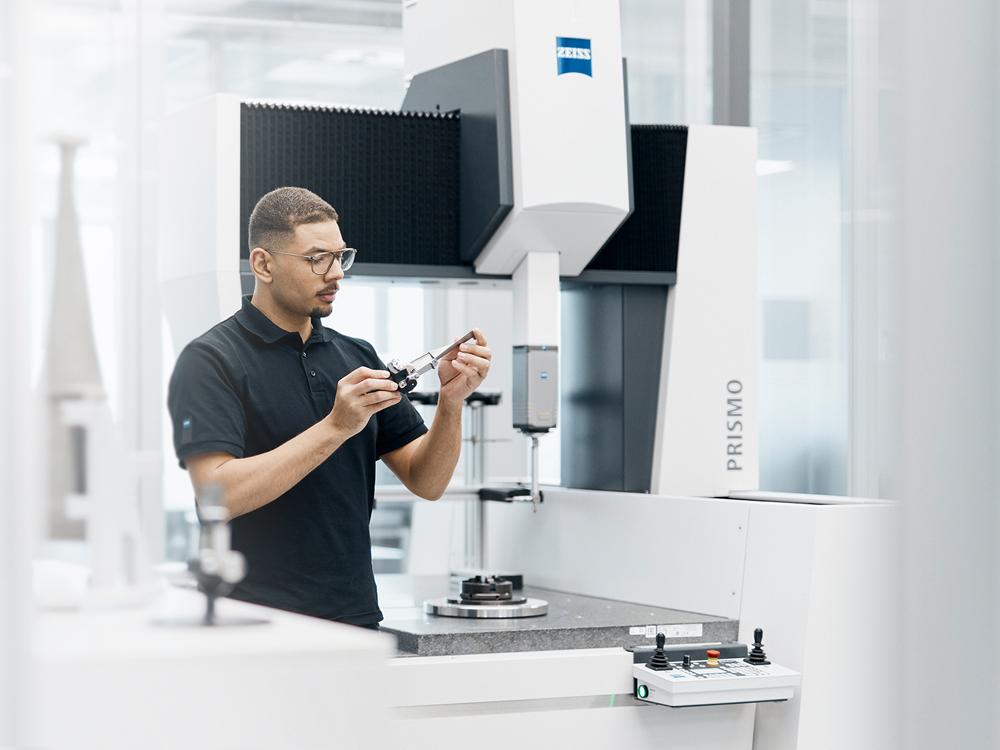

Computer-Aided Accuracy (CAA)
Best results guaranteed
Computer-Aided Accuracy (CAA) corrects all static and dynamic influences on the device to achieve maximum accuracy even during high-speed scanning. The faster calibration and proven long-term stability of the concept ensure improved economic efficiency.

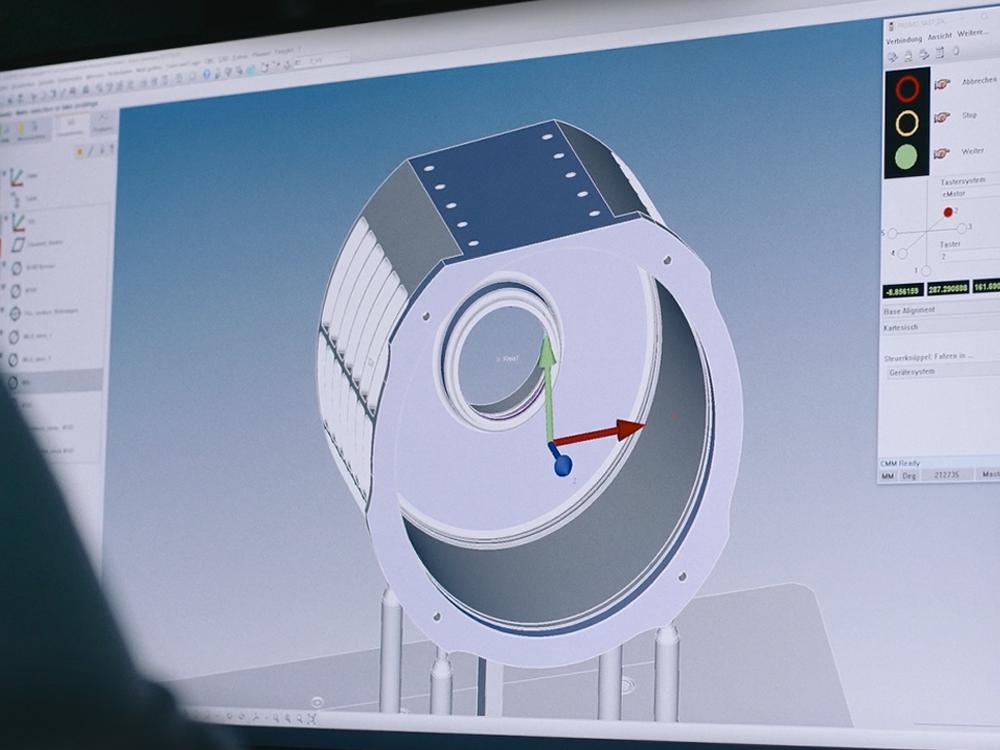

ZEISS VAST Performance package
For maximum productivity
The ZEISS VAST Performance package consists of ZEISS VAST Navigator and ZEISS FlyScan. ZEISS VAST Navigator uses automatically generated measurement strategies to shorten the travel path while maintaining accuracy and selecting the optimum scanning parameters. With FlyScan, interrupted contours can be measured without loss of speed or accuracy, with a reduction in measuring time of up to 70% compared to using standard programming with standard parameter selection.

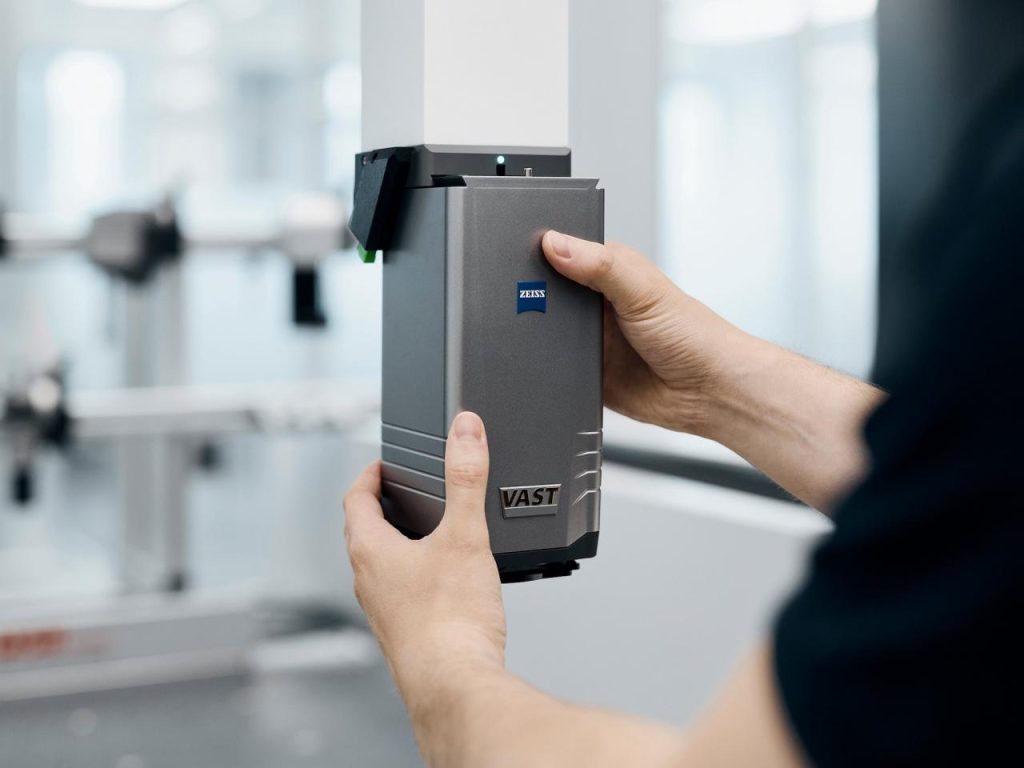

Multi-application probe system technology (ZEISS mass)
Maximum flexibility through probe diversity
ZEISS PRISMO is equipped with ZEISS mass technology as standard. The CMM is therefore compatible with a wide range of ZEISS probes in order to be able to perform a wide variety of measuring tasks – whether optical or tactile – on the same machine.

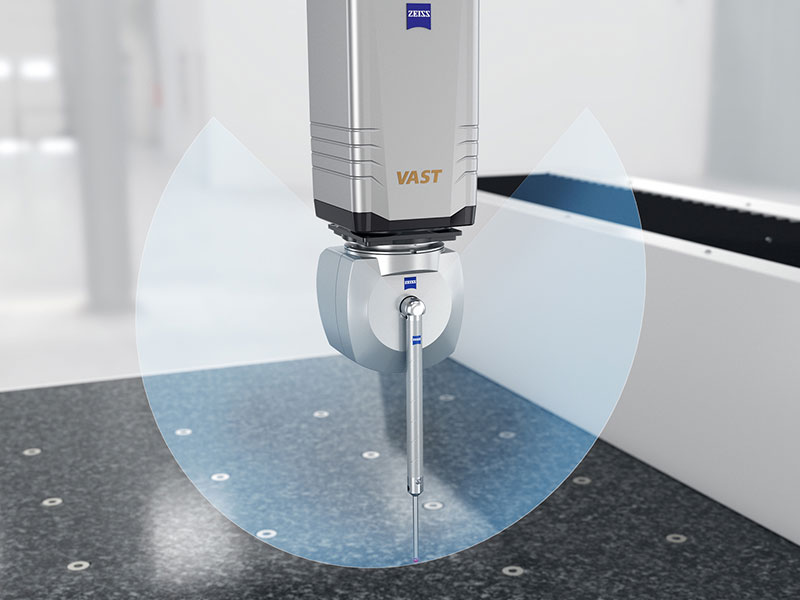

ZEISS Articulating Stylus
Time and cost savings
ZEISS Articulating Stylus can reduce the number of stylus combinations and system changes. In addition, measurement is possible in all orientations – with probes up to 200 mm long and stylus tip diameters from 1 mm. Each angle position between +135 ° and -135 ° can be freely and continuously selected after calibration.
ZEISS PRISMO
Different sizes for a wide range of applications
ZEISS PRISMO is available in different sizes. From the smallest version with a measuring range of 700 x 900 x 500 mm to the largest version of this coordinate measuring machine with a measuring range of 1600 x 4200 x 1400 mm.
