Precision in production environments

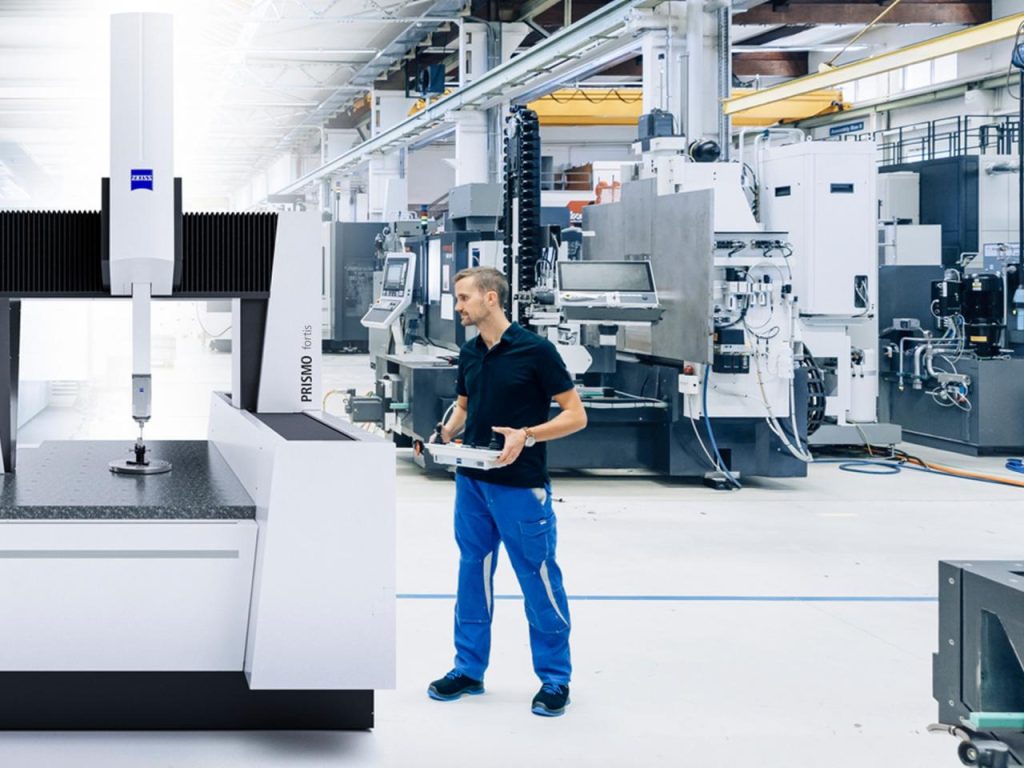

Thanks to optimized materials and newly developed corrections, ZEISS PRISMO fortis guarantees maximum precision at temperatures of up to 40°C. The coordinate measuring machine can therefore also be used directly in production environments. By using the optional ZEISS VAST Rotary Table (ZVR), the measuring times for certain applications can be significantly reduced due to the faster movements of the rotary table.

Use in production environments at temperatures up to 40°C
Definition of the rotary table axis by ZEISS VAST Rotary Table Axis (ZVRA)
ZEISS CMM Acceleration Mode for Aerospace Applications as an option

High degree of precision in production environments
Maximum temperature gradient for measurements up to 40°C

Thanks to the consistent further development of the individual components, ZEISS PRISMO fortis is suitable for use in production environments. The newly developed corrections including additional temperature sensors in the granite plate, the vibration-damping pneumatic damping system and the floating ZERODUR® scales with a resolution of 80 nm guarantee temperature stability up to 40°C. The measuring device is therefore suitable for use in production environments with temperature gradients of up to 5 K/d, 2 K/h and 1 K/m – but can also be used in a quality laboratory if required.

Definition of the rotary table axis by ZEISS VAST Rotary Table Axis (ZVRA)

For greater accuracy, safety and productivity

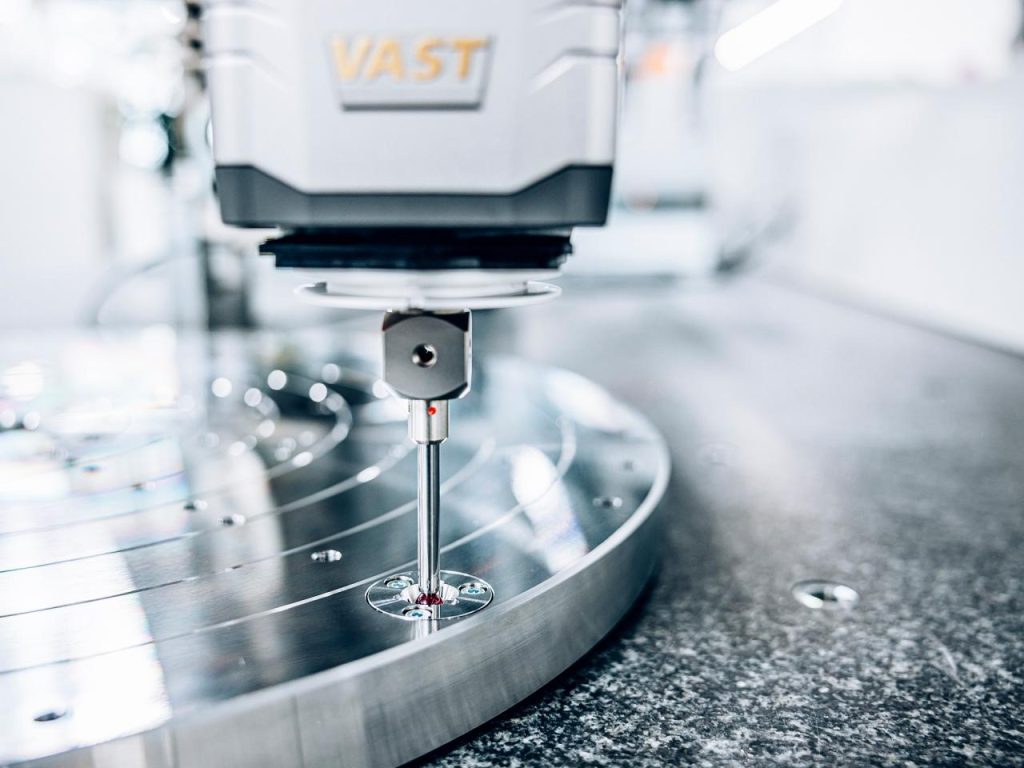

ZEISS VAST Rotary Table Axis (ZVRA) defines the rotary table axis and thus lays the foundation for accurate and reliable measurements. Where previously six discrete-point measurements were required for axis definition, taking up to 60 seconds, ZVRA now performs a single continuous movement with a 75% reduction in set-up time. The new method differs in that the probe moves on a rail at a constant height. This means that the entire process consists of a single uniform movement, with no unnecessary travel paths. ZVRA offers a time saving of 75% and thus favors a more frequent definition of the rotary table axis. This ensures even greater accuracy, safety and productivity.

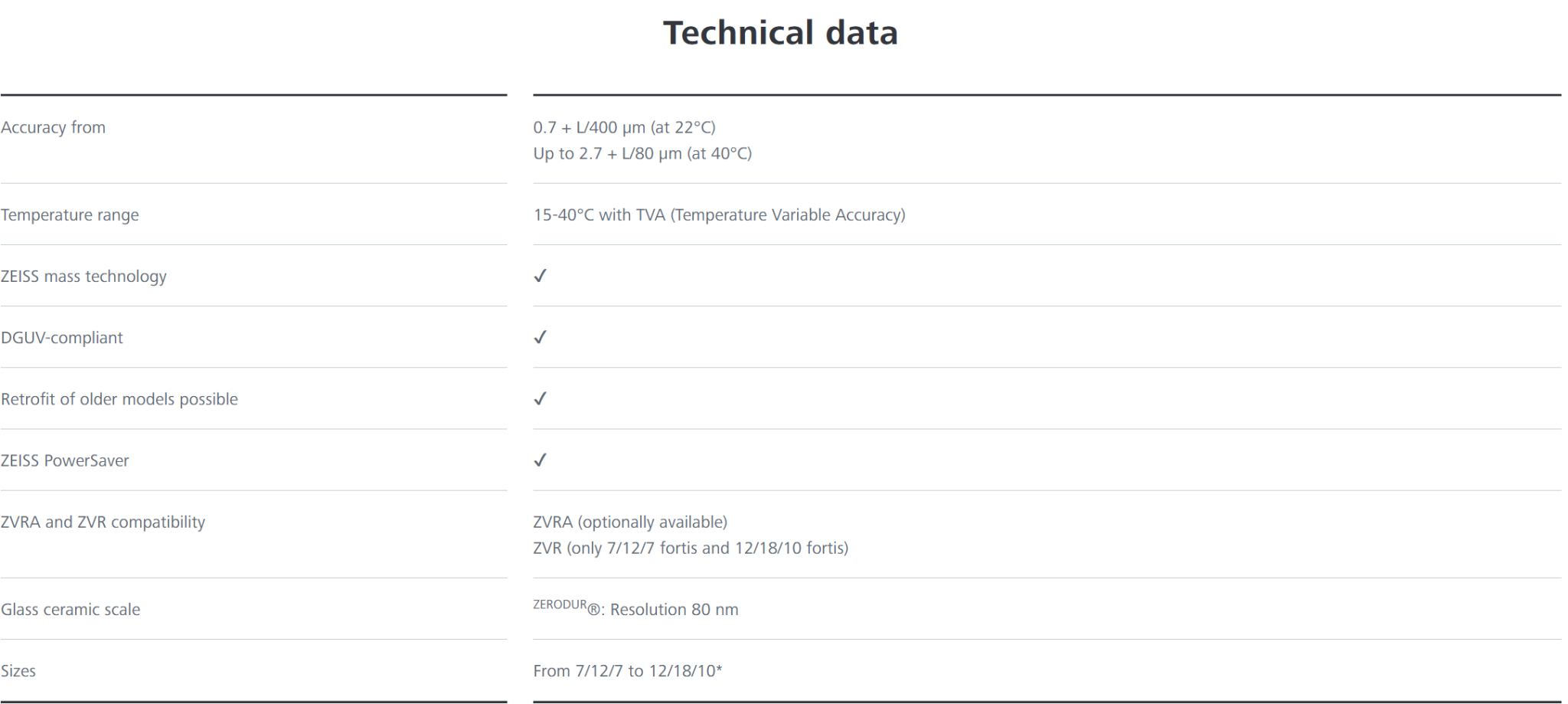

ZEISS PRISMO fortis
Different sizes for a wide range of applications

ZEISS PRISMO fortis is available in various sizes. From the smallest version with a measuring range of 700 x 1200 x 700 mm to the largest design of this coordinate measuring machine with a measuring range of 1200 x 1800 x 1000 mm. The 12/18/10 configuration is available with or without the U-shaped granite table.
