ZEISS PRISMO verity
The new standard
ZEISS PRISMO verity delivers results with a length measurement error from just 0.7 + L/400 µm and is the leading CMM in its class thanks to improved form measurement values. The coordinate measuring machine can be used for a wide range of applications where a high degree of accuracy is required and is suitable for class 3 measuring rooms in accordance with VDI/VDE 2627.
- Outstanding accuracy thanks to improved values
- Suitable for class 3 measuring rooms
- High-resolution ZERODUR® scales
- Available with RT-AB select for more accurate measurement of rotationally symmetrical components

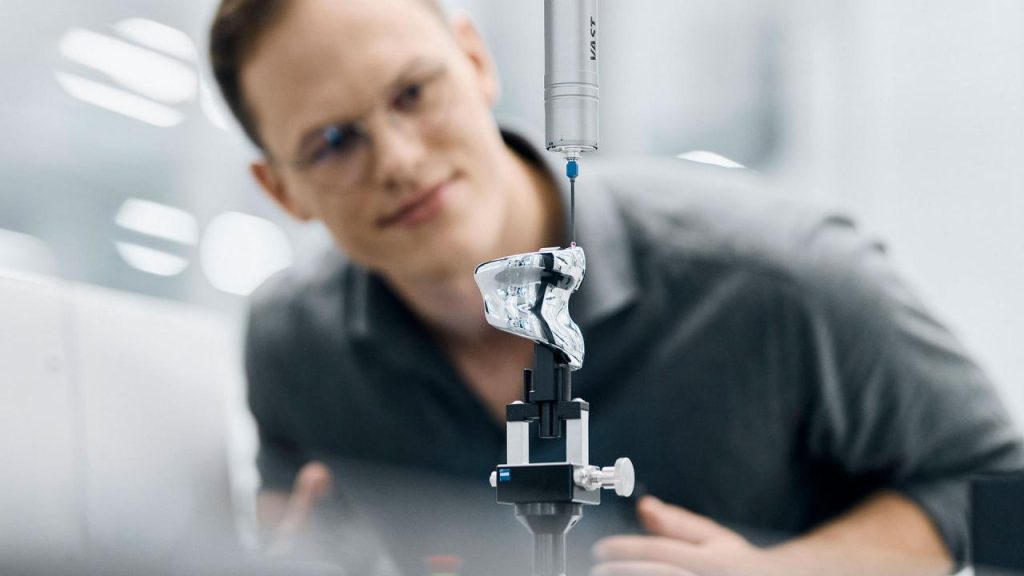

Outstanding accuracy thanks to improved values
ZEISS PRISMO verity impresses with improved form measurement values (also thanks to the ZEISS RT-AB select option for rotationally symmetrical components) and achieves measuring accuracy from 0.7 + L/400 µm. By using ZEISS VAST navigator technology, the maximum measuring speed is set automatically – for precise measurements in a short time.

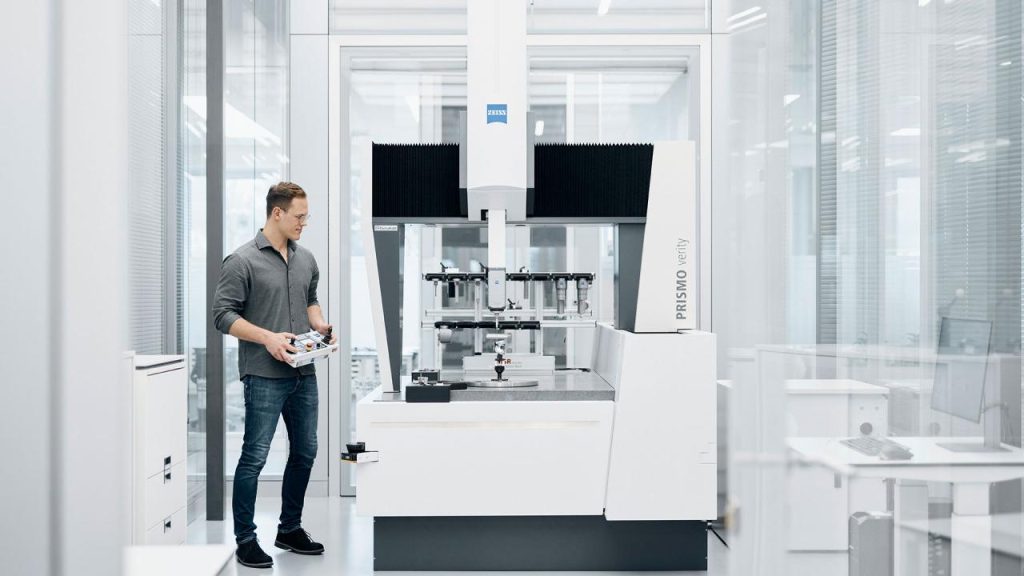

Suitable for class 3 measuring rooms
By adapting the CMM type, ZEISS PRISMO verity meets the requirements for class 3 measuring rooms in accordance with the VDI/VDE 2627 standard. All necessary measurements can therefore be carried out in an air-conditioned chamber at 19 – 22°C.
ZEISS PRISMO verity

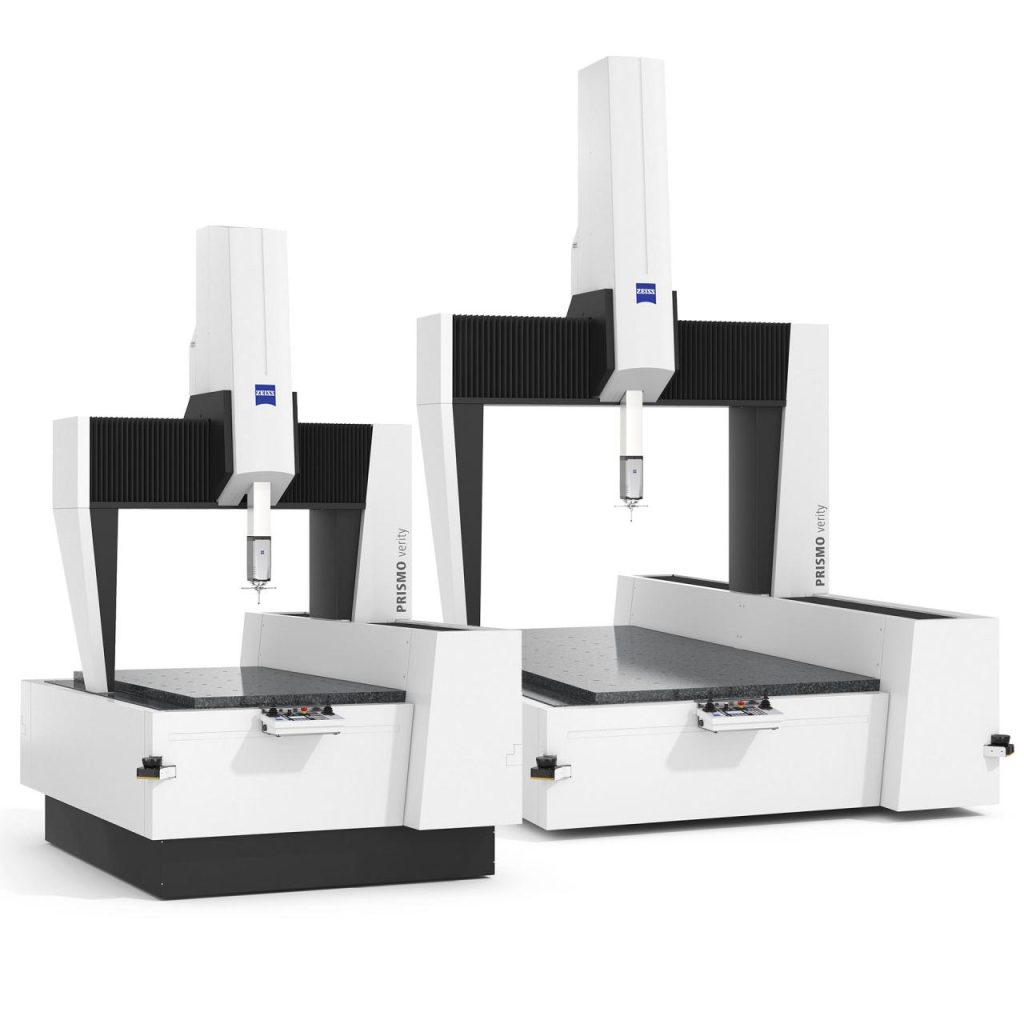

Different sizes for a wide range of applications
ZEISS PRISMO verity is available in various sizes. From the smallest version with a measuring range of 700 x 900 x 500 mm to the largest design of this coordinate measuring machine with a measuring range of 1200 x 1800 x 1000 mm.
